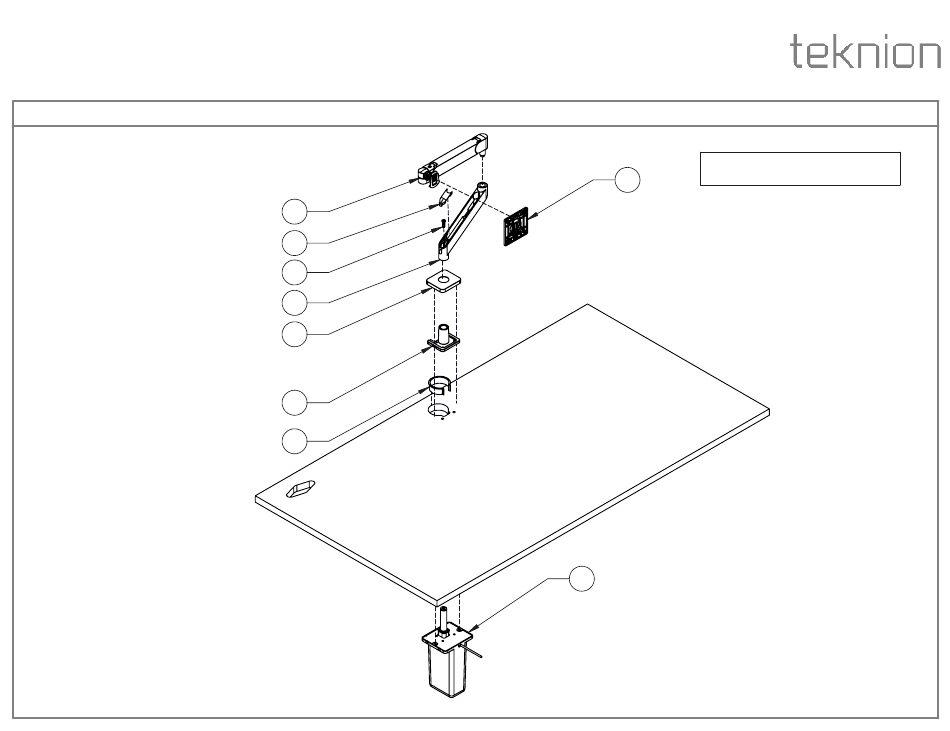

- Page 1 Installation Guides Date: May 2019 Page: 1 of 10 Section: CEREBRO, ELECTRICS FOR IC COM_602 Rev.00 Swerv Integrated Cerebro Assembly (YMSZ) NOTE: To optimize Cerebro assets, refer to Teknion Navigate User Guide.
- Page 2 complements Installation Guides Date: May 2019 Page: 2 of 10 Section: CEREBRO COM_602 Part & Product Identification ITEM PART ITEM PART PREVIEW DESCRIPTION QTY. PREVIEW DESCRIPTION QTY. NUMBER NUMBER MOTOR N09- CABLE PVC 8402\05 FREE, 500MM SWERV IC N09- ACTUATOR 9181 CEREBRO B02-0769...
- Page 3 complements Installation Guides Date: May 2019 Page: 3 of 10 Section: CEREBRO COM_602a Part & Product Identification ITEM ITEM PREVIEW DESCRIPTION PART NUMBER QTY. PREVIEW DESCRIPTION PART NUMBER QTY. SWERV IC CEREBRO STATIC ARM A25-0650 BASE N09-8612 CASTING CASTING ASSEMBLY M8 X 1.25, 25mm LOW E01-1312...
- Page 4 complements Installation Guides Date:May 2019 Page: 4 of 10 Section: CEREBRO COM_602 SECURE CEREBRO ACTUATOR KIT PLACE LARGE CABLES AND GROMMET STEP 1: Place the Actuator underneath the worksurface using the screws provided. STEP 2: Before placing grommet cap, run large wires through the grommet hole. Then, place grommet cap.
- Page 5 complements Installation Guides Date: May 2019 Page: 5 of 10 Section: CEREBRO COM_602 SECURE BASE CASTING PLACE CASTING COVER STEP 4: Using screws provided, secure the Base Casting into place. STEP 5: Place Casting Cover over top of the Base Casting.
- Page 6 complements Installation Guides Date: May 2019 Page: 6 of 10 Section: CEREBRO COM_602 ASSEMBLE SWERV IC STATIC ARM CASTING SECURE DYNAMIC ARM ASSEMBLY STEP 6: Using the screw, secure the Swerv IC Static Arm Casting. Tighten the screw with STEP 7: Connect the Dynamic Arm Assembly to the arm casting. the allen key.
- Page 7 complements Installation Guides Date: May 2019 Page: 7 of 10 Section: CEREBRO COM_602 INSTALL VESA PLATE MOUNT MONITORS STEP 8: Fasten VESA Plate onto Monitor. STEP 9: Mount Monitor on the Swerv Arm.
- Page 8 complements Installation Guides Date: May 2019 Page: 8 of 10 Section: CEREBRO COM_602 ADJUST ARM ADJUST ARM NOTE: Adjust arm so that monitor floats at all heights. Increase (+) lift strength by turning NOTE: Adjust arm so that monitor floats at all heights. Decrease (-) lift strength by turning the allen key counter clockwise if monitor does not stay up when raised.
- Page 9 complements Installation Guides Date: May 2019 Page: 9 of 10 Section: CEREBRO COM_602 FINE ADJUSTING ARM INSTALL WIRE AND WIRE MANAGEMENT NOTE: For more detailed balancing, tighten bottom screw in 1/2 turn increments to provide STEP 8: Install display and power cable as shown above. Run Display Cords through Static a specific balance.
- Page 10 COM_602 CABLE MANAGEMENT & PROGRAMMING FOR CEREBRO NOTE: Connect table legs to channels 1 & 4 and leave channel 3 for the monitor arm actuator. Refer to Teknion Navigate User Guide for details. Channel 4 Channel 3 NOTE: Connect the cables to the control box by connecting the Monitor Arms (YMSZ) to Channel 3 and connecting the remaining cables for YCH to the appropriate Channels (1 & 4) as shown...
