Teknion interpret Installation Manuals

Double sided begining and finish frames curve leg
Hide thumbs Also See for interpret:
Table of Contents

Advertisement

Quick Links

Download this manual
interpret
Section:
Description:

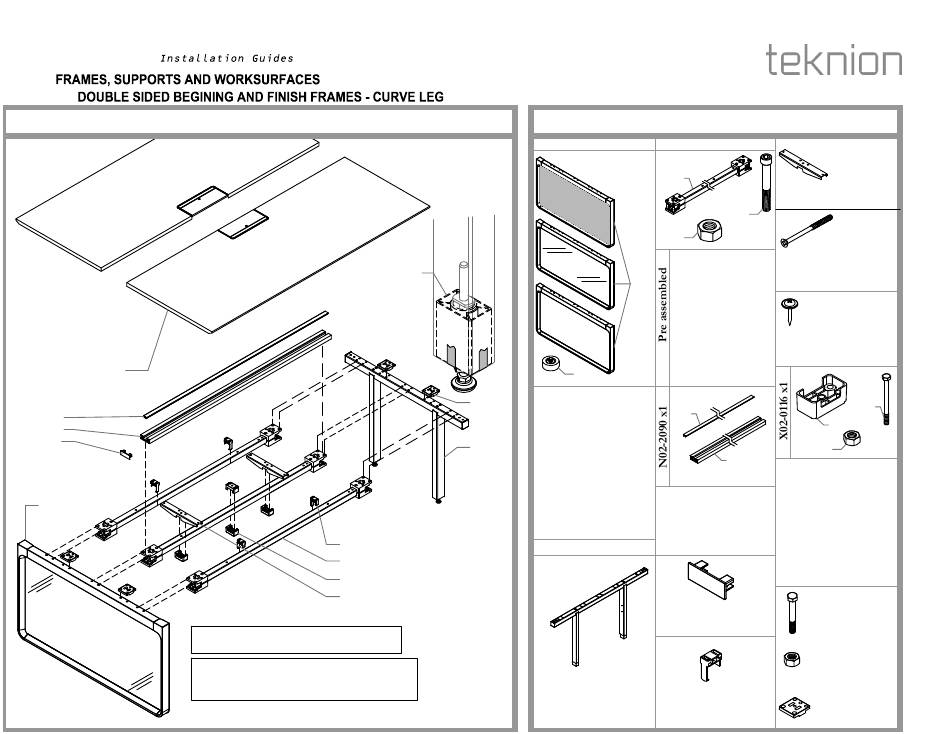

Double- Sided Beginning Frame (WWSDB)
Power Cut Out
Worksurface
(WWWRP) x2
D2
D1
E
A1
Leveler Cover is
located inside
Leg Assembly
and secured in
place with tape.
F
C1
J1
G
78" Frame Assembly shown with Glass
Infill Curve Leg
NOTE: Quantities of Front Standoff (F),
Spacer (K3) and Hardware (I), (K1) & (K2)
change with the length of the Frame.
For Customer Support please contact
product.support@teknion.com
Part and Product Identification
Pre assembled
OR
A1
OR
A2
K3
A1 -Curve Leg with
Wood Infill
(N02-2365) x1
or Curve Leg with
B
Glass Infill
(N02-2349) x1
or Curve Leg Open
(N02-2363) x1
A2 - Curve Leg Leveler
Add-on Puck
N02-2053 x1
B - Mid Gable Assembly
(N02-2053) x1
Date:
Feb 2017
INT_002b
N02-3688 x3
G - Cantilever
Bracket
C1
(A16-4882\12)
x2
C2
C3
H -1/4-20x3-1/2
Flat Hd Mach,
C1 - Transverse Beam
Quadrex
Sub-Assembly
(E01-0771) x4
(N02-3688) x1
C2 - 5/16-18x2.5 Soc.
I -#10x0.875" LG
Head Cap Screw
Quad, Pan Wash
(E01-0756) x8
(E07-0077)
C3 - 5/16-18 Hex
48"-72" x4
Nut 1/2 A/F
78"-96" x8
.265 Thick
(E01-0755) x8
D2
J1
J3
D1
J1 -Worksurface Spacer
Block
(A25-0547)x4
D1 -Central Rail Assy
J2 -5/16-18x3.75 Socket
(A21-0888\98) x1
Head Cap Screw
D2 -Central Rail Cap
(E01-0799) x10
(A23-4058) x1
J3 -5/16-18 Hex Nut
1/2 A/F.265 Thick
(E01-0755) x10
K1 -5/16-18 x2
E -Central Rail End Cap
1/2 LG, Hex Zinc
(N02-2149) x1
(E01-1136)
78"-96" x4
K2 - 5/16-18 Hex
Nut, 1/2 A/F.265
(E01-0755)
F -Front Standoff
78"-96" x4
K3 - Spacer Bkt
(B02-0658) x2 or 4
(A25-0548)
78"-96" x4
Page No:
1 of 15
Rev. No: 2
J2
