Installation Guides
Section:
WORKSURFACES & COUNTERTOPS
Description:
FLUSH END AND FLUSH END BRACKET
Flush End (TLFE), Flush End Bracket (TLMK3F)
D
E2
E1
C
A
Date:
TST_251

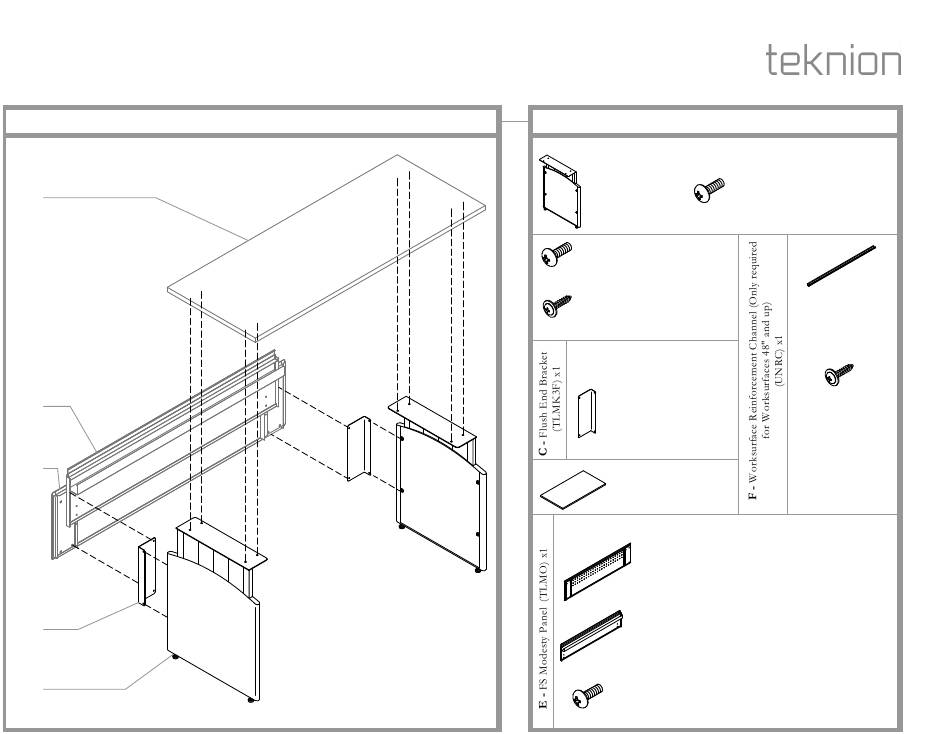

Part and Product Identification
A2 - 1/4" - 20 x 5/8" Mach Scr,
A1 - Flush End
Black, Quad, Truss
(TLFE) x1
(E01-0113) x6
B1 - 1/4" - 20 x 5/8" Machine
Screw Quad. Pan Washer
(E01-0098) x4
B2 - #10 x 0.875" LG. Screw,
Quad. Pan Washer
(E01-0077) x4
C - Flush End Bracket
(A15-9257) x1
D - Worksurface
(TWRR) x1
E1 - FS Main Modesy Panel
Sub-Assembly
(N30-0011\X) x1
E2 - FS Wire Tray Modesty Panel
(N30-0008\X) x1
E3 - 1/4" - 20 x 5/8" Mach Scr,
Black, Quad, Truss
(E01-0113) x4
May 2018
Page No:
4 of 4
Rev. No: 01
F1 - Reinforcement
Channel
(A15-6956) x1
F2 - #10 x 0.875"
LG. Screw,
Quad. Pan
Washer
(E01-0077)
xqty. varies
