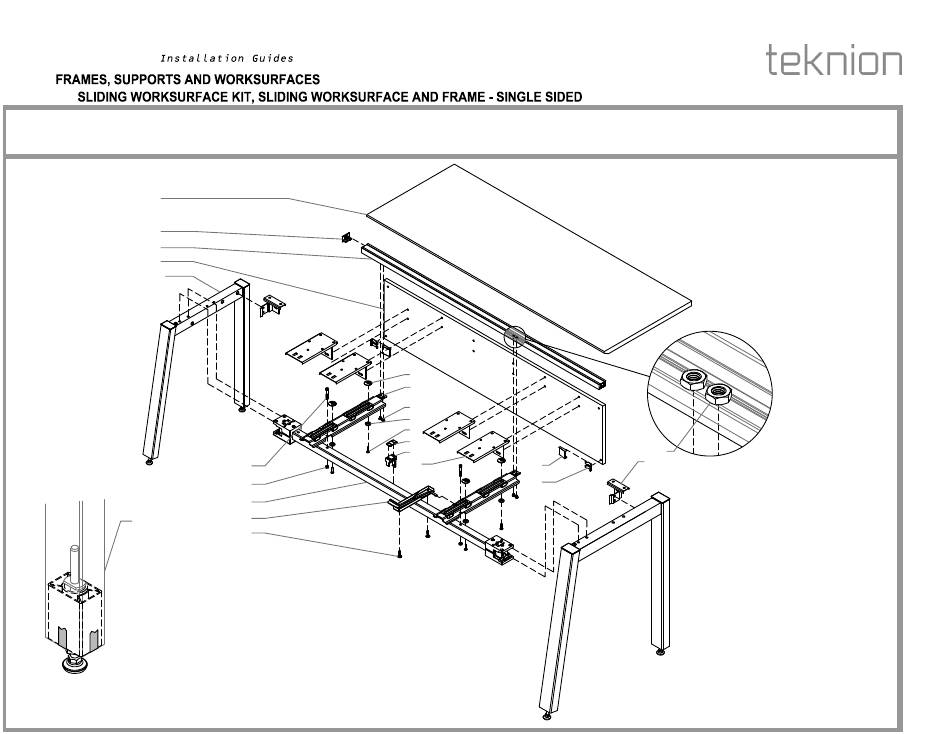

Teknion interpret Assembly

Hide thumbs Also See for interpret:

Advertisement

Quick Links

Download this manual
interpret
Section:
Description:
T
F
E
G
A1
Leveler Cover is
located inside Leg,
assembled and
secured in place
with tape.
For Customer Support please contact
product.support@teknion.com
Sliding Worksurface Kit (WWSSL), Sliding Worksurface (WWWRS),
Single Sided Complete Frame (WWSSC)
P5
P6
B
Q1
Q2
P2
P1
P8
P3
P4
P7
D
L
I
H
Date:
Feb 2017
INT_005b
P9
S
Angled Leg Frame shown
Page No:
1 of 19
Rev. No: 3
