interpret
Section:
Description:

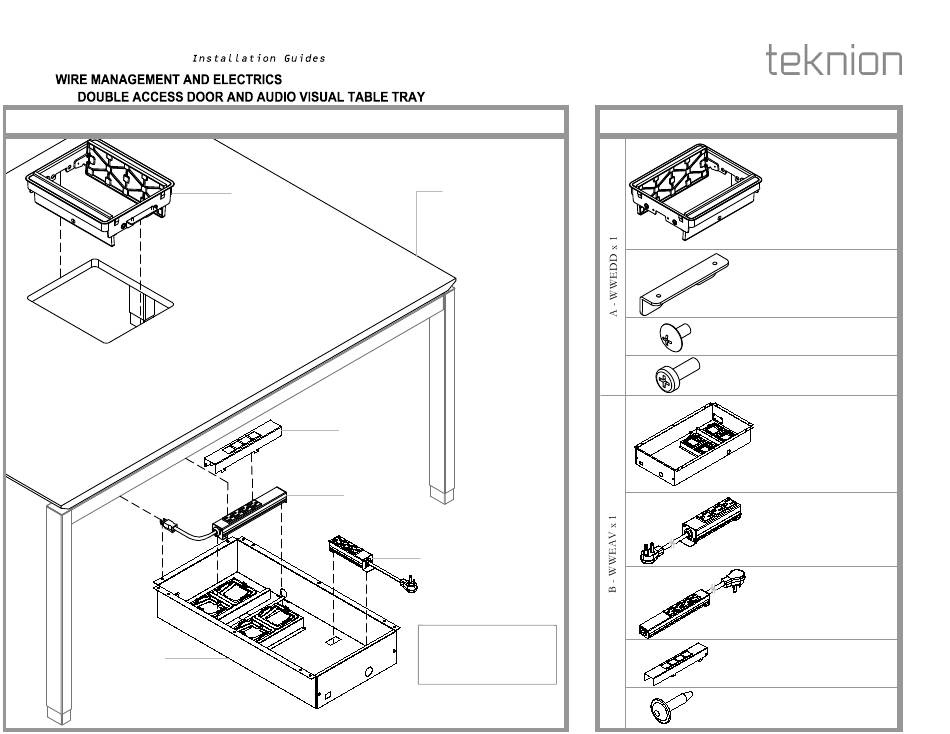

Double Access Door (WWEDD) & Audio Visual Table Tray (WWEAV)
B1
A
B4
B3
For Customer Support please contact
product.support@teknion.com
WWTWK Shown as
Example
B2
Please Refer to CLUBtalk
Installation Guide No. 602b
for CLUB CONNECT
TechnologyInformation.
Date:
Feb. 2017
INT_410
Part and Product Identification
A1 - Double Access Door
(WWEDD) x 1
A2 - Access Door Bracket
(A16-1336) x 2
A3 - 8-32 x 5/16 Machine
Screw (E01-0837) x 4
A4 - 10-32 x 1/2" Machine
Screw (E01-0770) x 4
B1 - Clubtalk Grommet
Enclosure Subassembly
(N09-6286) x 1
B2 - Slim Power Bar
(YEPDCH) x 1
B3 - Compact Power Bar
(YEPS) x 1
B4 - Power Bar Shroud,
Clubtalk
(A16-1970) x 1
B5 - #10 x 0.875" LG. Screw,
Quad. Pan Washer
(E07-0077) x 4
Page No:
1 of 8
Rev. No: 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the interpret and is the answer not in the manual?

Questions and answers

Related Manuals for Teknion interpret

Summary of Contents for Teknion interpret

  • Page 1 Section: Date: Feb. 2017 Page No: 1 of 8 Description: INT_410 Rev. No: 1 Double Access Door (WWEDD) & Audio Visual Table Tray (WWEAV) Part and Product Identification WWTWK Shown as Example A1 - Double Access Door (WWEDD) x 1...
  • Page 2 Section: Date: Feb. 2017 Page No: 2 of 8 Description: INT_410 LOWER ACCESS DOOR TO WORKSURFACE FASTEN BRACKET Underside View STEP 1: Lower Double Access Door into the cut out of the Table. STEP 2: Fasten Bracket to Double Access Door with the Screws provided.
  • Page 3 Section: Date: Feb. 2017 Page No: 3 of 8 Description: INT_410 FASTEN ACCESS DOOR ASSEMBLY REMOVE POWER BAR SHROUD hooks hooks Underside View STEP 3: Fasten Bracket with screws provided to underside of Table. STEP 4: Unhook Power Bar Shroud as shown above.
  • Page 4 Section: Date: Feb. 2017 Page No: 4 of 8 Description: INT_410 INSTALLNG COMPACT POWER BAR STEP 5: Place the Power Bar into the assembly as shown above.
  • Page 5 Section: Date: Feb. 2017 Page No: 5 of 8 Description: INT_410 INSTALLING SLIM POWER BAR INSTALLING POWER BAR hooks hooks hooks hooks STEP 5: Place Slim Power Bar into the assembly as shown above. STEP 6: Slide the hooks on the Power Bars into the Clubtalk Grommet Enclosure as shown...
  • Page 6 Section: Date: Feb. 2017 Page No: 6 of 8 Description: INT_410 CONNECT THE POWER BARS Underside View STEP 7: Plug the Compact Power Bar in the Slim Power Bar.
  • Page 7 Section: Date: Feb. 2017 Page No: 7 of 8 Description: INT_410 FASTEN ACCESS DOOR ASSEMBLY TO WORKSURFACE Pilot Holes Doors Underside View NOTE: Check the doors operation by opening and closing. Adjust position of Underpan if necessary. STEP 8: Align Pilot Holes from underside of Worksurface to holes of Underpan. Place Underpan on underside of worksurface so 4 Sensor Holders and inserted into Access Door Assembly and...
  • Page 8 Section: Date: Feb. 2017 Page No: 8 of 8 Description: INT_410 FASTEN ACCESS DOOR ASSEMBLY TO WORKSURFACE Underside View STEP 9: Fasten Underpan with screws provided to underside of Worksurface.
