height-adjustable bench
Section:
ELECTRICS
Description:
NAVIGATE BASE FEED INSTALLATION

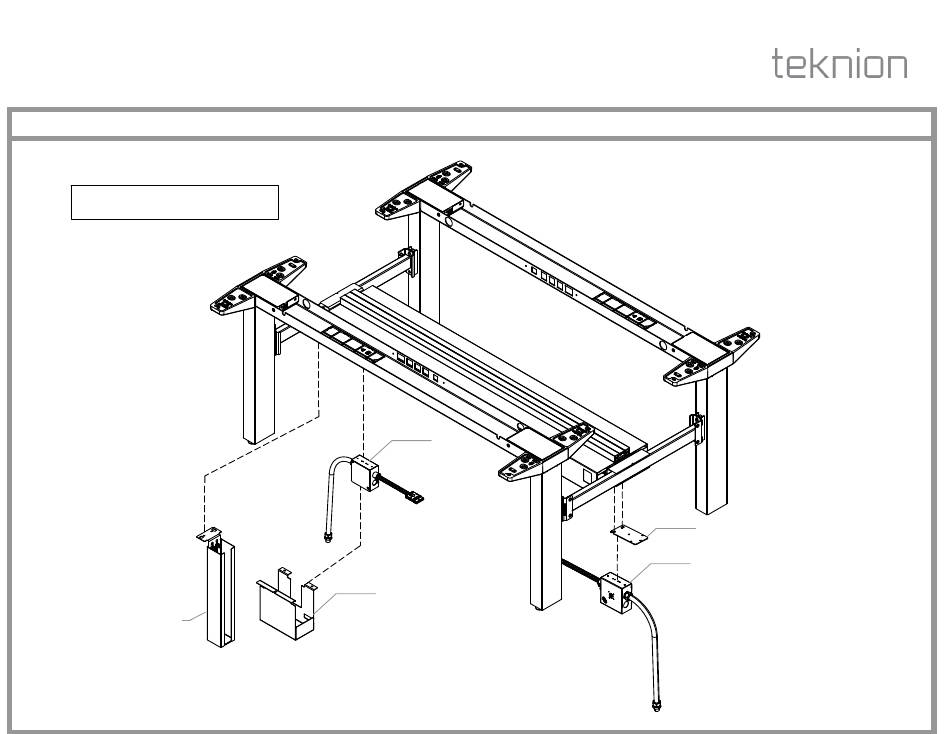

Navigate Base Feed (HNBEBF), Base Feed Cover (HNBEBC), Chicago Base Feed (HNBEBFCH), Split Base Feed (HNBEBFS
NOTE: Navigate Height Adjustable Base is
shown for reference.
F1
Installation Guides
C1
F2
Date:
May 2022
Page No:
HABN_321c
Rev. No: 02
B2
B1
1 of 10
Advertisement
Related Manuals for Teknion HNBEBF
Summary of Contents for Teknion HNBEBF
- Page 1 May 2022 Page No: 1 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c Rev. No: 02 Navigate Base Feed (HNBEBF), Base Feed Cover (HNBEBC), Chicago Base Feed (HNBEBFCH), Split Base Feed (HNBEBFS NOTE: Navigate Height Adjustable Base is shown for reference.
- Page 2 D - Chicago Base Feed - End Condition (HNBEBFCH_E) x1 A1 - Base Feed w/ Bracket D1 - Chicago Base Feed w/ (HNBEBF-END) x1 Bracket (HNBEBF-END) x1 F2 - Cover - Base Feed Box (MPA15-E779) x 1 D2 - #8x...
- Page 3 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 3 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c INSTALL SPLIT BASE FEED INSTALL BOX COVER (OPTIONAL) NOTE: Cable Channel is hidden for illustration purposes NOTE: Connect the Base Feed to Power Harness STEP 1a: Align the Split Base Feed Bracket with Pilot Holes and Fasten it as shown STEP 1b: Install Box Cover.
- Page 4 HABN_321c INSTALL BASE FEED ATTACH BASE FEED & INSTALL CABLE TRAY NOTE: Chicago Base Feed (HNBEBFCH) is similar to Base Feed(HNBEBF) NOTE: Power Harness should always be a 24" Linking Harness NOTE: Flip Cable Tray over and install to Frame Cable Tray to be installed AFTER...
- Page 5 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 5 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c INSTALL BASE FEED COVER LOOSEN SCREW STEP 4: Fasten Bracket to underside of Stretch bar using hardware kit for HAB Base Feed STEP 5: Loosen screw to adjust the height of the cover bracket.
- Page 6 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 6 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c ADJUST COVER TIGHTEN SCREW STEP 6: Adjust cover to level onto finished floor. STEP 7: Tighten screw to secure base feed to table.
- Page 7 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 7 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c INSERT CABLE INTO BASE FEED COVER STEP 8: Insert Base Feed cable into Base Feed Cover as shown on illustration above.
- Page 8 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 8 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c ORIENTATION OF BASE FEED PARALLE AND VERTICAL ORIENTATION NOTE: Parallel Orientation NOTE: Vertical Orientation REMOVE SCREWS FROM PLATE STEP 9: Remove screws to loosen mounting plate for base feed STEP 10: Reposition the mounting plate to parallel or vertical orientation...
- Page 9 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 9 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c INSTALL MID BASE FEED NOTE:Wire Channel and other electrics are Hidden for illustration purposes STEP 11: Fasten Middle Bracket and Base Feed. Install assembly to Stretcher bar as shown. Installation for Chicago Power Module is Similar.
- Page 10 height-adjustable bench Installation Guides Section: ELECTRICS Date: May 2022 Page No: 10 of 10 Description: NAVIGATE BASE FEED INSTALLATION HABN_321c NOTE NOTE: Wire Management NOTE: M-Clips STEP 12: Installer is to determine the layout for the data, wire management brackets and m-clips in the hatched area...
