interpret
Installation Guides
Section:
FRAMES, SUPPORTS AND WORKSURFACES
Description:
120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE
120° Frame (WWSTW), Recessed Mid Gable (WWSMD), 120° Wire Gap
Worksurface (WWWTW), 120° Power Cut-Out Worksurface (WWWTC)
NOTE: Refer to INT_404
for Power Door (WWEDR)
installation.
Leveler Cover is
located inside Leg,
assembled and
secured in place
with tape.
NOTE: Straight Legs layout shown.
A
G
F
C
B
D
E
A
Date:
Sept 2022
INT_012a

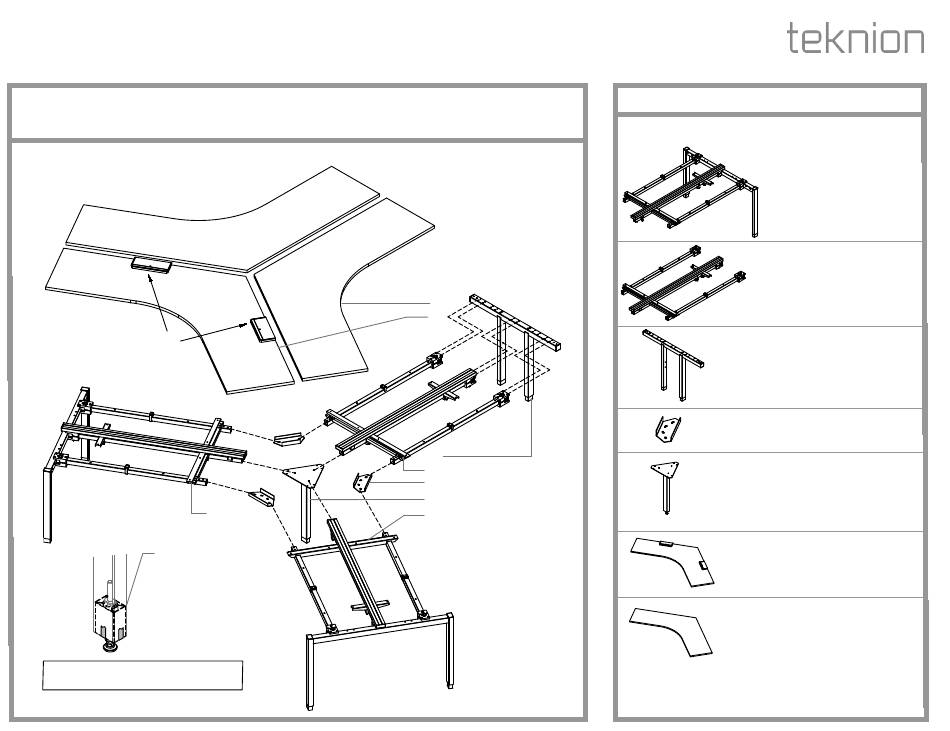

Part and Product Identification
A - 120° Frame w/Legs x2
See page INT_012a_G02
for parts identification
B - 120° Frame without Legs x1
See page INT_12a_G03
for parts identification
C - Recessed Mid Gable
(WWSMD) x1
See page INT_012a_G03
parts identification
D - Connect Bracket
(A16-1383) x3
E - Center Leg Assembly
(N02-2589) x1
F - 120° Power Cut-Out
Worksurface
(WWWTC) x1
G - 120° Wire Gap
Worksurface
(WWWTW) x2
1 of 14
Page No:
Rev. No: 3
Advertisement
Related Manuals for Teknion interpret WWSTW
Summary of Contents for Teknion interpret WWSTW
- Page 1 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 1 of 14 Page No: Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a Rev. No: 3 Part and Product Identification 120° Frame (WWSTW), Recessed Mid Gable (WWSMD), 120° Wire Gap Worksurface (WWWTW), 120°...
- Page 2 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 2 of 14 Page No: Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a Rev. No: 3 120° Frame with Legs ( x2 ) - Straight or Angled Part and Product Identification A12 - Center Wing Beam Assy A - End Leg Assy...
- Page 3 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 3 of 14 Page No: Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a Rev. No: 3 120° Frame without Legs (x1), Recessed Mid-Gable (WWSMD)x1 Part and Product Identification B1 -Center Rail B13 -Cross Bar Extrusion Cap...
- Page 4 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 4 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a REMOVE SCREWS - END GABLE INSTALLATION DETAIL End Gable A8, A12 Connections STEP 1: Remove Screws and Nuts from Beams required for End Gable installation. Save them Side View for future steps.
- Page 5 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 5 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a ATTACH CENTER BEAM TO END GABLE DETAIL NOTE: There are 2 End Gables required for this layout. End Gable Connection Side view STEP 2: Attach longer, Center Beams to End Gables using sets of holes in the middle, as STEP 3: Fasten with previously removed Screws and Nuts, do not tighten.
- Page 6 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 6 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a PREPARATION FOR MID GABLE CONNECTION DETAIL Save to use in next steps . B7, B10 B4, B8 Gable B4, B8...
- Page 7 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 7 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a ATTACH CENTER BEAM TO MID GABLE FASTEN STEP 5: Attach Center Beam Assembly to the Mid Gable. Attach End Caps making sure lids STEP 6: Fasten with Screws and Nuts saved in previous step.
- Page 8 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 8 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a CONNECT TO CENTER LEG ASSEMBLY CONNECT WING BEAM TO GABLES End Gable Assembly Mid Gable Mid Gable Assembly connection End Gable Assembly...
- Page 9 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 9 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a JOIN WING BEAMS TOGETHER ATTACH CROSS BARS STEP 9: Remove Screws and Nuts from the ends of the Wing Beams. Line up Connecting STEP 10: Line up middle holes on Cross Bars with holes on beams as shown and place them Brackets with indicated holes on Wing Beams.
- Page 10 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 10 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a CANTILEVER AND SPACER PLACEMENT CENTER RAIL ASSEMBLY NOTE: For this example there is only 1 End Cap for Center Rail with Mid Gable.
- Page 11 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 11 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a INSTALLATION ON FRAME WITH END GABLE INSTALLATION ON FRAME WITH MID GABLE End Cap this side ONLY Gable End Cap, both sides STEP 14: Place Center Rail on the top of middle Transverse Beam inserting each Screws into...
- Page 12 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 12 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a LEVEL INSTALL WORKSURFACES AND ALIGN Underside view STEP 16: Level whole assembly, lock each leveler and remove tape so Leveler Cover can slide STEP 17: Align applicable inserts on the Worksurfaces with holes in the Clamp Brackets.
- Page 13 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 13 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a WORKSURFACES ALIGNMENT DETAILS TIGHTEN SCREWS AND NUTS Insert to be used with Mid Gable connection Insert to be used with End Gable connection Underside view...
- Page 14 interpret Installation Guides Section: FRAMES, SUPPORTS AND WORKSURFACES Date: Sept 2022 Page No: 14 of 14 Description: 120° FRAMES, 120° WORKSURFACES, RECESSED MID GABLE INT_012a FASTEN WORKSURFACES TO THE FRAME DETAIL UNDERSIDE VIEW STEP 20: Use Wood Screws with washer head to attach Worksurfaces to Cross Bars and Cantilevers.
