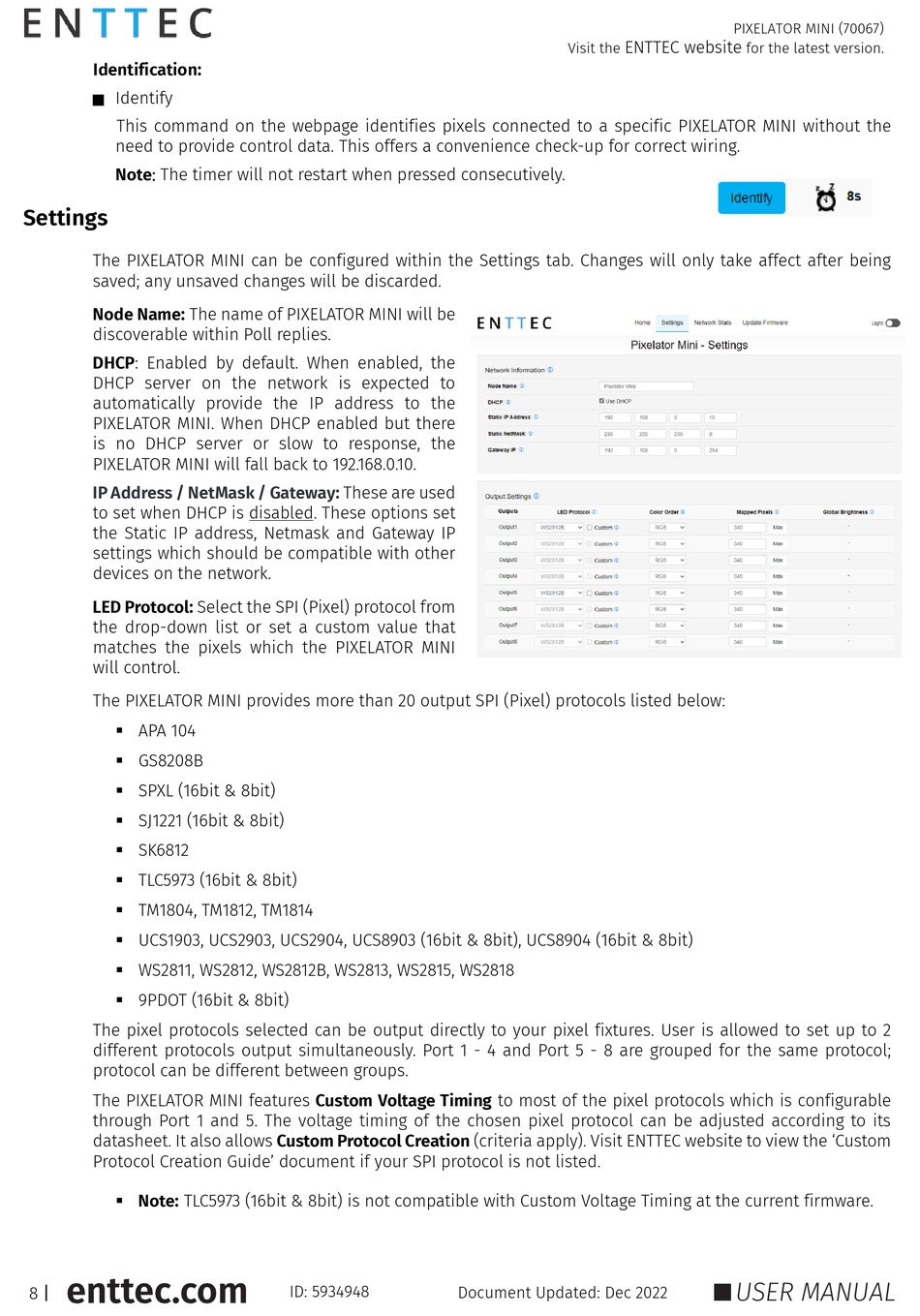

Identification:
Identify

This command on the webpage identifies pixels connected to a specific PIXELATOR MINI without the
need to provide control data. This offers a convenience check-up for correct wiring.
Note: The timer will not restart when pressed consecutively.

Settings

The PIXELATOR MINI can be configured within the Settings tab. Changes will only take affect after being
saved; any unsaved changes will be discarded.
Node Name: The name of PIXELATOR MINI will be
discoverable within Poll replies.
DHCP: Enabled by default. When enabled, the
DHCP server on the network is expected to
automatically provide the IP address to the
PIXELATOR MINI. When DHCP enabled but there
is no DHCP server or slow to response, the
PIXELATOR MINI will fall back to 192.168.0.10.
IP Address / NetMask / Gateway:
to set when DHCP is disabled. These options set
the Static IP address, Netmask and Gateway IP
settings which should be compatible with other
devices on the network.
LED Protocol: Select the SPI (Pixel) protocol from
the drop-down list or set a custom value that
matches the pixels which the PIXELATOR MINI
will control.
The PIXELATOR MINI provides more than 20 output SPI (Pixel) protocols listed below:
▪ APA 104
▪ GS8208B
▪ SPXL (16bit & 8bit)
▪ SJ1221 (16bit & 8bit)
▪ SK6812
▪ TLC5973 (16bit & 8bit)
▪ TM1804, TM1812, TM1814
▪ UCS1903, UCS2903, UCS2904, UCS8903 (16bit & 8bit), UCS8904 (16bit & 8bit)
▪ WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818
▪ 9PDOT (16bit & 8bit)
The pixel protocols selected can be output directly to your pixel fixtures. User is allowed to set up to 2
different protocols output simultaneously. Port 1 - 4 and Port 5 - 8 are grouped for the same protocol;
protocol can be different between groups.
The PIXELATOR MINI features Custom Voltage Timing to most of the pixel protocols which is configurable
through Port 1 and 5. The voltage timing of the chosen pixel protocol can be adjusted according to its
datasheet. It also allows Custom Protocol Creation (criteria apply). Visit ENTTEC website to view the 'Custom
Protocol Creation Guide' document if your SPI protocol is not listed.
▪ Note: TLC5973 (16bit & 8bit) is not compatible with Custom Voltage Timing at the current firmware.
