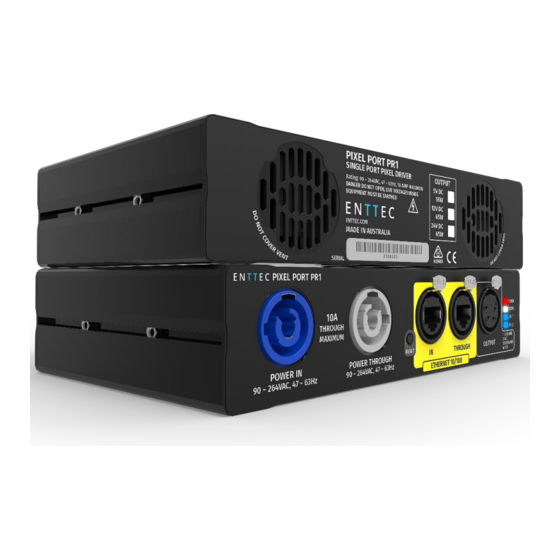

- Page 1 PIXEL PORT ETHERNET PIXEL DRIVER...
-
Page 2: Table Of Contents
Network Settings Explained .......... 7 Choosing a Pixel Port ..........15 Node Name ..............7 Unable to open Pixel Port web-page: ....15 DHCP ................7 Can you run tapes and dots at the same time? . 16 DMX Protocol ..............8 Thermal Management ........... -
Page 3: Package Contents
User Manual Pixel Port For the latest version visit: www.enttec.com Package Contents LED Protocols Supported • • Pixel Port (76302-16, 76302-26 or 76302-55) 9PDOT-8bit • • Pixel Output Connector (76301) 9PDOT-16bit • • 2m cat5 cable (79102) WS2811, WS2812, WS2812B, WS2813 •... -
Page 4: Hardware Features
Scalable design for large projects for more information. • powerCON in/out sockets Hardware Options • etherCON Link through Pixel Port is available in the following 3 options: Product Output Maximum Current • 4-pin XLR pixel data output socket. Part No. -
Page 5: Software Features
Pixel Port For the latest version visit: www.enttec.com Software Features LED Status • The Pixel Port driver comes with four LED indicators Supports the following DMX over Ethernet located in the front panel: protocols: o Art-Net 1/2/3 1. Power 2. Status o Streaming ACN (sACN) 3. -
Page 6: Wiring Diagram
Notes • Always check that the voltage and output of Pixel Port matches that of the tape/dots, before connecting. • Each unit has a leakage current of <2mA, this should be used to calculate the maximum units, when powered in a daisy chain fashion. -
Page 7: Default Ip
NMU (Node Management Utility) is used to manage compatible ENTTEC DMX over Ethernet nodes. NMU will Right out of the box, the Pixel Port is factory help you find your unit's IP address and then open a configured to be a DHCP node, so you can plug it browser window to access the web-interface. -
Page 8: Web Configuration
Firmware version on device • Serial number of device • Internal temperature of the processor • System uptime The left side menu allows all the Pixel Port web • DHCP status – whether enabled pages to be accessed. • IP address •... -
Page 9: Settings
• Reset to factory defaults IP Address and Netmask are only used if DHCP is disabled or is unavailable on the network. Pixel Port • Reboot device 21 September 2017 ID: 3617472... -
Page 10: Dmx Protocol
Universe/Output is set to one as shown in image. Universe/Output The Pixel Port in direct mode allows conversion of up to two universes of DMX over Ethernet to pixel data. For Art-net universe, please change Net/Subnet to increase combined universe beyond 15. (Combined universe is shown under the selection). -
Page 11: Mapped Pixels
User Manual Pixel Port For the latest version visit: www.enttec.com pixel colour on each LED pixel. The ordering The number of pixels switched on for different settings selected here should match the ordering on the in direct mode when 2 universes worth of pixels are Pixel Tape or Dots being used. -
Page 12: Standalone (Default Mode)
User Manual Pixel Port For the latest version visit: www.enttec.com Standalone (Default Mode) When the Pixel Port is restored, the first 14 presets will always be reset to factory default . Notes: • Select correct LED protocol • Select correct pixel order... -
Page 13: Effect Generator Mode
By only enabling the background layer the Pixel tape/dots will be similar to a standard RGB tape. The In this mode, you can send DMX over Ethernet to background can be: Pixel Port using the selected output protocol. • Set to a constant colour – •... -
Page 14: Foreground
User Manual Pixel Port For the latest version visit: www.enttec.com Smallest duration Wave speed (0-255) Longest duration Offset (0-255) Foreground This layer create effects that overlay on the Foreground Red/Green/Blue background colour. • Separate DMX channel controls each pixel The following control the foreground effects colour. -
Page 15: Wave Direction
User Manual Pixel Port For the latest version visit: www.enttec.com • Rainbow Square Wave Minimum speed Maximum speed • Rainbow Sawtooth Wave Direction Offset The wave pattern can be set to travel. Wave When two or more Pixel Ports are daisy-chained, this... -
Page 16: Reset To Factory Defaults
As shown in the image below: Using Web Interface The reset to defaults command can be found under the Settings tab of the Pixel Port. Once the command is pressed, a pop-up would appear After selecting the correct file, click on the Update as shown in the image below: Firmware button and let the update proceed. -
Page 17: Using Button
• the one Pixel Port is connected to. Wait 3 seconds and cycle power 6. Once NMU finds the Pixel Port, you will be able to open the device web-page and 21 September 2017 ID: 3617472... -
Page 18: Can You Run Tapes And Dots At The Same Time
Roll Black No Coating 79160 Universal Bracket Product Registration Please register your ENTTEC product to get latest software updates and to validate your warranty. degenerative curve for the pixel Port is shown: Accessories and Recommended Products Part Number Description 73910...
