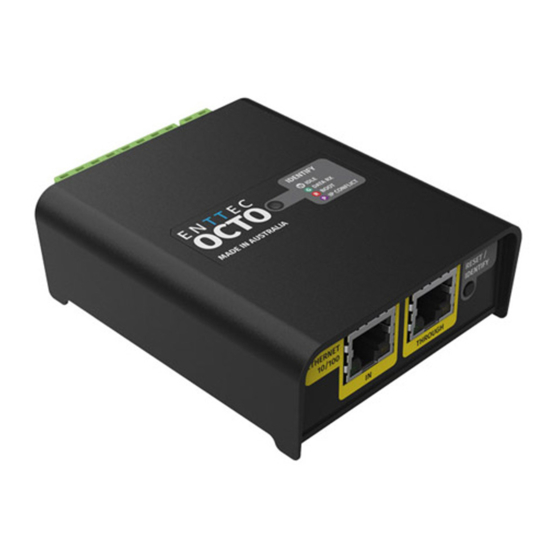

- Page 1 OCTO MK2 71521 User Manual eDMX to SPI pixel controller with standalone mode and an added overdrive feature capable of transmitting up to 16 universes of SPI data, all packaged in a compact 4-module DIN-rail form factor.
-
Page 2: Table Of Contents
I’m unable to connect to the OCTO MK2 web interface............................18 What if my LED strip protocol is not on the drop-down list? How to add a new LED strip protocol to OCTO MK2? ..... 18 What is the minimum DC voltage for powering the OCTO MK2? ........................18 Servicing, Inspection &... -
Page 3: Safety
To contribute to an optimal operating temperature, where possible keep this device out of direct sunlight. Pixel data is unidirectional. Ensure that your OCTO MK2 is connected to your pixel dots or tape in a way that ensures data is flowing from the OCTO MK2 to the ‘Data IN’ connection of your pixels. -
Page 4: Protection From Injury During Installation
Keep the OCTO MK2 and its accessories in its protective packaging until final installation. Note the serial number of each OCTO MK2 and add it to your layout plan for future reference when servicing. All network cabling should be terminated with an RJ45 connector following the T-568B standard. -
Page 5: Wiring Diagrams
OCTO MK2 (71521) Visit the ENTTEC website for the latest version. Wiring Diagrams Locate the OCTO MK2 and PSU as close as possible to the first pixel in your chain to reduce the impact of voltage drop. To reduce the likelihood of voltage or Electro Magnetic Interference (EMI) being induced on the control ... - Page 6 OCTO MK2 (71521) Visit the ENTTEC website for the latest version. THIS POWER SUPPLY IS PROVIDING POWER TO THE OCTO POWER SUPPLY POWER SUPPLY POWER SUPPLY THIS POWER SUPPLY IS PROVIDING POWER TO THE OCTO POWER POWER SUPPLY SUPPLY WHEN USING MULTIPLE POWER SUPPLIES,...
-
Page 7: Mounting Options
OCTO MK2 (71521) Visit the ENTTEC website for the latest version. Mounting Options Note: The surface mount tabs have been designed to hold the weight of the OCTO MK2 only, excess force by cable strain can cause damage. Functional Features Efficiently converts 8 Universes (4U per port) e-DMX to pixel control protocols. -
Page 8: Led Status Indicator
OCTO MK2 (71521) Visit the ENTTEC website for the latest version. LED Status Indicator The LED status indicator is used to determine the OCTO MK2’s current state which indicates the following device states: LED Colour OCTO MK2 Status White Idle... -
Page 9: Networking
The OCTO MK2 can either be configured to use a DHCP or Static IP address. DHCP: On power up and with DHCP enabled, if the OCTO MK2 is on a network with a device/router with a DHCP server, the OCTO MK2 will request an IP address from the server. If the DHCP server is slow to respond, or your network does not have a DHCP server, the OCTO MK2 will fall back to the IP address 192.168.0.10 and... -
Page 10: Top Menu
Visit the ENTTEC website for the latest version. Top Menu The top menu grants easy access to all OCTO MK2 web pages, with the active page highlighted in blue. The top right corner of the window features 2 installer-friendly buttons: Dark Mode ... -
Page 11: Settings
Select universe number and enable auto refresh to inspect channel value in real time for selected universe. Settings The OCTO MK2 settings can be configured within the Settings tab. Changes will only take effect after being saved; any unsaved changes will be discarded. - Page 12 Example: When Group Pixels is set to 10 on an OCTO MK2 connected to a length of RGB pixel strip, by patching a single RGB pixel within your control software and sending the values to the OCTO MK2, the first...
- Page 13 Increments of 8 for RGBW-16 bits (i.e., 1, 9, 17, 25) Save Settings: All changes must be saved to take effect. The OCTO MK2 takes up to 10 seconds to save. Reset to Defaults: This button allows the OCTO MK2 reset back to factory default via the web interface.
-
Page 14: Standalone
Visit the ENTTEC website for the latest version. Standalone Standalone in OCTO MK2 allows users to create a looping gradient effect that can be set to playback from power on without the requirement of sending DMX data. This feature is also useful for testing the output of OCTO MK2. - Page 15 OCTO MK2 (71521) Visit the ENTTEC website for the latest version. 1. Select any empty/existing standalone effect in the ‘Select Effect’ drop-down list and add a name for identification. 2. By clicking on the gradient graphic, the user can modify and define the gradient colour at any point.
-
Page 16: Network Stats
OCTO MK2 (71521) Visit the ENTTEC website for the latest version. Network Stats The Network Stats page shows statistics for the input DMX protocol selected. The information provided is: Art-Net Total Packets Received Poll Packets Received Data Packets Received ... -
Page 17: Updating Firmware
Home tab has loaded, the OCTO MK2 will resume operation. Reset to Factory Defaults The OCTO MK2 can be reset by either the web interface or the reset button on the device. It resumes the device’s settings back to factory default, see Resetting via Web Interface The ‘Reset to Defaults’... -
Page 18: Frequently Asked Questions
What if my LED strip protocol is not on the drop-down list? How to add a new LED strip protocol to OCTO MK2? The OCTO MK2 allows the user to choose a pixel output protocol even if it is not found in the drop-down list. -
Page 19: Servicing, Inspection & Maintenance
Do not spray devices or accessories. The device is an IP20 product. To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth. -
Page 20: Package Content
Due to electronic design, please check your serial number and artwork on your device for support: OCTO MK1 (SKU: 71520) last SN: 2318130, Please load firmware up to V1.6. OCTO MK2 (SKU: 71521) SN: 2318635 to 2323030, please load firmware up to V2. 1 . MK1 firmware is not compatible with OCTO MK2.
