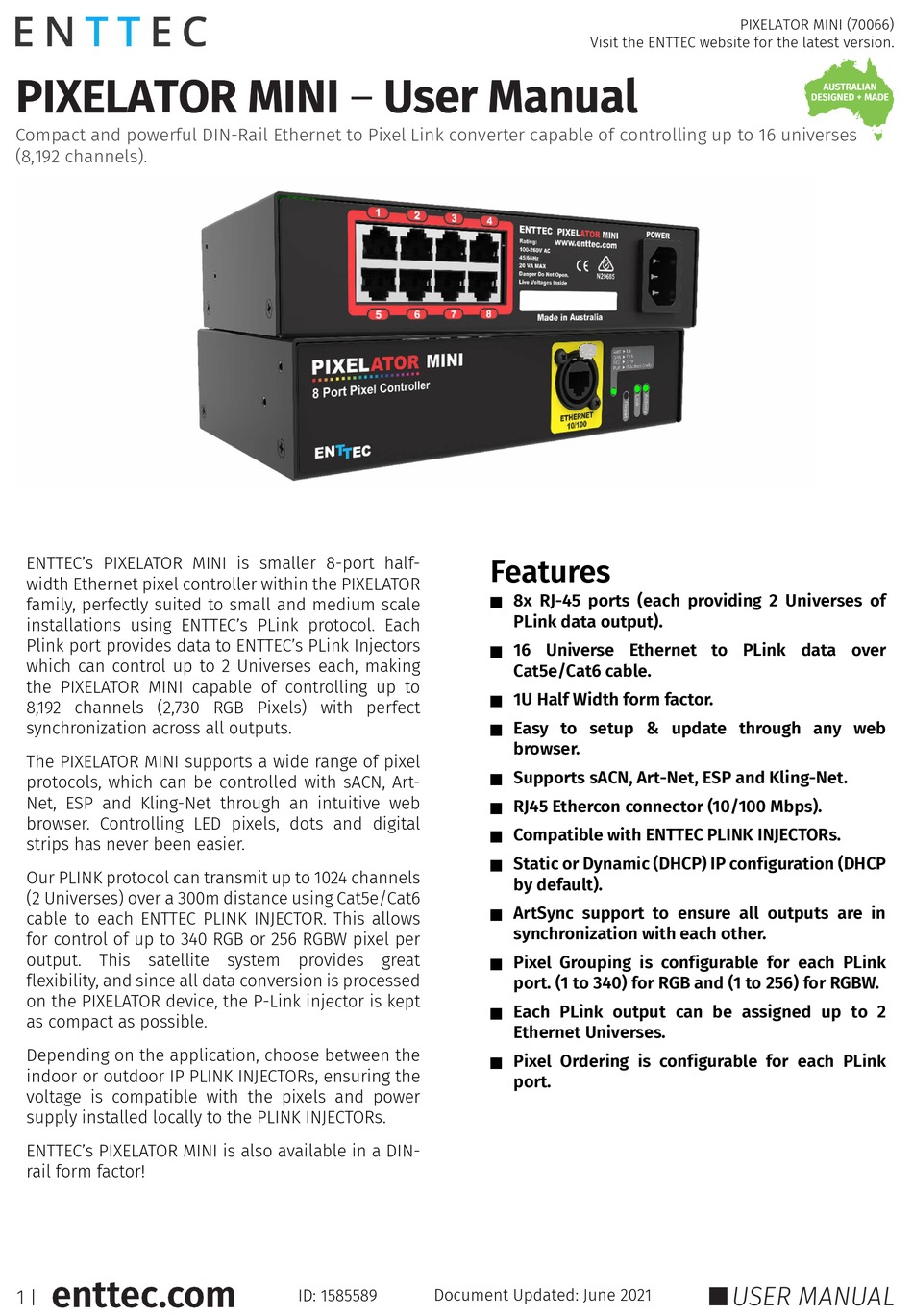

PIXELATOR MINI – User Manual
Compact and powerful DIN-Rail Ethernet to Pixel Link converter capable of controlling up to 16 universes
(8,192 channels).

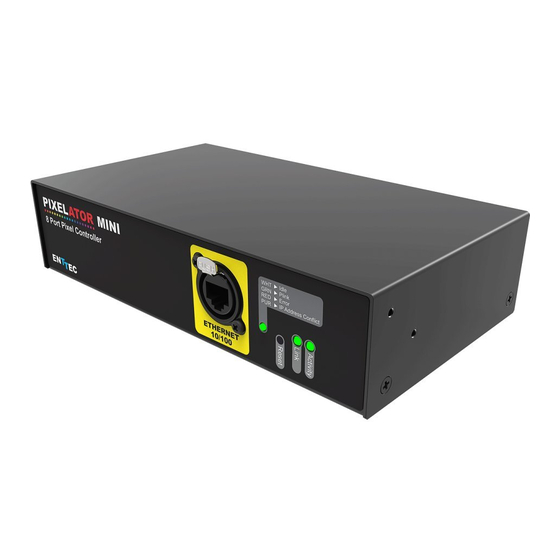

ENTTEC's PIXELATOR MINI is smaller 8-port half-
width Ethernet pixel controller within the PIXELATOR
family, perfectly suited to small and medium scale
installations using ENTTEC's PLink protocol. Each
Plink port provides data to ENTTEC's PLink Injectors
which can control up to 2 Universes each, making
the PIXELATOR MINI capable of controlling up to
8,192 channels (2,730 RGB Pixels) with perfect
synchronization across all outputs.
The PIXELATOR MINI supports a wide range of pixel
protocols, which can be controlled with sACN, Art-
Net, ESP and Kling-Net through an intuitive web
browser. Controlling LED pixels, dots and digital
strips has never been easier.
Our PLINK protocol can transmit up to 1024 channels
(2 Universes) over a 300m distance using Cat5e/Cat6
cable to each ENTTEC PLINK INJECTOR. This allows
for control of up to 340 RGB or 256 RGBW pixel per
output. This satellite system provides great
flexibility, and since all data conversion is processed
on the PIXELATOR device, the P-Link injector is kept
as compact as possible.
Depending on the application, choose between the
indoor or outdoor IP PLINK INJECTORs, ensuring the
voltage is compatible with the pixels and power
supply installed locally to the PLINK INJECTORs.
ENTTEC's PIXELATOR MINI is also available in a DIN-
rail form factor!
1
|
Document Updated: June 2021
ID: 1585589
Visit the ENTTEC website for the latest version.
Features
8x RJ-45 ports (each providing 2 Universes of
PLink data output).
16 Universe Ethernet to PLink data over
Cat5e/Cat6 cable.
1U Half Width form factor.
Easy to setup & update through any web
browser.
Supports sACN, Art-Net, ESP and Kling-Net.
RJ45 Ethercon connector (10/100 Mbps).
Compatible with ENTTEC PLINK INJECTORs.
Static or Dynamic (DHCP) IP configuration (DHCP
by default).
ArtSync support to ensure all outputs are in
synchronization with each other.
Pixel Grouping is configurable for each PLink
port. (1 to 340) for RGB and (1 to 256) for RGBW.
Each PLink output can be assigned up to 2
Ethernet Universes.
Pixel Ordering is configurable for each PLink
port.
PIXELATOR MINI (70066)
USER MANUAL
..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXELATOR MINI and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec PIXELATOR MINI

Summary of Contents for Enttec PIXELATOR MINI

  • Page 1 Easy to setup & update through any web  browser. The PIXELATOR MINI supports a wide range of pixel Supports sACN, Art-Net, ESP and Kling-Net. protocols, which can be controlled with sACN, Art-  Net, ESP and Kling-Net through an intuitive web RJ45 Ethercon connector (10/100 Mbps).

  • Page 2: Table Of Contents

    ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.

  • Page 3: Electrical Safety

    Ensure this device is only operated within the specified ranges within the product datasheet.  Protection from Injury During Installation Always use suitable personal protective equipment when installing ENTTEC products.  Once installation is completed, check that all hardware and components are securely in place and ...

  • Page 4: Physical Dimensions

    PLINK INJECTORs From one of the PIXELATOR MINI’s PLINK Data outputs, you can run up to 300m of Cat6 cable to a single PLINK INJECTOR. Since all data conversion is processed on the PIXELATOR MINI, the PLINK INJECTOR is kept as compact as possible.

  • Page 5: Hardware Features

    Universes per port. The PIXELATOR MINI will be set to a DHCP IP address as default. If the DHCP server is slow to respond, or your network does not have a DHCP server, the PIXELATOR MINI will fall back to the default Static IP address which will be printed on the PIXELATOR MINI’s packaging, but also can be calculated from the last three...

  • Page 6: Networking

    DHCP: On power up and with DHCP enabled, if the PIXELATOR MINI is on a network with a device/router with a DHCP server, the PIXELATOR MINI will request an IP address from the server. If the DHCP server is slow to respond, or your network does not have a DHCP server, the PIXELATOR MINI will fall back to the Static IP address.

  • Page 7: Home

    PIXELATOR MINI (70066) Visit the ENTTEC website for the latest version. Home The landing page for the PIXELATOR MINI web interface is the Home tab. This tab is designed to give you a read-only device overview. This will display: Node Name NetMask ...

  • Page 8: Network Stats

    TOD Control/Request packets. Update Firmware On selecting the Update Firmware tab, the PIXELATOR MINI normal operation will stop, and the web interface boot into the Update Firmware mode takes up-to 10 seconds. This mode will display basic information regarding the device including current Firmware Version, Mac Address, Serial Number and IP address information.

  • Page 9: Servicing, Inspection & Maintenance

    Do not spray device or accessories. The device is an IP20 product.  To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.

  • Page 10: Package Contents

     Ethernet Cable  ½ Width 1RU Mounting Kit  IEC Cable (Included separately)  Ordering Information For further support and to browse ENTTEC’s range of products visit the ENTTEC website. Item Part No. PIXELATOR MINI 70066 PLink 5v 73546...
