Box Contents
•
Pixelator Mini (pn: 70066)
•
Straight connect Ethernet lead (pn:79102)
•
1RU Mounting kit (pn: 79105)
•
Country specific IEC Power lead.
•
This user manual

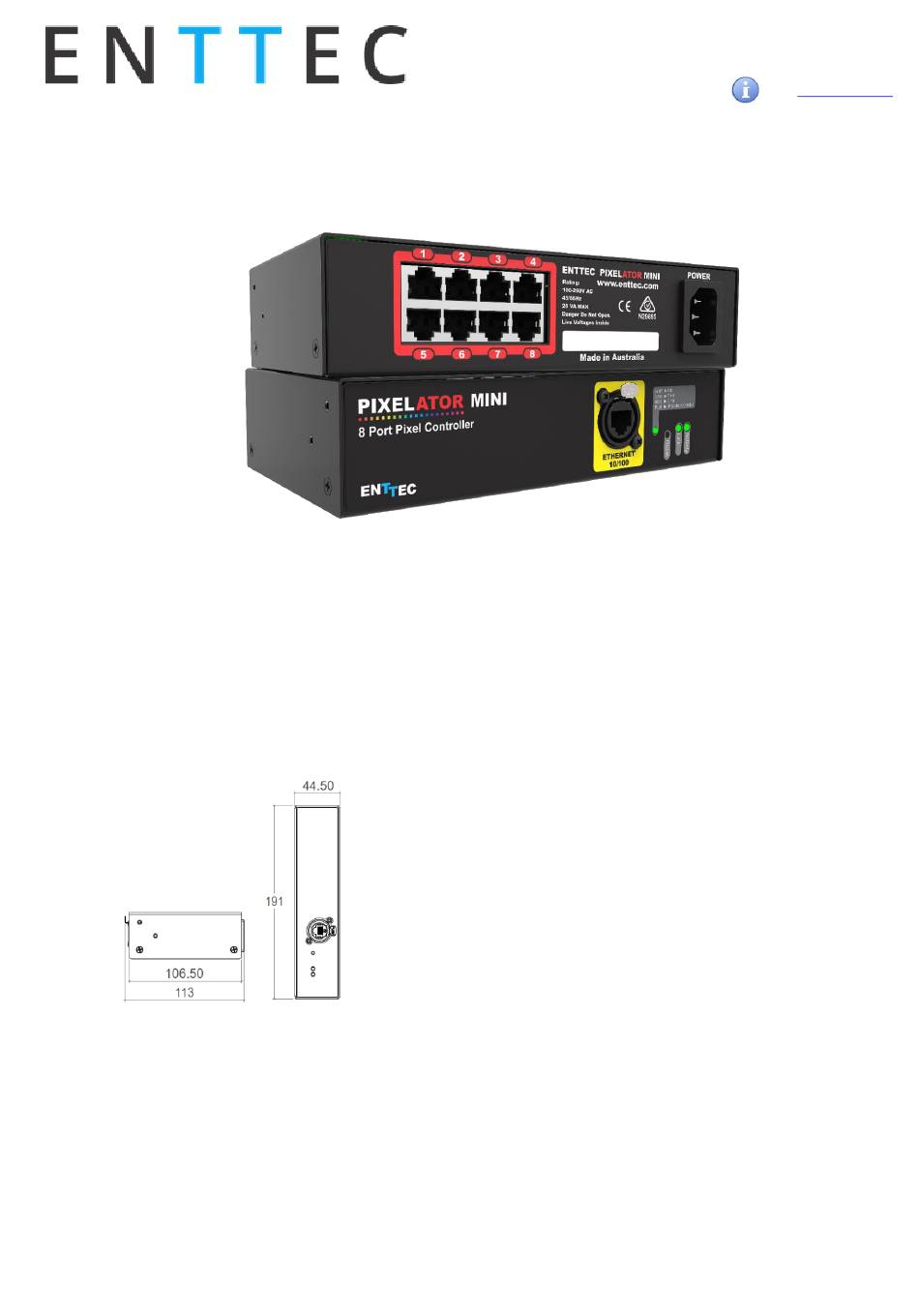

Physical Dimensions
Note:
All dimensions are in millimetres unless specified otherwise
LED Protocols Supported
•
9PDOT-8bit and 9PDOT-16bit
•
WS2811, WS2812, WS2813, WS2812B
•
APA-104 LEDs
•
SK6812 – use WS2812B
•
TM1804 – use WS2812B
1
PIXELATOR MINI
( P N 7 0 0 6 6 )
•
TM1812 – use WS2812B
•
TLC5973-8bit and TLC5973-16bit
Notes:
▪ We cannot claim to support other led protocols similar to the ones
supported by Pixelator Mini. If you happen to find one that works, and
is not listed, please let us know, so we can update our documentation
Features
•
8 Pixel Link (RJ-45) data output ports
•
16 Universe Ethernet to Plink
•
Easy to setup & update through any web browser
•
Supports following DMX over Ethernet protocols:
Art-Net 1/2/3
o
Streaming ACN (sACN)
o
Kling-net
o
ESP
o
•
1 RJ45 Ethercon connector (10/100 Mbps)
•
Static or Dynamic (DHCP) IP configuration (DHCP by
default)
•
Compatible with ENTTEC Plink Injectors
•
Pixel Grouping is configurable for each Pixel Link
port. (1 to 340) for RGB and (1 to 256) for RGBW
•
Each Pixel Link output can be assigned up to 2
Ethernet Universes.
•
Pixel Ordering is configurable for each Pixel Link
port. RGB modes allow 3 slot mapping, and RGBW
modes allows 4 slot mapping.
User Manual
PMINI-MANUAL (50881)
For latest version visit:
www.enttec.com
ID: 1585589
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Enttec PIXELATOR MINI
Summary of Contents for Enttec PIXELATOR MINI
-
Page 1: Box Contents
▪ We cannot claim to support other led protocols similar to the ones • 1RU Mounting kit (pn: 79105) supported by Pixelator Mini. If you happen to find one that works, and • Country specific IEC Power lead. is not listed, please let us know, so we can update our documentation •... -
Page 2: Basic Setup
PMINI-MANUAL (50881) For latest version visit: www.enttec.com Safety The Pixelator Mini comes with one RGB status LED and two • Do not expose the unit to rain or moisture, doing green network LED indicators located on the right side of... -
Page 3: Web Configuration
: allows you to pick the input DMX over Ether- type the IP address (as detected by NMU) into your web net protocol that the Pixelator Mini will act on. Available op- browser to access the Web Interface. The left side menu tions are Art-Net, sACN, Kling-net and ESP. - Page 4 User Manual PMINI-MANUAL (50881) For latest version visit: www.enttec.com Second Universe Allows selections of the Second universe that the output will be mapped to. Drives pixels 171-340 in RGB modes, or the pixels 129-256 in RGBW modes. For Art-net universe, please change Net/Subnet to increase combined universe beyond 15.
-
Page 5: Update Firmware
Pixel Link pinout (RJ-45): • Pin 1: Data + • Pin 2: Data - From this page you can update Pixelator Mini to the lat- • Pin 7: Ground est firmware. Latest firmware file is available at enttec.com/mini. Art-Net Send Test Choose or browse the firmware file (as per your browser) and click on Update firmware to start the process. -
Page 6: Ordering Information
Notes: Ordering Information ▪ Plink system only works with CAT5/6 straight-through cables, do not use crossover cables. The ENTTEC Pixelator Mini and compatible products can be ordered from our website or through your ENTTEC dealer. Description 70066 Pixelator Mini... -
Page 7: User Manual
PMINI-MANUAL (50881) For latest version visit: www.enttec.com Accessories and Recommended Products Part Number Description 70581-ARC ENTTEC LED Mapper Software (ELM) Architectural (512 Universes) 70581-PRO ENTTEC LED Mapper Software (ELM) Professional (96 Universes) ENTTEC LED Mapper Software (ELM) 70581-STU Standard (16 Universes) - Page 8 User Manual PMINI-MANUAL (50881) For latest version visit: www.enttec.com ID: 1585589...
