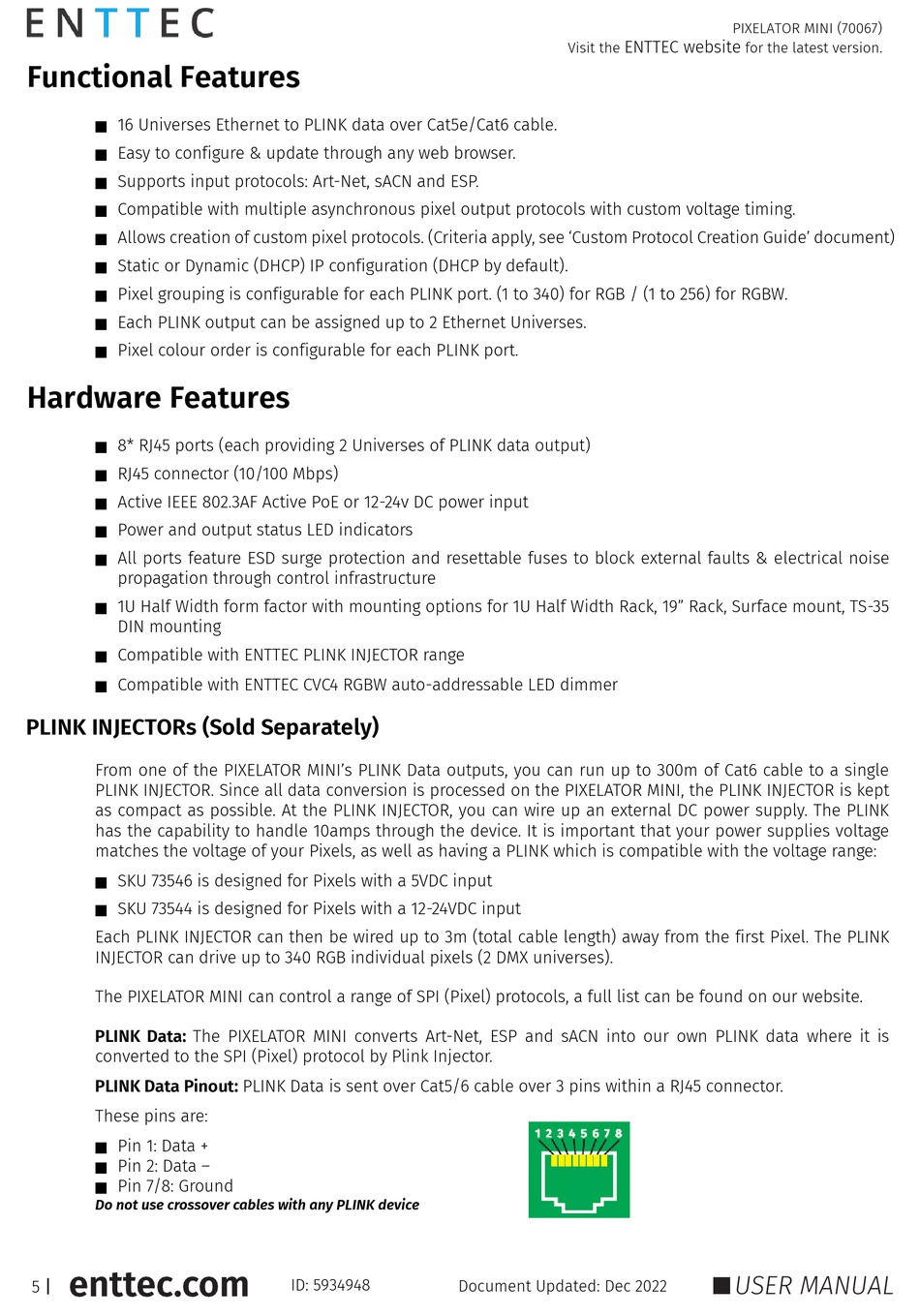

Functional Features

16 Universes Ethernet to PLINK data over Cat5e/Cat6 cable.

Easy to configure & update through any web browser.

Supports input protocols: Art-Net, sACN and ESP.

Compatible with multiple asynchronous pixel output protocols with custom voltage timing.

Allows creation of custom pixel protocols. (Criteria apply, see 'Custom Protocol Creation Guide' document)

Static or Dynamic (DHCP) IP configuration (DHCP by default).

Pixel grouping is configurable for each PLINK port. (1 to 340) for RGB / (1 to 256) for RGBW.

Each PLINK output can be assigned up to 2 Ethernet Universes.

Pixel colour order is configurable for each PLINK port.


Hardware Features

8* RJ45 ports (each providing 2 Universes of PLINK data output)

RJ45 connector (10/100 Mbps)

Active IEEE 802.3AF Active PoE or 12-24v DC power input

Power and output status LED indicators

All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise

propagation through control infrastructure
1U Half Width form factor with mounting options for 1U Half Width Rack, 19" Rack, Surface mount, TS-35

DIN mounting
Compatible with ENTTEC PLINK INJECTOR range

Compatible with ENTTEC CVC4 RGBW auto-addressable LED dimmer


PLINK INJECTORs (Sold Separately)

From one of the PIXELATOR MINI's PLINK Data outputs, you can run up to 300m of Cat6 cable to a single
PLINK INJECTOR. Since all data conversion is processed on the PIXELATOR MINI, the PLINK INJECTOR is kept
as compact as possible. At the PLINK INJECTOR, you can wire up an external DC power supply. The PLINK
has the capability to handle 10amps through the device. It is important that your power supplies voltage
matches the voltage of your Pixels, as well as having a PLINK which is compatible with the voltage range:
SKU 73546 is designed for Pixels with a 5VDC input

SKU 73544 is designed for Pixels with a 12-24VDC input

Each PLINK INJECTOR can then be wired up to 3m (total cable length) away from the first Pixel. The PLINK
INJECTOR can drive up to 340 RGB individual pixels (2 DMX universes).
The PIXELATOR MINI can control a range of SPI (Pixel) protocols, a full list can be found on our website.
PLINK Data: The PIXELATOR MINI converts Art-Net, ESP and sACN into our own PLINK data where it is
converted to the SPI (Pixel) protocol by Plink Injector.
PLINK Data Pinout: PLINK Data is sent over Cat5/6 cable over 3 pins within a RJ45 connector.
These pins are:
Pin 1: Data +

Pin 2: Data –

Pin 7/8: Ground

Do not use crossover cables with any PLINK device
