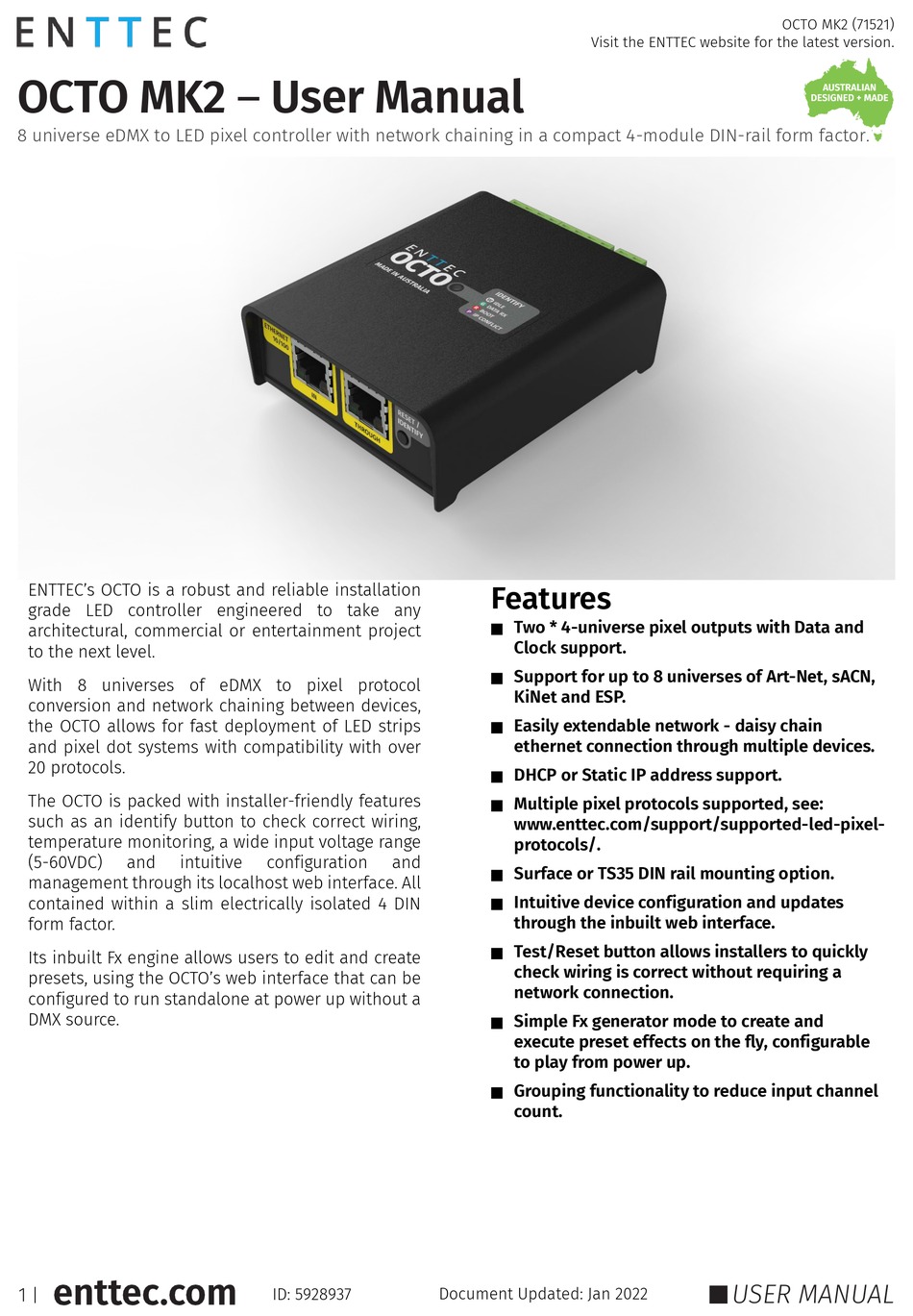

Enttec OCTO MK2 User Manual

OCTO MK2 – User Manual

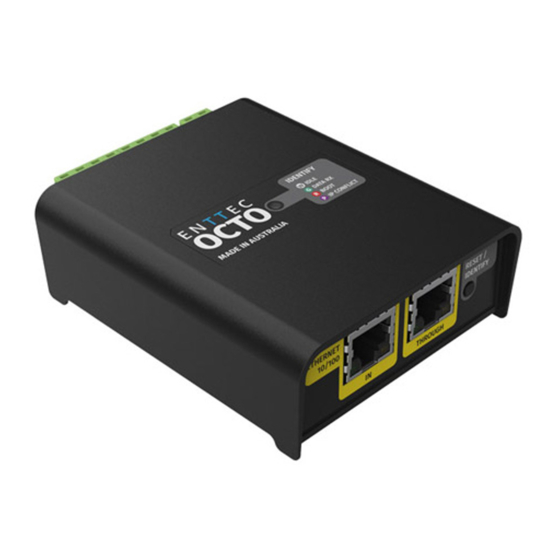

8 universe eDMX to LED pixel controller with network chaining in a compact 4-module DIN-rail form factor.
ENTTEC's OCTO is a robust and reliable installation
grade LED controller engineered to take any
architectural, commercial or entertainment project
to the next level.
With 8 universes of eDMX to pixel protocol
conversion and network chaining between devices,
the OCTO allows for fast deployment of LED strips
and pixel dot systems with compatibility with over
20 protocols.
The OCTO is packed with installer-friendly features
such as an identify button to check correct wiring,
temperature monitoring, a wide input voltage range
(5-60VDC) and intuitive
management through its localhost web interface. All
contained within a slim electrically isolated 4 DIN
form factor.
Its inbuilt Fx engine allows users to edit and create
presets, using the OCTO's web interface that can be
configured to run standalone at power up without a
DMX source.
1
|
configuration and
ID: 5928937 Document Updated: Jan 2022
Visit the ENTTEC website for the latest version.
Features
Two * 4-universe pixel outputs with Data and

Clock support.
Support for up to 8 universes of Art-Net, sACN,

KiNet and ESP.
Easily extendable network - daisy chain

ethernet connection through multiple devices.
DHCP or Static IP address support.

Multiple pixel protocols supported, see:

www.enttec.com/support/supported-led-pixel-
protocols/.
Surface or TS35 DIN rail mounting option.

Intuitive device configuration and updates

through the inbuilt web interface.
Test/Reset button allows installers to quickly

check wiring is correct without requiring a
network connection.
Simple Fx generator mode to create and

execute preset effects on the fly, configurable
to play from power up.
Grouping functionality to reduce input channel

count.
OCTO MK2 (71521)
USER MANUAL

..
