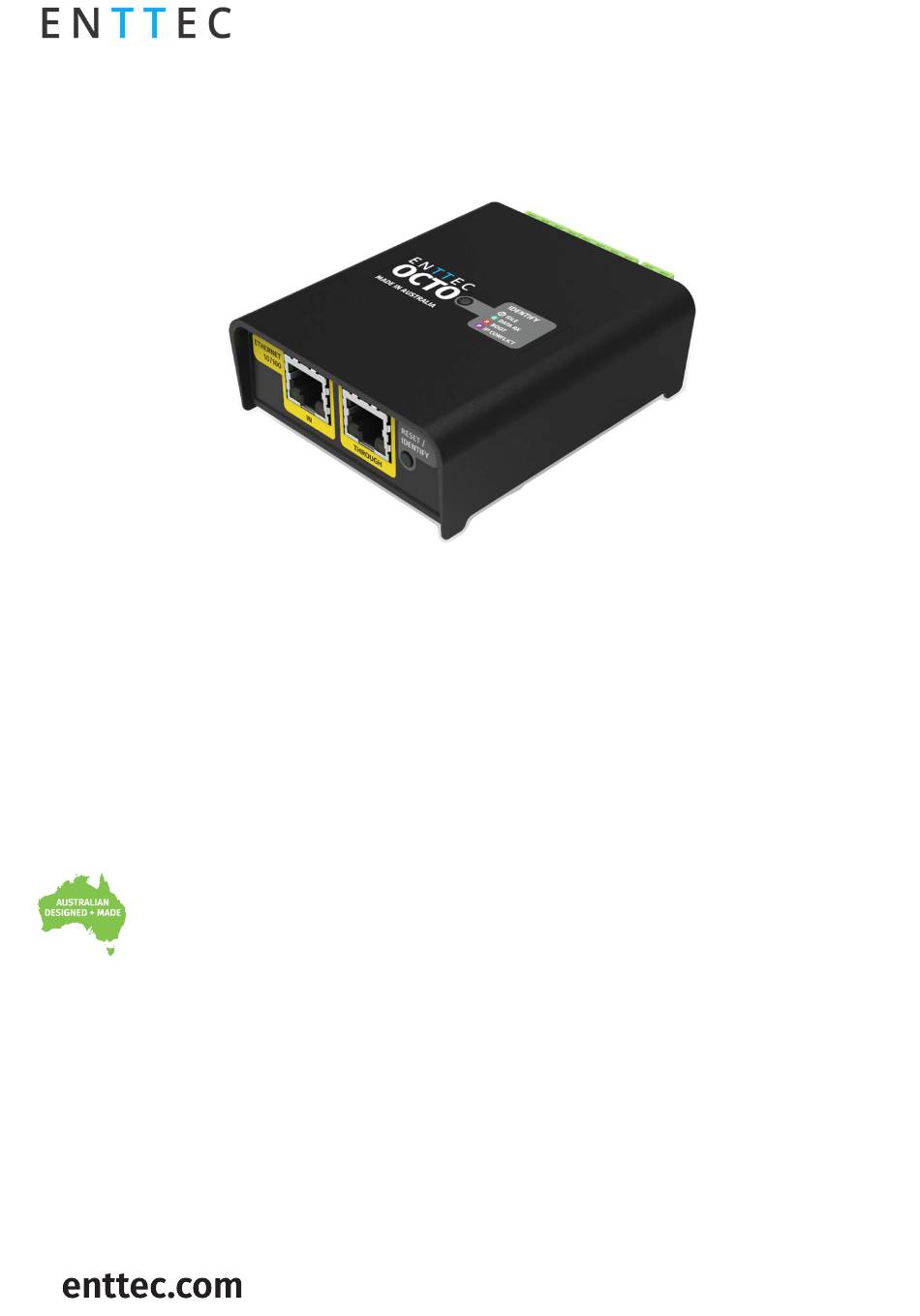

OCTO – User Guide
8 universe eDMX to LED pixel controller with network chaining in a compact 4-module DIN-rail form factor

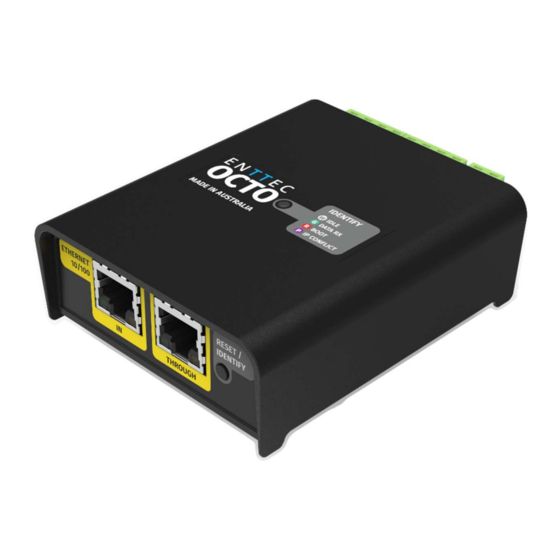

ENTTEC's OCTO is a robust and reliable
installation
engineered to take any architectural,
commercial or entertainment project to
the next level.
With 8 universes of eDMX to pixel
protocol
chaining between devices, the OCTO
allows for fast deployment of LED strips
and pixel dot systems compatible with a
wide range of devices.
The OCTO is packed with installer-
friendly features such as an identify
button
temperature monitoring, a wide input
voltage range and intuitive configuration
and management through its localhost
web interface. All contained within a 4
DIN unit form factor.
The inbuilt Fx engine allows users to edit
and create presets, using the OCTO's web
interface that can be configured to run
standalone at power up.
1
|
grade
LED
controller
conversion
and
network
to
check
correct
FEATURES
 Two * 4-universe pixel outputs with Data
and Clock support.
 Support for up to 8 universes of Art-Net,
sACN, KiNet and ESP.
 Easily extendable network - daisy chain
ethernet connection between devices.
 DHCP or Static IP address support.
 Multiple pixel protocols supported, see:
www.enttec.com/support/supported-
led-pixel-protocols
 Surface or TS35 DIN rail mounting option.
 Intuitive device configuration and updates
wiring,
through the inbuilt web interface.
 Test/Reset button allows installers to
quickly check wiring is correct without
requiring a network connection.
 Simple Fx generator mode to create and
execute
configurable to play from power up.
 Grouping functionality to reduce input
channel count.
ID: 5928937
OCTO – 71521
Visit the ENTTEC website for
the latest version
.
preset
effects
on
USER GUIDE - v1.0
the
fly,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCTO and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec OCTO

Summary of Contents for Enttec OCTO

  • Page 1 OCTO – User Guide 8 universe eDMX to LED pixel controller with network chaining in a compact 4-module DIN-rail form factor FEATURES  Two * 4-universe pixel outputs with Data ENTTEC’s OCTO is a robust and reliable and Clock support. installation grade...

  • Page 2: Table Of Contents

    Hardware features ........................................ 9 LED status indicator ........................................... 9 Identify / Reset button ..........................................9 Default IP ..........................................10 Finding an OCTO’s IP address using ENTTEC NMU ..............................11 Web configuration ........................................ 12 Home ................................................13 Settings ................................................14 Direct ............................................14 DMX protocols ........................................
  • Page 3 OCTO – 71521 Visit the ENTTEC website for the latest version Tips and guidelines ......................................26 Servicing, inspection & maintenance .................................27 Cleaning ................................................. 28 Package contents ........................................ 29 Ordering information ......................................29 ID: 5928937 USER GUIDE - v1.0 ...

  • Page 4: Electrical Safety

    To contribute to an optimal operating temperature, where possible keep this device out of direct sunlight. Pixel data is unidirectional. Ensure that your OCTO is connected to your pixel dots or tape in a way  that ensures data is flowing from the OCTO to the ‘Data IN’ connection of your pixels.

  • Page 5: Installation

     guide and product datasheet. Keep the OCTO and its accessories in its protective packaging until final installation.  Note the serial number of each OCTO and add it to your layout plan for future reference when  servicing. ...

  • Page 6: Physical Dimensions

    Physical dimensions Note: The OCTO is 4 DIN modules wide. Mounting options Note: The surface mount tabs have been designed to hold the weight of the OCTO only, excess force by caused by cable strain can cause damage. ID: 5928937 USER GUIDE - v1.0...
  • Page 7 Wiring diagrams  Locate the OCTO and PSU as close as possible to the first pixel in your chain to reduce the impact of voltage drop. To reduce the likelihood of voltage or Electro Magnetic Interference (EMI) being induced on the ...

  • Page 8: Functional Features

    Art-Net Streaming ACN (sACN) KiNET  The OCTO is compatible with synchronous and asynchronous pixel protocols. For the latest list please refer to: www.enttec.com/support/supported-led-pixel-protocols/. RGB, RGBW and White Pixel Order support  User-friendly interface to create and execute live effects on the fly ...

  • Page 9: Hardware Features

    Flexible wiring configuration.  35mm DIN rail accessory (included in packaging).  LED status indicator The LED status indicator can be used to determine the OCTO’s current state. Each state is as follows: LED Color OCTO Status White (static) Idle...

  • Page 10: Default Ip

    Out of the box, the OCTO is factory configured to use DHCP. You can plug it into your existing router, and it’s good to go. If the OCTO cannot obtain an IP address using DHCP, or the router is slow to assign an IP address to the OCTO, it falls back to its default static IP Address.

  • Page 11: Finding An Octo's Ip Address Using Enttec Nmu

    To discover a device using ENTTEC NMU follow the steps below: Download NMU from www.enttec.com. 2. OCTO should be connected physically by an Ethernet cable to the same physical network or router as the computer that is running NMU. 3. Open NMU. If prompted to select a network interface, select the correct one to which the OCTO is connected to.

  • Page 12: Web Configuration

    Visit the ENTTEC website for the latest version Web configuration The OCTO can be configured and controlled through a web browser, running on a computer system, located on the same Local Area Network (LAN). Note: A Chromium based browser is recommended for accessing the OCTO web interface.

  • Page 13: Home

    OCTO – 71521 Visit the ENTTEC website for the latest version Home The Home tab displays the following information: DHCP status – whether enabled  IP address  Netmask  Gateway  Mac Address   Link Speed  Device Name ...

  • Page 14: Settings

    Direct mode can be activated by clicking on the ‘Use Direct mode’ button on the Direct page as shown in the image below. When activated, the word Direct will be displayed next to the ENTTEC logo as shown in the screengrab above: ID: 5928937 USER GUIDE - v1.0...

  • Page 15: Dmx Protocols

    Outputs can be assigned a start universe in the range 1-63996 (when universe/output = 4). Note The OCTO supports a maximum of 1 multicast universe with sACN sync. (i.e., all universes set to the same value) Outputs can be assigned a start universe in the range 0-252 (when universe/output = 4). More details of the ESP protocol can be found at www.enttec.com...

  • Page 16: Group Pixels

    Example: When ‘group pixel’ is set to 10 on an OCTO connected to a length of RGB pixel strip, by patching a single RGB pixel within your control software and sending the values to the OCTO, the first 10 LED’s would respond to it.

  • Page 17: Show Options - Activating A Standalone Effect

     Show options – Activating a standalone effect The OCTO allows the control of standalone effects on both outputs. This is controlled by the Show Options section. Both can be set to output no standalone show: The outputs can play the same standalone show concurrently:...

  • Page 18: Creating A Standalone Effect

    Standalone effects name Up to 65 characters can be used for a standalone name. All characters are supported except comma (,). The OCTO does not allow a standalone to be saved with an existing name on the list. ID: 5928937 USER GUIDE - v1.0...
  • Page 19 Background (controls shown in red)  Foreground (controls shown in blue) The OCTO has colour wheel support for both RGB WWA (warm white, cool white and Amber) pixel tape Background By only enabling the background layer the pixel tape/dots will respond like a standard RGB tape.
  • Page 20 OCTO – 71521 Visit the ENTTEC website for the latest version Background/ foreground strobe duration Controls the time that the LEDs are on: DMX fader value On time Always on Smallest duration Longest duration Wave function The foreground layer can be controlled to form patterns of the following wave functions: Sine wave ...

  • Page 21: Editing A Standalone Effect

    Visit the ENTTEC website for the latest version Editing a standalone effect The OCTO allows the editing of any saved standalone effect. Follow the steps below to edit a standalone: Select the standalone to be edited and click on the Edit button.

  • Page 22: Copying A Standalone Show

    The OCTO does not permit shows to be saved with the same name. Importing and exporting a standalone list The OCTO allows the import and export of all the standalone shows on the device. Note: The export file will include a list of all the standalone shows...

  • Page 23: Network Stats

    OCTO – 71521 Visit the ENTTEC website for the latest version Network stats The Network page shows statistics for the DMX protocol enabled. Art-Net The information provided is: Poll packets received  Data packets received  Sync packets received ...

  • Page 24: Kinet

    Last port data received from  Updating firmware It is strongly recommended that the OCTO is updated with the latest firmware, available on the ENTTEC website. This firmware can be loaded to the driver through its web interface by carrying out the following steps: Browse and select the correct firmware version on your PC 2.

  • Page 25: Reset To Factory Defaults

    APA-102 global intensity set to maximum. Using web interface The reset to defaults command can be found under the Settings tab of the OCTO. Once the command is pressed, a pop-up would appear as shown in the image below: Using the reset button...

  • Page 26: Tips And Guidelines

    5. If you have multiple networks (WiFi etc.), please try to disable all other networks except the one OCTO is connected to. 6. Once NMU finds the OCTO, you will be able to open the device webpage and configure Reset the device if following the above steps did not resolve the issue.

  • Page 27: Servicing, Inspection & Maintenance

    Dirt or dust buildup can limit the ability for the OCTO to dissipate heat and can lead to damage. If deemed necessary for an OCTO to be replaced, it should be removed in a reverse order to the installation process within this document.

  • Page 28: Cleaning

    Cleaning Dust and dirt build up can limit the ability for the OCTO to dissipate heat resulting in damage. It’s important that the OCTO is cleaned in a schedule fit for the environment it is installed within to ensure maximum product longevity.

  • Page 29: Package Contents

    OCTO – 71521 Visit the ENTTEC website for the latest version Package contents  OCTO TS35 DIN Clip & screws   Read Me card Ordering information Product OCTO 71521 Visit www.enttec.com to browse compatible pixel products and control system components.
