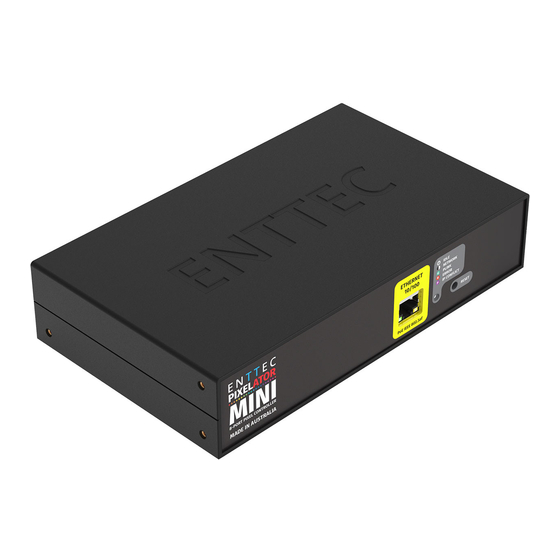

PIXELATOR MINI
70067
User Manual
16 Universes (8 outputs) master SPI pixel controller for a PLINK system.
Document Updated: December 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXELATOR MINI and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec PIXELATOR MINI

Summary of Contents for Enttec PIXELATOR MINI

  • Page 1 PIXELATOR MINI 70067 User Manual 16 Universes (8 outputs) master SPI pixel controller for a PLINK system. Document Updated: December 2022...

  • Page 2: Table Of Contents

    I’m unable to connect to the PIXELATOR MINI web interface....................... 12 What if my LED strip protocol is not in drop down list? How to add new LED strip protocol to PIXELATOR MINI? . 12 Servicing, Inspection & Maintenance ..................................13 Cleaning ............................................

  • Page 3: Safety

    ENTTEC documentation before specifying, installing, or operating an ENTTEC device. If you are in any doubt about system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide, contact ENTTEC or your ENTTEC supplier for assistance.

  • Page 4: Installation Safety Guidelines

    All network cabling should be terminated with an RJ45 connector in accordance with the T-568B standard.  Always use suitable personal protective equipment when installing ENTTEC products.  Once installation is completed, check that all hardware and components are securely in place and ...

  • Page 5: Functional Features

    PLINK INJECTORs (Sold Separately) From one of the PIXELATOR MINI’s PLINK Data outputs, you can run up to 300m of Cat6 cable to a single PLINK INJECTOR. Since all data conversion is processed on the PIXELATOR MINI, the PLINK INJECTOR is kept as compact as possible.

  • Page 6: Led Status Indicator

    DHCP server, the PIXELATOR MINI will request an IP address from the server. If the DHCP server is slow to respond, or your network does not have a DHCP server, the PIXELATOR MINI will fall back to the IP address 192.168.0.10 and netmask 255.255.255.0.

  • Page 7: Web Interface

    Note: As the PIXELATOR MINI is hosting a web server on the local network and does not feature an SSL Certificate (used to secure online content), the web browser will display the ‘Not secure’ warning, this is to be expected.

  • Page 8: Settings

    Note: The timer will not restart when pressed consecutively. Settings The PIXELATOR MINI can be configured within the Settings tab. Changes will only take affect after being saved; any unsaved changes will be discarded. Node Name: The name of PIXELATOR MINI will be discoverable within Poll replies.
  • Page 9 Art-Net: Supports Art-NET 1/2/3/4. Each output port can be assigned a universe number in the range 0  to 32767. sACN: Outputs can be assigned a universe number in the range 1-63999. Please note the PIXELATOR MINI  supports a maximum of 1 multicast universe with sACN sync. (i.e., all universes set to the same value) ESP: Outputs can be assigned a universe number in the range 0-255.

  • Page 10: Network Stats

    ▪ Example: When Group Pixels is set to 10 on a PIXELATOR MINI connected to a length of RGB pixel strip, by patching a single RGB pixel within your control software and sending the values to the PIXELATOR MINI, the first 10 LEDs would respond to it.

  • Page 11: Update Firmware

    Reset to Factory Defaults The PIXELATOR MINI can be reset by either the web interface or the reset button on the device. It resumes the device’s settings back to factory default, see Out of the Box section for the factory default settings.

  • Page 12: Resetting By Reset Button

    What if my LED strip protocol is not in drop down list? How to add new LED strip protocol to PIXELATOR MINI? The PIXELATOR MINI allows the user to choose a pixel output protocol even it is not found in the drop-down list.

  • Page 13: Servicing, Inspection & Maintenance

    Do not spray device or accessories. The device is an IP20 product.  To clean an ENTTEC device, use low-pressure compressed air to remove dust, dirt and loose particles. If deemed necessary, wipe the device with a damp microfiber cloth.

  • Page 14: Package Content

    Use the Serial Number to claim free license for ELM software unless there is a Promo Code sticker on  the device. The ELM Promo code sticker is implemented from PIXELATOR MINI (70067) SN:0050C20845D6 onwards. Ordering information For further support and browse ENTTEC’S range of products, visit the ENTTEC website...
