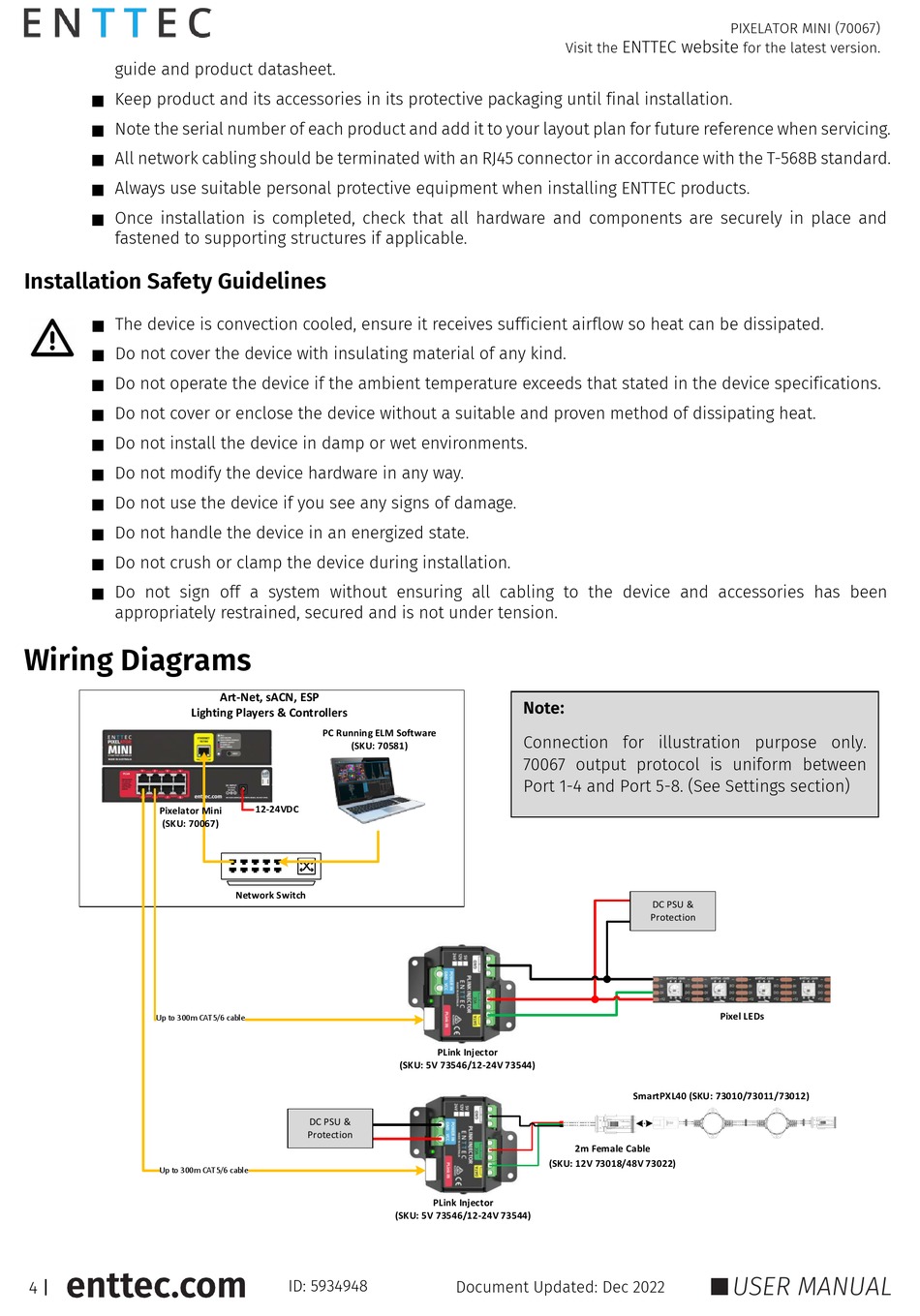

Installation Safety Guidelines; Wiring Diagrams - Enttec PIXELATOR MINI User Manual

guide and product datasheet.
Keep product and its accessories in its protective packaging until final installation.

Note the serial number of each product and add it to your layout plan for future reference when servicing.

All network cabling should be terminated with an RJ45 connector in accordance with the T-568B standard.

Always use suitable personal protective equipment when installing ENTTEC products.

Once installation is completed, check that all hardware and components are securely in place and

fastened to supporting structures if applicable.

Installation Safety Guidelines

The device is convection cooled, ensure it receives sufficient airflow so heat can be dissipated.

Do not cover the device with insulating material of any kind.

Do not operate the device if the ambient temperature exceeds that stated in the device specifications.

Do not cover or enclose the device without a suitable and proven method of dissipating heat.

Do not install the device in damp or wet environments.

Do not modify the device hardware in any way.

Do not use the device if you see any signs of damage.

Do not handle the device in an energized state.

Do not crush or clamp the device during installation.

Do not sign off a system without ensuring all cabling to the device and accessories has been

appropriately restrained, secured and is not under tension.

Wiring Diagrams

Lighting Players & Controllers
Pixelator Mini
(SKU: 70067)
Up to 300m CAT5/6 cable
Up to 300m CAT5/6 cable
4 |
Art-Net, sACN, ESP
PC Running ELM Software
(SKU: 70581)
12-24VDC
Network Switch
DC PSU &
Protection
ID: 5934948
Visit the
Note:
Connection for illustration purpose only.
70067 output protocol is uniform between
Port 1-4 and Port 5-8. (See Settings section)
PLink Injector
(SKU: 5V 73546/12-24V 73544)
(SKU: 12V 73018/48V 73022)
PLink Injector
(SKU: 5V 73546/12-24V 73544)
Document Updated: Dec 2022
PIXELATOR MINI (70067)
ENTTEC website
for the latest version.
DC PSU &
Protection
Pixel LEDs
SmartPXL40 (SKU: 73010/73011/73012)
2m Female Cable
USER MANUAL

