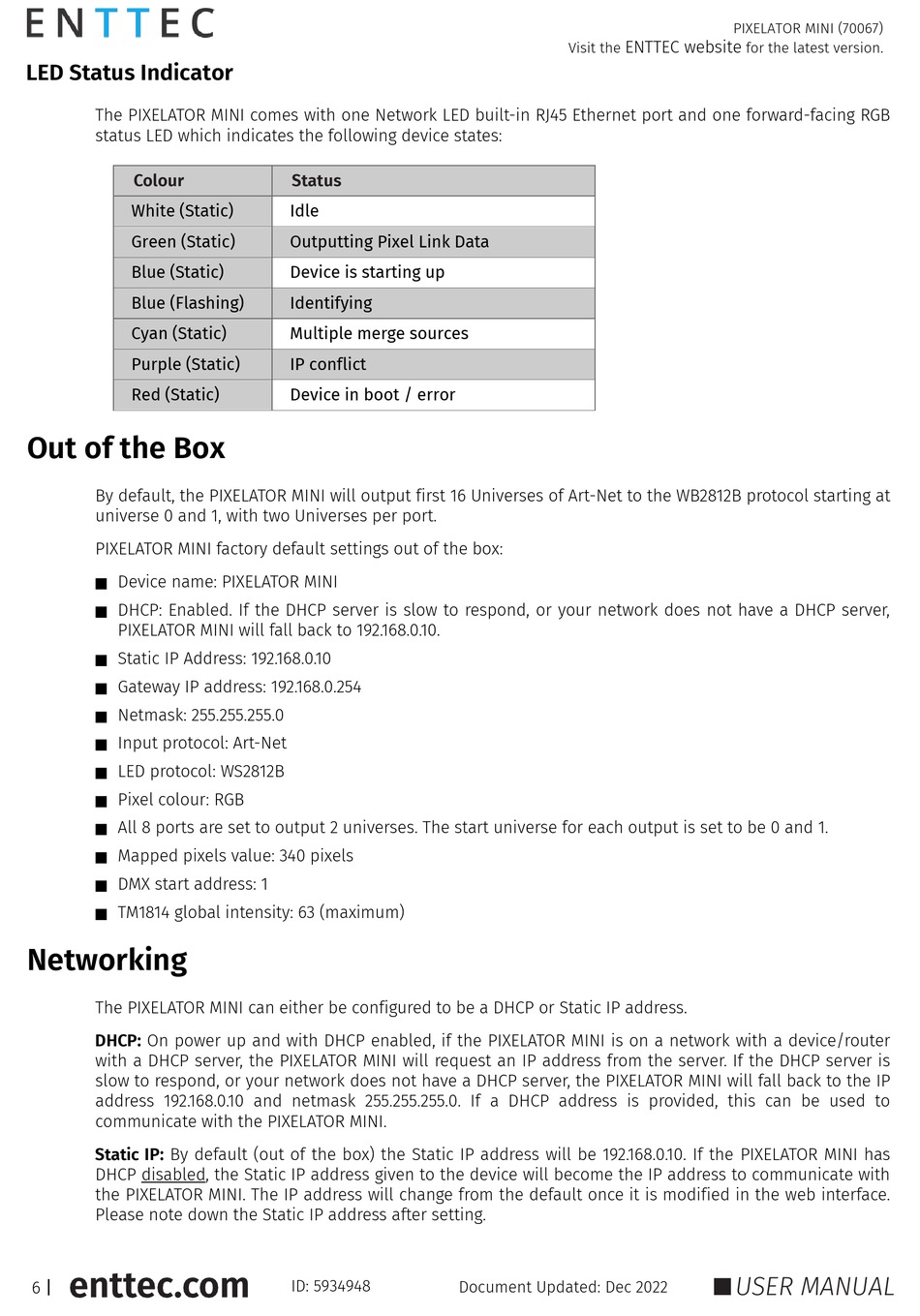

LED Status Indicator

The PIXELATOR MINI comes with one Network LED built-in RJ45 Ethernet port and one forward-facing RGB
status LED which indicates the following device states:
Colour
White (Static)
Green (Static)
Blue (Static)
Blue (Flashing)
Cyan (Static)
Purple (Static)
Red (Static)

Out of the Box

By default, the PIXELATOR MINI will output first 16 Universes of Art-Net to the WB2812B protocol starting at
universe 0 and 1, with two Universes per port.
PIXELATOR MINI factory default settings out of the box:
Device name: PIXELATOR MINI

DHCP: Enabled. If the DHCP server is slow to respond, or your network does not have a DHCP server,

PIXELATOR MINI will fall back to 192.168.0.10.
Static IP Address: 192.168.0.10

Gateway IP address: 192.168.0.254

Netmask: 255.255.255.0

Input protocol: Art-Net

LED protocol: WS2812B

Pixel colour: RGB

All 8 ports are set to output 2 universes. The start universe for each output is set to be 0 and 1.

Mapped pixels value: 340 pixels

DMX start address: 1

TM1814 global intensity: 63 (maximum)


Networking

The PIXELATOR MINI can either be configured to be a DHCP or Static IP address.
DHCP: On power up and with DHCP enabled, if the PIXELATOR MINI is on a network with a device/router
with a DHCP server, the PIXELATOR MINI will request an IP address from the server. If the DHCP server is
slow to respond, or your network does not have a DHCP server, the PIXELATOR MINI will fall back to the IP
address 192.168.0.10 and netmask 255.255.255.0. If a DHCP address is provided, this can be used to
communicate with the PIXELATOR MINI.
Static IP: By default (out of the box) the Static IP address will be 192.168.0.10. If the PIXELATOR MINI has
DHCP disabled, the Static IP address given to the device will become the IP address to communicate with
the PIXELATOR MINI. The IP address will change from the default once it is modified in the web interface.
Please note down the Static IP address after setting.
6 |
Status
Idle
Outputting Pixel Link Data
Device is starting up
Identifying
Multiple merge sources
IP conflict
Device in boot / error
