Enttec Pixelator Mini Application Manual

Hide thumbs Also See for Pixelator Mini:

Advertisement

Table of Contents

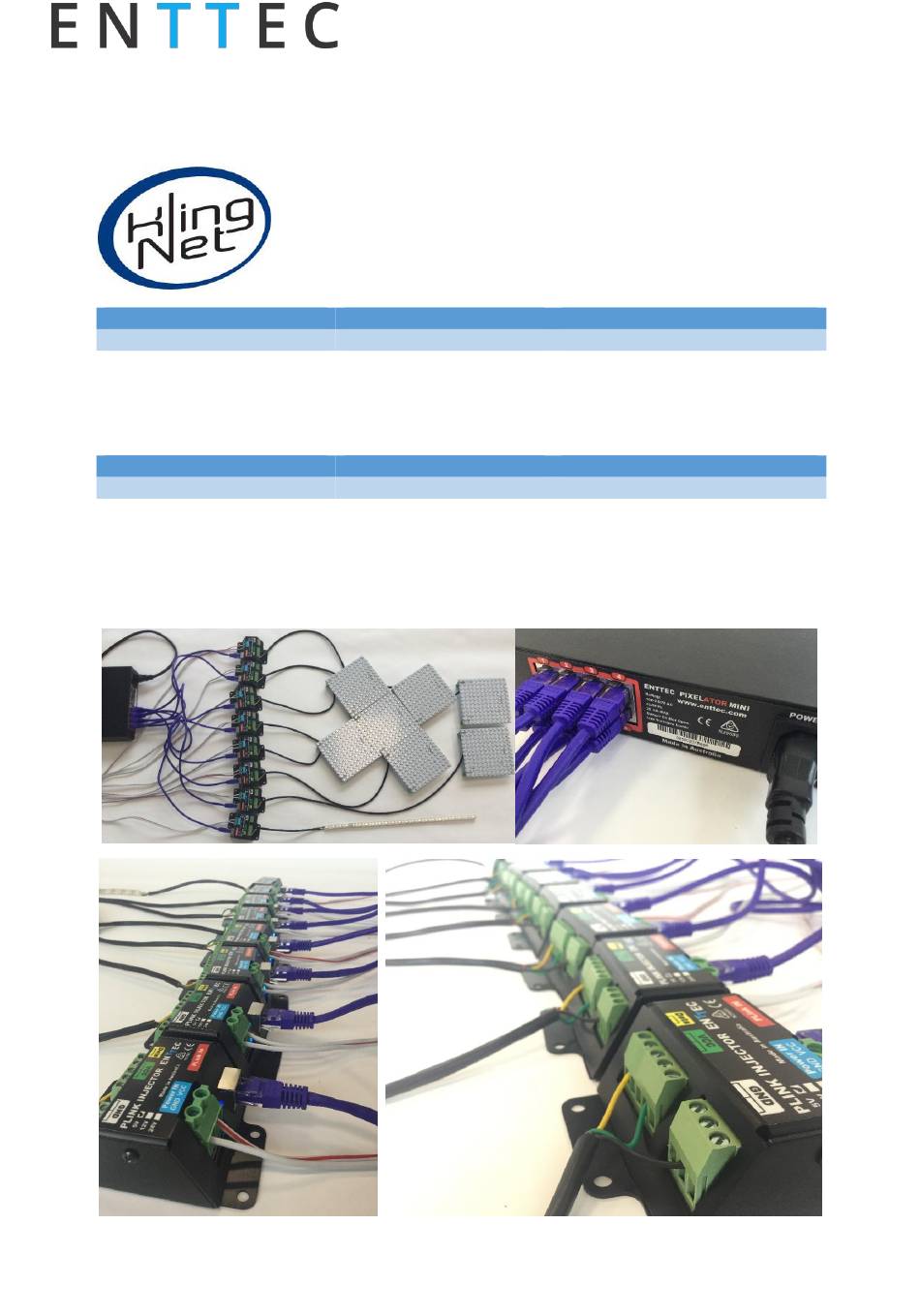

Kling Net Application Guide
Pixel Product
12*12 WS2812b Pixel Tile
60 px/m LED WS2812b strip
-The pixel products in this guide have been connected to the Pixelator Mini through ENTTEC's P-
Link System. Using this same system, Phero Battens can also be mapped.
Control Product

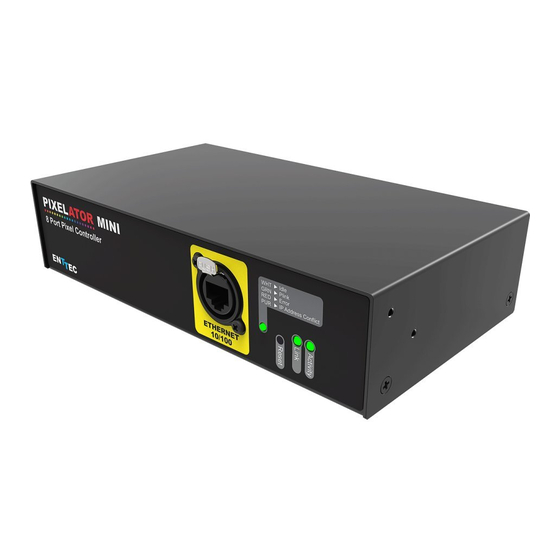

Pixelator Mini
5V PLink Injector
*DC Power should be provided locally at each Plink Injector.
This setup guide will step through using Arkaos' Kling-Net Mapper
software in conjunction with an ENTTEC Pixelator Mini in order to map a
number of shapes.
This guide steps through the process of configuring the following pixel
products:
Quantity
7
1
Quantity
1
8
Pixelator-Mini
Setup Guide
Product Number
8PS144-125
8PL60
Product Number
70066
73546
KlingNet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pixelator Mini and is the answer not in the manual?

Questions and answers

Related Manuals for Enttec Pixelator Mini

Summary of Contents for Enttec Pixelator Mini

  • Page 1 12*12 WS2812b Pixel Tile 8PS144-125 60 px/m LED WS2812b strip 8PL60 -The pixel products in this guide have been connected to the Pixelator Mini through ENTTEC’s P- Link System. Using this same system, Phero Battens can also be mapped. Control Product Quantity...
  • Page 2 Setup Guide Configuration of the Pixelator Mini After Plugging in your Pixelator Mini to your network, launch Enttec NMU on your computer to find the IP address of the unit. From here you can open the web page: Navigate to the settings tab within the web interface and select ‘Kling-Net’ in the dropdown menu.
  • Page 3 The first row of the outputs will allow you to configure your pixel ordering for each port using the dropdown menu’s. -Each port on the rear of the Pixelator Mini Should be thought of as a ‘virtual fixture’ and will appear as such within the KlingNet Mapper software.
  • Page 4 Pixelator-Mini KlingNet Setup Guide After the number of pixels used per port are assigned, using the PixelPatch row select the way in which your pixels have been connected to eachother. Hovering your cursor over the ‘Pixel Patch title will show what layout corresponds to each number. Once this has been completed click ‘Save Settings’, and wait for the page to refresh.
  • Page 5 After all KlingNet devices have been discovered on the network, you will be presented with a list of fixtures. Each of the Ports on the rear of the Pixelator Mini will show up as individual fixtures (each with the same dimensions and pixel ordering as defined in the Pixelator Mini Web Interface). Drag each of these shapes onto the test card and arrange them to suit using the mappers inbuilt tools.
  • Page 6 Pixelator-Mini KlingNet Setup Guide Rotate all ‘virtual fixtures’ to the correct orientation and scaling. By selecting each of them and moving to the correct size for the canvas port and moving it to suit the correct positioning. Once satisfied, if necessary use (Ctrl+shift+r) in order to re-size your canvas to be as close to your mapped objects as possible.
  • Page 7 Pixelator-Mini KlingNet Setup Guide If MediaMaster is configured correctly to output to KlingNet Mapper your LED panels, dots and Pixel Tape plugged into each Plink Port should function like independant5 KlingNet Fixtures.
