Settings

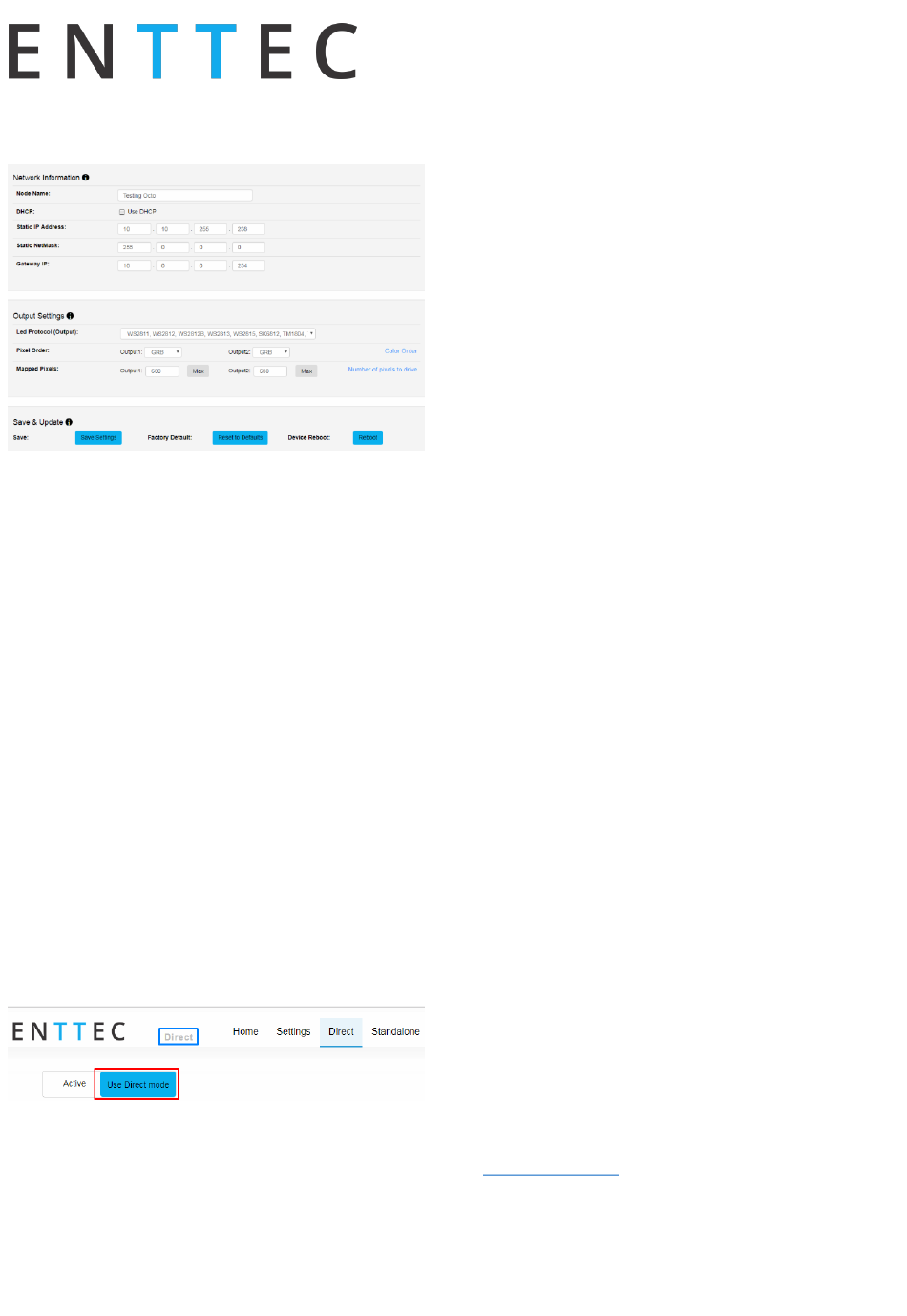

The Settings page allows a user to do the following:
•
Change a device name for identification
•
Enable/disable DHCP
•
Specify static network settings
•
Set the output LED Protocol
•
Set the number of mapped pixels
•
Configure how colours are mapped to pixels
•
Reset to factory defaults
•
Reboot device

Direct

Direct can be activated by clicking on the Use
Direct mode button in the Direct page as shown in
the image below
When activated, the word Direct will be displayed
next to the ENTTEC logo as shown in the image.
10 December 2019

DMX Protocols

KiNET
Supported commands:
•
Discover device
•
Discover ports on device
•
Change device name
•
Change device IP
•
Portout commands
•
DMX out commands
•
KGet Command
o KGet Subnet Mask
o KGet Gateway
o KGet port universe (port 1 and 2)
•
KSet commands
o KSet Subnet Mask
o KSet Gateway
o KSet port universe (port 1 and 2)
o KSet device to boot
Art-NET
Supports Art-NET 1/2/3. Each output can be
assigned a start universe in the range 0 to 32764
(when universe/output = 4).
sACN
Outputs can be assigned a start universe in the
range 1-63996 (when universe/output = 4). 1
multicast universe is supported for sACN sync.
ESP
Outputs can be assigned a start universe in the
range 0-252 (when universe/output = 4). More
details of the ESP protocol can be found at
www.enttec.com
