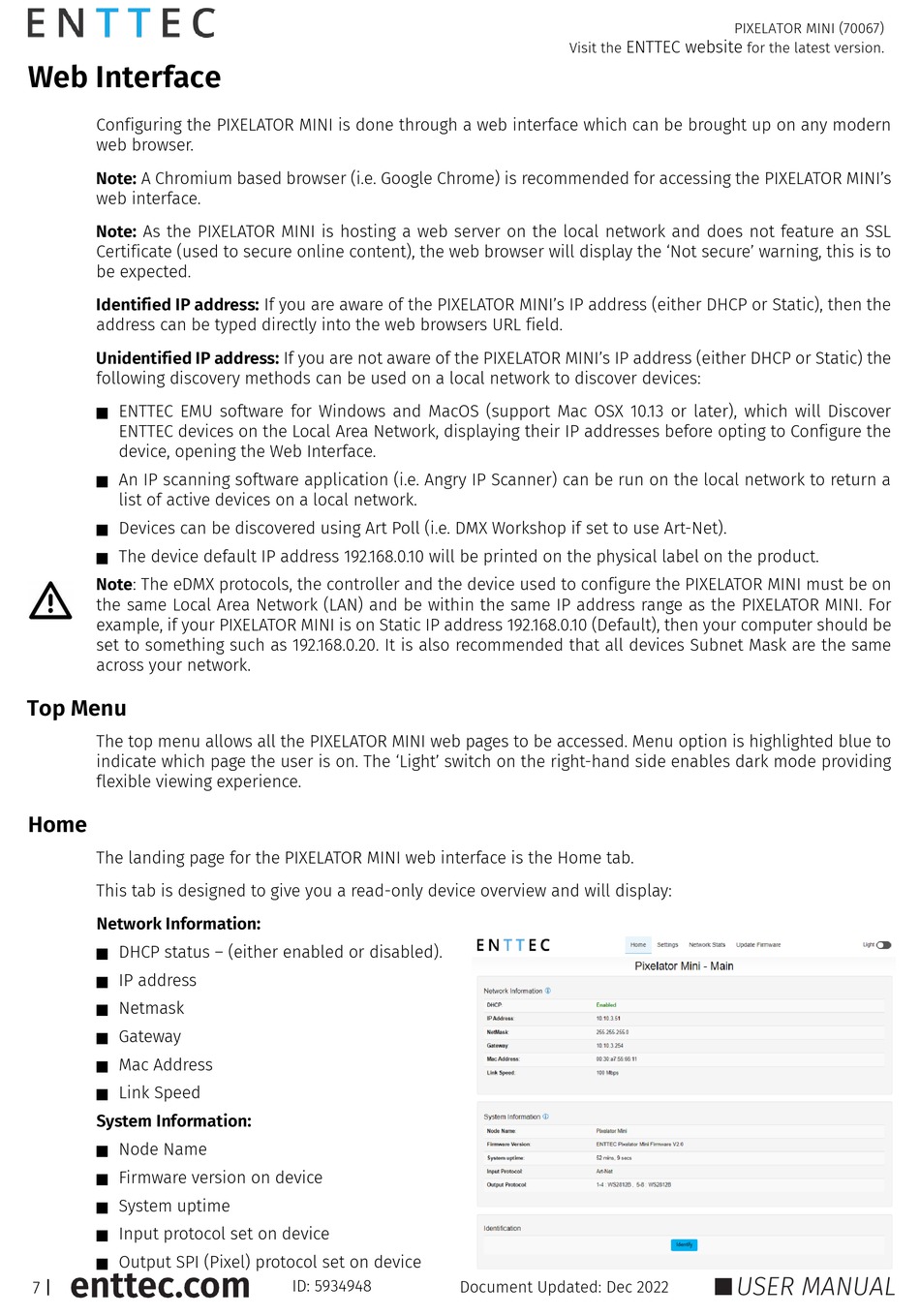

Web Interface

Configuring the PIXELATOR MINI is done through a web interface which can be brought up on any modern
web browser.
Note: A Chromium based browser (i.e. Google Chrome) is recommended for accessing the PIXELATOR MINI's
web interface.
Note: As the PIXELATOR MINI is hosting a web server on the local network and does not feature an SSL
Certificate (used to secure online content), the web browser will display the 'Not secure' warning, this is to
be expected.
Identified IP address: If you are aware of the PIXELATOR MINI's IP address (either DHCP or Static), then the
address can be typed directly into the web browsers URL field.
Unidentified IP address: If you are not aware of the PIXELATOR MINI's IP address (either DHCP or Static) the
following discovery methods can be used on a local network to discover devices:
ENTTEC EMU software for Windows and MacOS (support Mac OSX 10.13 or later), which will Discover

ENTTEC devices on the Local Area Network, displaying their IP addresses before opting to Configure the
device, opening the Web Interface.
An IP scanning software application (i.e. Angry IP Scanner) can be run on the local network to return a

list of active devices on a local network.
Devices can be discovered using Art Poll (i.e. DMX Workshop if set to use Art-Net).

The device default IP address 192.168.0.10 will be printed on the physical label on the product.

Note: The eDMX protocols, the controller and the device used to configure the PIXELATOR MINI must be on
the same Local Area Network (LAN) and be within the same IP address range as the PIXELATOR MINI. For
example, if your PIXELATOR MINI is on Static IP address 192.168.0.10 (Default), then your computer should be
set to something such as 192.168.0.20. It is also recommended that all devices Subnet Mask are the same
across your network.

Top Menu

The top menu allows all the PIXELATOR MINI web pages to be accessed. Menu option is highlighted blue to
indicate which page the user is on. The 'Light' switch on the right-hand side enables dark mode providing
flexible viewing experience.

Home

The landing page for the PIXELATOR MINI web interface is the Home tab.
This tab is designed to give you a read-only device overview and will display:
Network Information:
DHCP status – (either enabled or disabled).

IP address

Netmask

Gateway

Mac Address

Link Speed

System Information:
Node Name

Firmware version on device

System uptime

Input protocol set on device

Output SPI (Pixel) protocol set on device

