Enttec Pro MKII Manual

DMX USB Pro Controller MK II
Box Contents

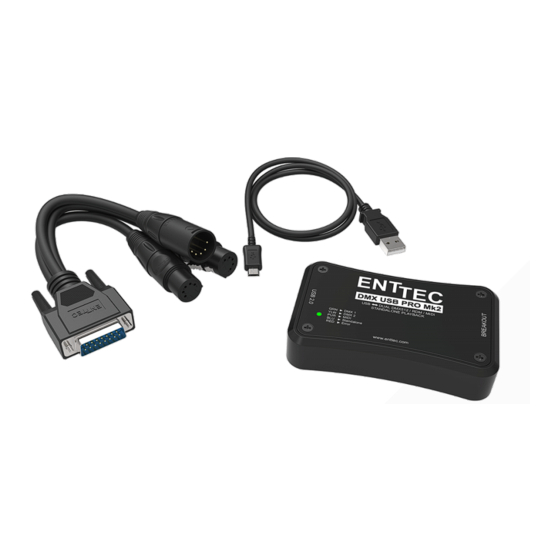

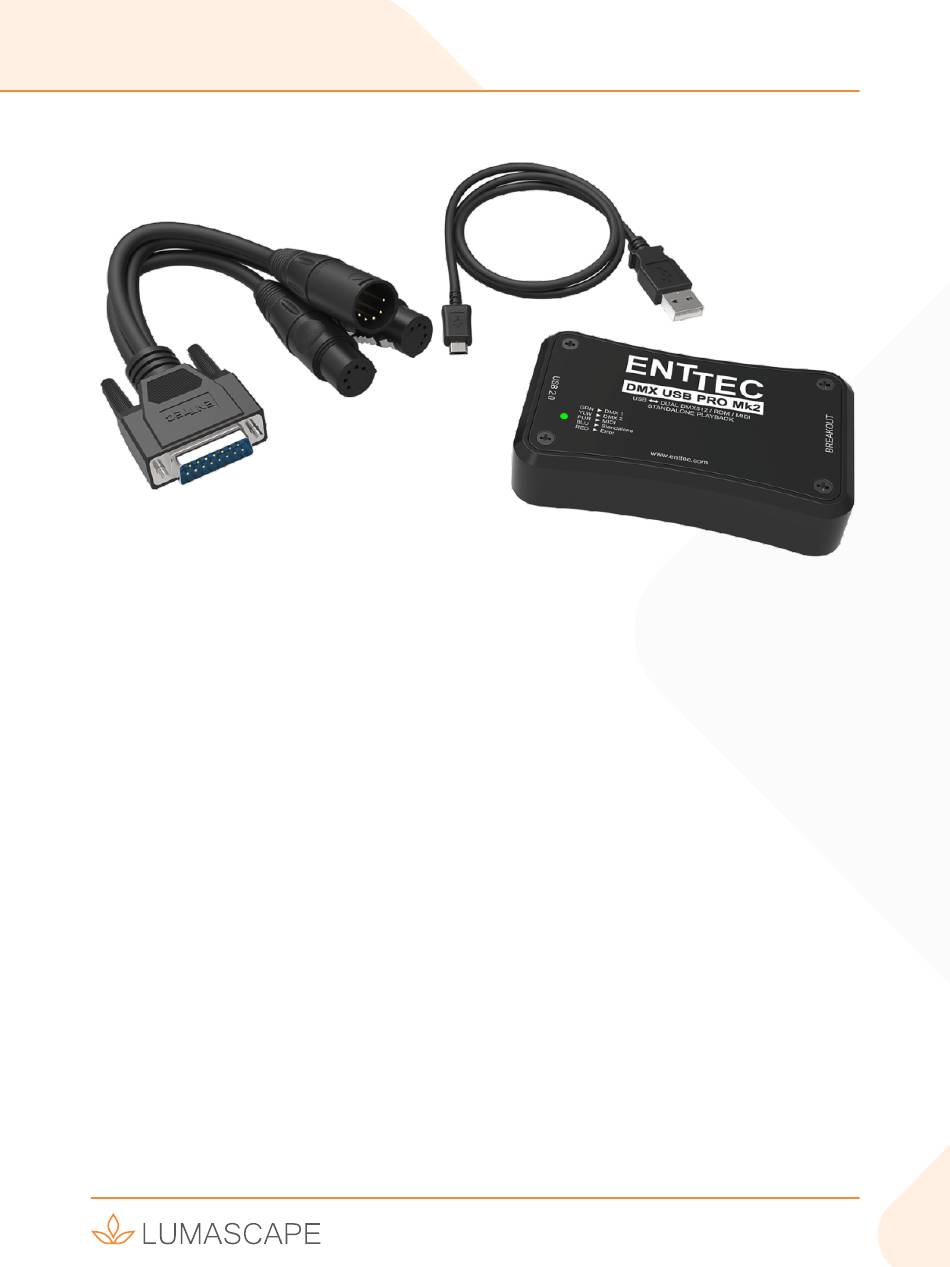

• PRO Mk2 (pn: 70314)
• Micro USB Cable (pn: 50282)
• DMX Breakout cable 0.1M - DB15 to 3x 5pin DMX
(pn: 79146)
• This user manual
Features
Two universes (512 channel each) of input or
•
output (one per DMX port)
• Standalone mode: playback a single recorded
DMX show on power-up
• Midi input & output ports (DMX + MIDI cable sold
separately) – MIDI needs software support
• Fully compliant with USITT DMX512-A
• Adjustable Frame Rates and empty frames to
accommodate non-standard equipment
• USB 2.0 Support on Windows PC and Mac OSX
• 1500 V full isolation (data & power lines to
protect your computer from surges)
• RDM enabled (ANSI E1.20 compliant)
• Drivers for Windows, OSX and Linux (drivers
released and maintained by FTDI)
• Output refresh rate configurable from 1 to 40 Fps
(Frames per second)
• Compatible with
professional lighting control programs.
1
( P N 7 0 3 1 4 )
various open-source and
www.lumascape.com
Safety
• Do not expose the PRO Mk2 to rain or moisture,
doing this will void the warranty
• Do not remove the cover, there are no serviceable
parts inside
• This unit is intended for indoor use only
• Wherever possible, use with a DMX Splitter for safety
and better reliability with DMX cables.
Basic Setup
• Install and configure the Driver software on your
Windows™, Linux™ or Mac™ computer.
• Methods can vary between Operating systems, but
the end result is the same: once installed correctly,
the drivers will allow software to communicate with
the PRO Mk2.
• Connect the PRO Mk2 to your computer (USB) and
the DMX512 control network (DMX cable).
• Load the control software of your choice onto the
computer. You can choose between open-source
(free) and professional (paid) programs. More
information is available at www.enttec.com/dmx
• Run the software and create your show.
• For troubleshooting, testing (DMX and MIDI) and
using standalone mode on PRO Mk2, install and run
PRO-Manager.
