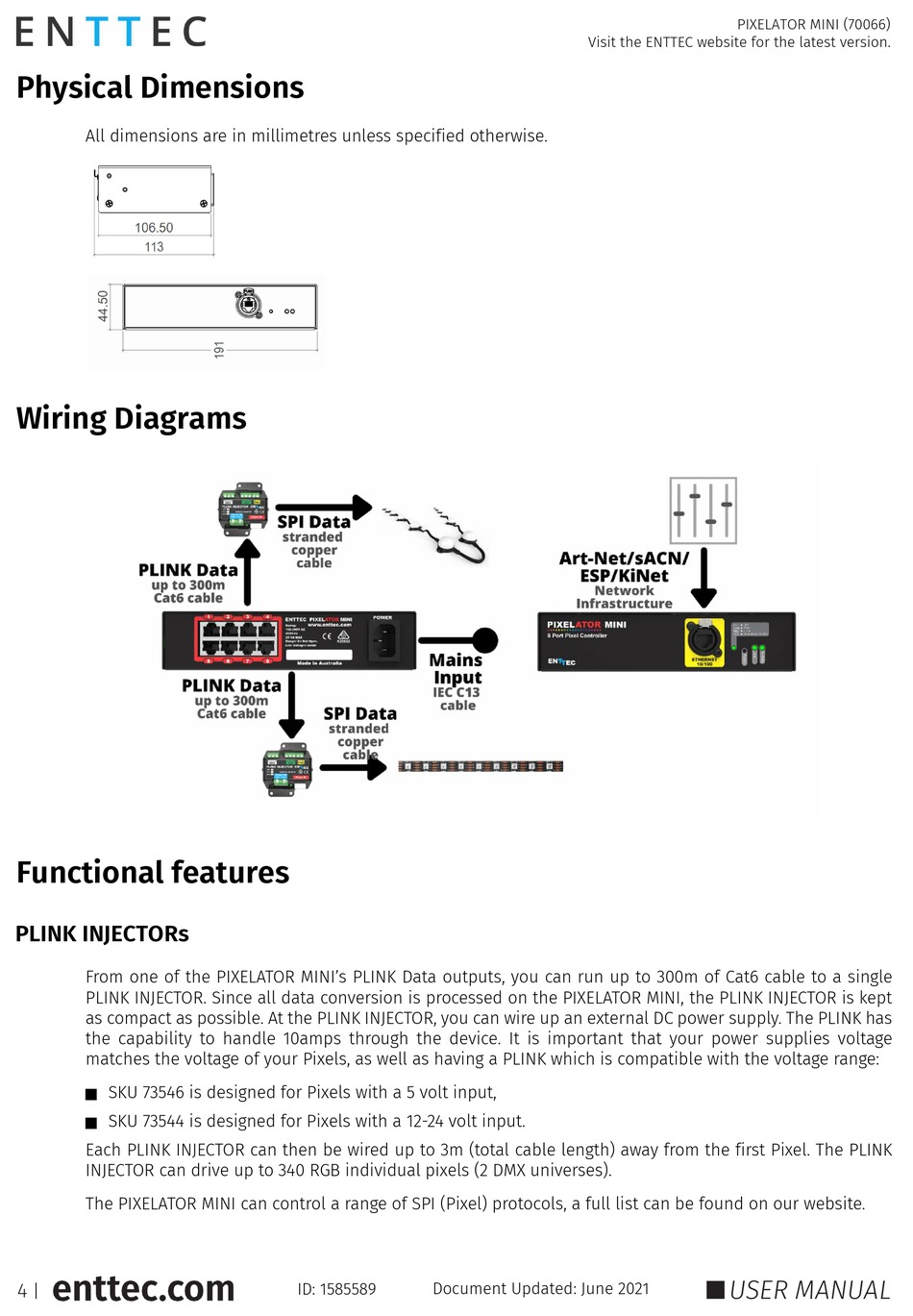

Physical Dimensions; Wiring Diagrams; Functional Features; Plink Injectors - Enttec PIXELATOR MINI User Manual

Physical Dimensions

All dimensions are in millimetres unless specified otherwise.

Wiring Diagrams

Functional features

PLINK INJECTORs

From one of the PIXELATOR MINI's PLINK Data outputs, you can run up to 300m of Cat6 cable to a single
PLINK INJECTOR. Since all data conversion is processed on the PIXELATOR MINI, the PLINK INJECTOR is kept
as compact as possible. At the PLINK INJECTOR, you can wire up an external DC power supply. The PLINK has
the capability to handle 10amps through the device. It is important that your power supplies voltage
matches the voltage of your Pixels, as well as having a PLINK which is compatible with the voltage range:
SKU 73546 is designed for Pixels with a 5 volt input,

SKU 73544 is designed for Pixels with a 12-24 volt input.

Each PLINK INJECTOR can then be wired up to 3m (total cable length) away from the first Pixel. The PLINK
INJECTOR can drive up to 340 RGB individual pixels (2 DMX universes).
The PIXELATOR MINI can control a range of SPI (Pixel) protocols, a full list can be found on our website.
