ATEN VE800 - HDMI Extender User Guide

ATEN VE800 - HDMI Extender User Guide

Advertisement

ATEN VE800 - HDMI Extender User Guide

Package Contents

1 VE800L (Local Unit)
1 VE800R (Remote Unit)
2 Power Adapters
4 Wall Mount Kits
1 User Guide

Requirements

Source Device(s)

  • HDMI Type A output connector(s)

Display Device

  • A display device or receiver with an HDMI Type A input connector

Cables

  • Use HDMI cables to connect the HDMI source and display device to the VE800L and the VE800R.
  • Use Cat 5e/6 cables to connect the VE800L to the VE800R

Note: Cables are not included in this package. We strongly recommend that you purchase high-quality cables of appropriate length since this will affect the quality of the audio and video display. Contact your dealer to purchase the correct cable sets.

Maximum cable distances are as follows:
40 m at 1080p
60 m at 1080i

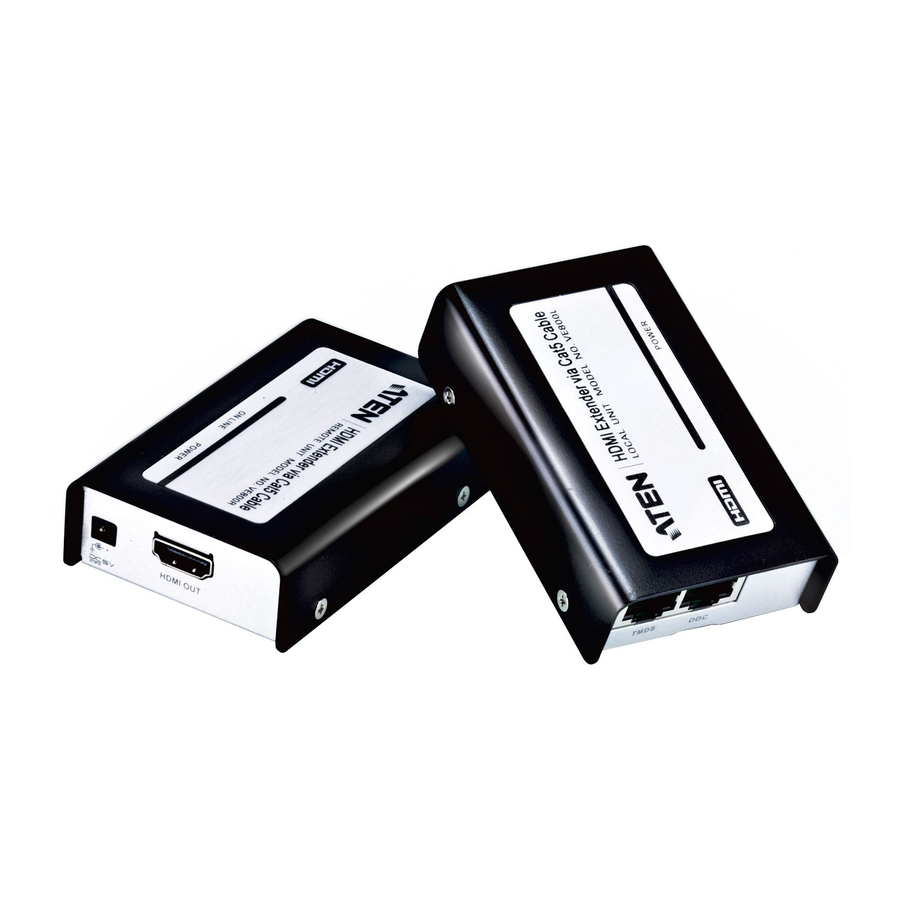

Hardware Review (A)

Hardware Review

VE800L / VE800R Left Side View

  1. Power LED (top cover)
  2. TMDS Port(Transition-Minimized Differential Signaling)
  3. DDC Port
  4. EQ Switch (VE800R only)

VE800L / VE800R Right Side View

  1. On Line LED (top cover, VE800R only)
  2. Power Jack
  3. HDMI In Port (VE800L) / HDMI Out Port (VE800R)

Hardware Installation (B)

Hardware Installation

  • Before beginning the installation procedure, ensure that all equipment to be connected is powered off.
  1. Connect one end of the HDMI cable to the HDMI Out port on the source device (e.g. computer or DVD player).
  2. Connect the other end of the HDMI cable to the HDMI In port on the VE800L.
  3. Use one Cat 5e/6 cable to connect the DDC port on the VE800L to the DDC port on the VE800R.
  4. Use a second Cat5e/6 cable to connect the TMDS port on the VE800L to the TMDS port on the VE800R.
  5. Plug the monitor's HDMI cable into the HDMI out port on the VE800R.
  6. Using the two power adapters supplied with this package, connect the VE800L and the VE800R to an AC power outlet.
  7. Turn on the source and display devices.

Picture Adjustment

Use the EQ switch to adjust the equalization strength to improve a flickering or blinking image. 0 = strongest EQ; 7 = weakest EQ

Specifications

Function VE800L VE800R
Device Connections 1 N/A
Connectors Display HDMI Out N/A 1 x HDMI Type A 19-pin Female
Device HDMI In 1 x HDMI Type A 19-pin Female N/A
Unit to Unit 2 x RJ-45 Female 2 x RJ-45 Female
Power Jack 1 x DC Jack 1 x DC Jack
Switches EQ Adjustment N/A 1 x 8-position switch
LEDs Power Orange Orange
On Line N/A Green
HDMI Resolution HDTV resolutions: 480p, 720p, 1080i. 1080p (1920 x 1080); PC resolutions: VGA, SVGA, SXGA, UXGA, WUXGA (1920 x 1200)
Power Consumption DC5V,1.22W DC5V,0.95W
Environment Operation Temp. 0-50°C
Storage Temp. -20°-60°C
Humidity 0 80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.16kg
Dimensions 9.00x5.50x2.40cm

Online Registration

International:

North America:

Technical Phone Support

International:

  • 886-2-86926959

North America:

  • 1-888-999-ATEN (ATEN TECH)
  • 1-732-356-1703 (ATEN NJ)

© Copyright 2008 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.

This product is RoHS compliant.

Manual Part No. PAPE-1285-P00G Printing Date: 10/2008
