Summary of Contents for ATEN VE802

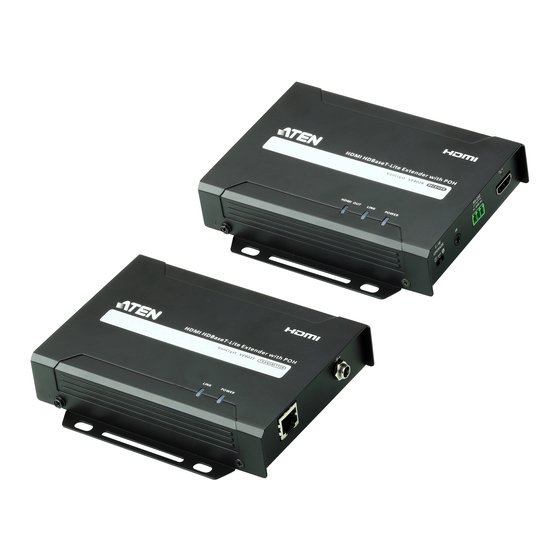

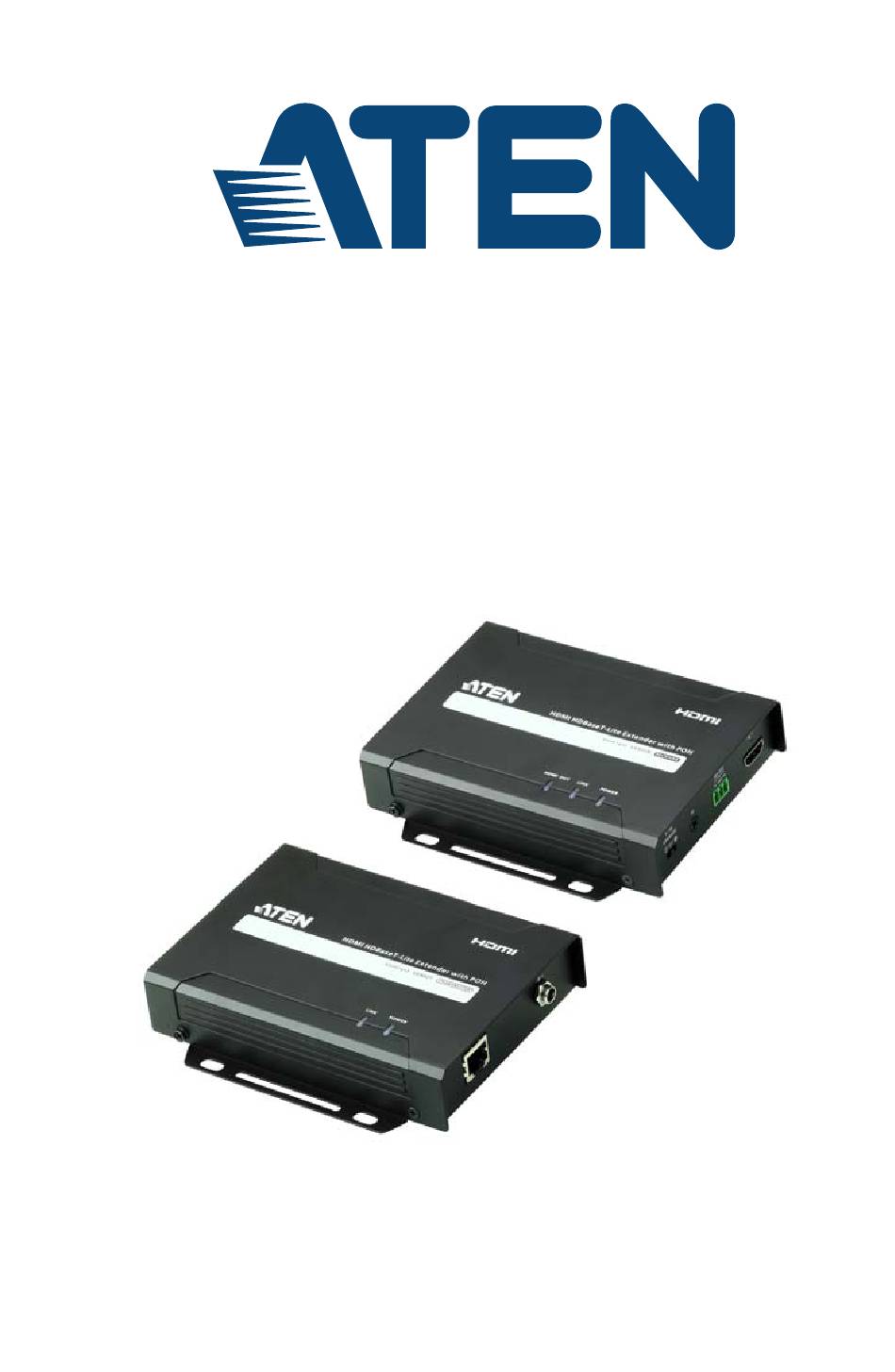

- Page 1 HDMI HDBaseT-Lite Extender with POH VE802 User Manual www.aten.com...
-
Page 2: Emc Information
VE802 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
VE802 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2015 ATEN® International Co., Ltd. Manual Date: 2015-05-11 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
Package Contents......... . . iv VE802 Package Contents ........iv VE802T Package Contents . -
Page 6: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE802 system. Its purpose, features and benefits are presented, and its front and back panel components are described. -
Page 7: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 8: Chapter 1 Introduction
Overview The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6 cable. VE802 supports RS- 232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). -
Page 9: Features
Chapter 1. Introduction Features HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6a cable HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screens POH (Power over HDBaseT) –... -
Page 10: Requirements
VE802 User Manual Requirements Display An HDMI display capable of the highest required resolution Source Device The following equipment is required: A source device with an HDMI port Cables Cat 5e cable is required to connect the Transmitter and Receiver units. -
Page 11: Components
VE802T. RS-232 Port You can connect the RS-232 main controller to the VE802, such as the PC or Control system. HDMI Input Port Connect the HDMI Input Port on the VE802T to the HDMI Output Port on the video source device using an HDMI cable. - Page 12 Connect an IR Receiver to the IR port on the VE802R. RS-232 Port You can connect RS-232 serial devices/ peripherals to the VE802, such as touchscreens and bar code scanners. HDMI Output Port Connect the HDMI display to this port.
- Page 13 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 14: Chapter 2. Hardware Setup
Keyboard Power On function. Setting Up Setting up the VE802 HDBaseT-Lite Extender system is simply a matter of plugging in the cables. Make sure that all the equipment to be connected are powered off, then refer to the installation diagram on the next page and do the following: 1. -
Page 15: Installation Diagram
Chapter 2. Hardware Setup Installation Diagram VE802R(R) VE802R(F) VE802T VE802T(R) VE802T(F) -
Page 16: Rs-232 Channel Transmission
VE802 User Manual RS-232 Channel Transmission You can connect RS-232 serial devices/peripherals to the VE802, such as touchscreens and bar code scanners. The RS-232 signal transmission flow is shown in the following example: From a source device, the RS-232 signal is transmitted (Tx) to the VE802T receiving (Rx) unit;... - Page 17 Chapter 2. Hardware Setup This Page Intentionally Left Blank...
-
Page 18: Chapter 3 Operation
Chapter 3 Operation LED Display The VE802 Transmitter and Receiver units have front panel LEDs to indicate their operating status, as shown in the tables, following: VE802T (Transmitter) and VE802R (Receiver) Indication Power (Green) Lights to indicate that the system is receiving power. - Page 19 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 20: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 21 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 22: Technical Support
VE802 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 23: Specifications
Appendix Specifications Function VE802 Video Input Interface 1 x HDMI Type A Female (Black) Impedance 100Ω Max distance 1.8m Video Output Interface 1 x HDMI Type A Female (Black) Impedance 100Ω Video Max. data rate 10.2Gbps (3.4Gbps per lane) Max. pixel clock... -
Page 24: Limited Warranty
VE802 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
