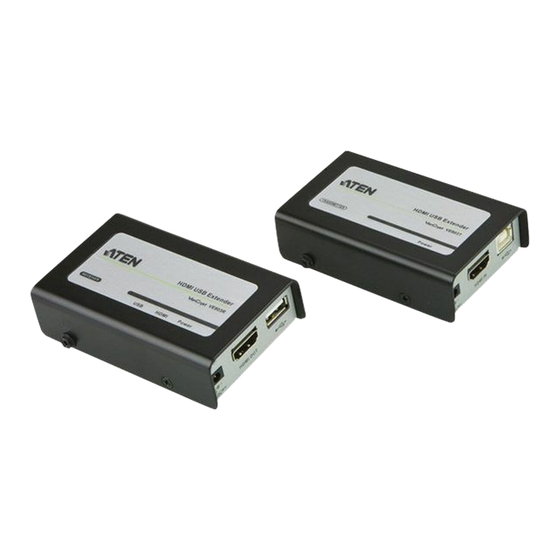

Hdmi usb extender

Advertisement

HDMI USB Extender
VE803
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE803 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATEN VE803

  • Page 1 HDMI USB Extender VE803 User Manual www.aten.com...
  • Page 2: Fcc Information

    VE803 User Manual FCC Information Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3: User Information

    VE803 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    © Copyright 2013 ATEN® International Co., Ltd. Manual Date: 2013-07-10 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
  • Page 5: Table Of Contents

    VE803 User Manual Contents FCC Information ..........ii RoHS.
  • Page 6: About This Manual

    An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE803 system. Its purpose, features and benefits are presented, and its front and back panel components are described.
  • Page 7: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8: Introduction

    Introduction Overview The VE803 HDMI USB Extender extends HDMI signals up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters, and 1080p signals up to 40 meters.
  • Page 9: Features

    Chapter 1. Introduction Features Uses two Cat 5e cables to connect the local and the remote units Extends 1080p by 40m; extends 1080i by 60m Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080), VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920x1200) Supports USB touch panels 8-segment Equalization adjustment switch optimizes display quality...
  • Page 10: Requirements

    VE803 User Manual Requirements Source Device The following equipment must be installed on the source device or computer: HDMI Type A output connector(s) Display Device A display device or receiver with an HDMI Type A input connector Cables Use HDMI cables to connect the HDMI source and display device to the...
  • Page 11: Components

    Chapter 1. Introduction Components VE803T Right View VE803T Left View Component Description Power LED Lights (green) to indicate that the unit is receiving power. Power Jack The power adapter cable plugs connects here. HDMI Input port Connect the HDMI source device to this port. USB Type B port Connect the source controller device to this port.
  • Page 12: Ve803R Right View

    VE803 User Manual VE803R Right View VE803R Left View Component Description LEDs Three LEDs – Power, HDMI, and USB – light (green) when the unit is properly connected to an appropriate source. Power Jack The power adapter cable plugs connects here.
  • Page 13 Chapter 1. Introduction This Page Intentionally Left Blank...
  • Page 14: Hardware Setup

    Keyboard Power On function. Installation Setting up the VE803 is a matter of plugging in all the cables. Refer to the installation diagram on the next page (the numbers in the diagram correspond to the numbered steps) and do the following: 1.
  • Page 15 2. Hardware Setup 5. Use a Cat 5e cable to connect the HDMI port on the VE803T to the HDMI port on the VE803R. 6. Use a second Cat 5e cable to connect the USB port on the VE803T to the USB port on the VE803R.
  • Page 16: Basic Operation

    In order to deliver the best video format, the VE803 is able to read the EDID information from the display and determine the best video resolution to send to the video source and program its resolution.
  • Page 17: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 18 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 19: Technical Support

    Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase.
  • Page 20: Specifications

    Appendix Specifications VE803R Function VE803T Connectors HDMI In 1 x HDMI Type A Female (Black) HDMI Out 1 x HDMI Type A Female (Black) 1 x USB Type B Female 1 x USB Type A Female (White) (White) HDMI/USB Port* 2 x RJ-45 Female (Silver) Power 1 x DC Jack (Black)
  • Page 21: Limited Warranty

    Appendix Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
