ATEN VE813 User Manual

ATEN VE813 User Manual

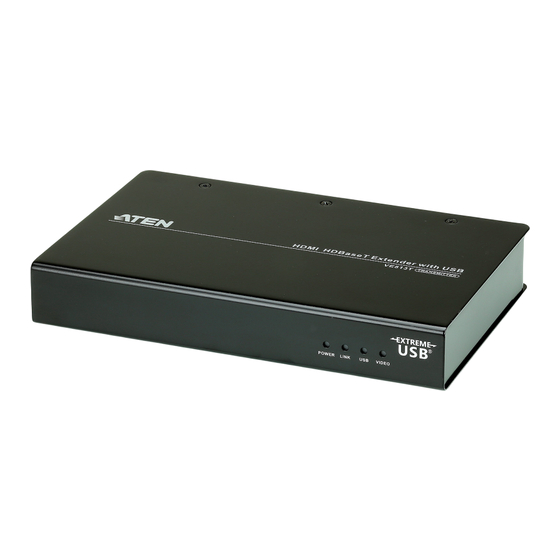

Hdmi hdbaset extender with usb

Advertisement

Quick Links

HDMI HDBaseT Extender with USB
VE813
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VE813 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATEN VE813

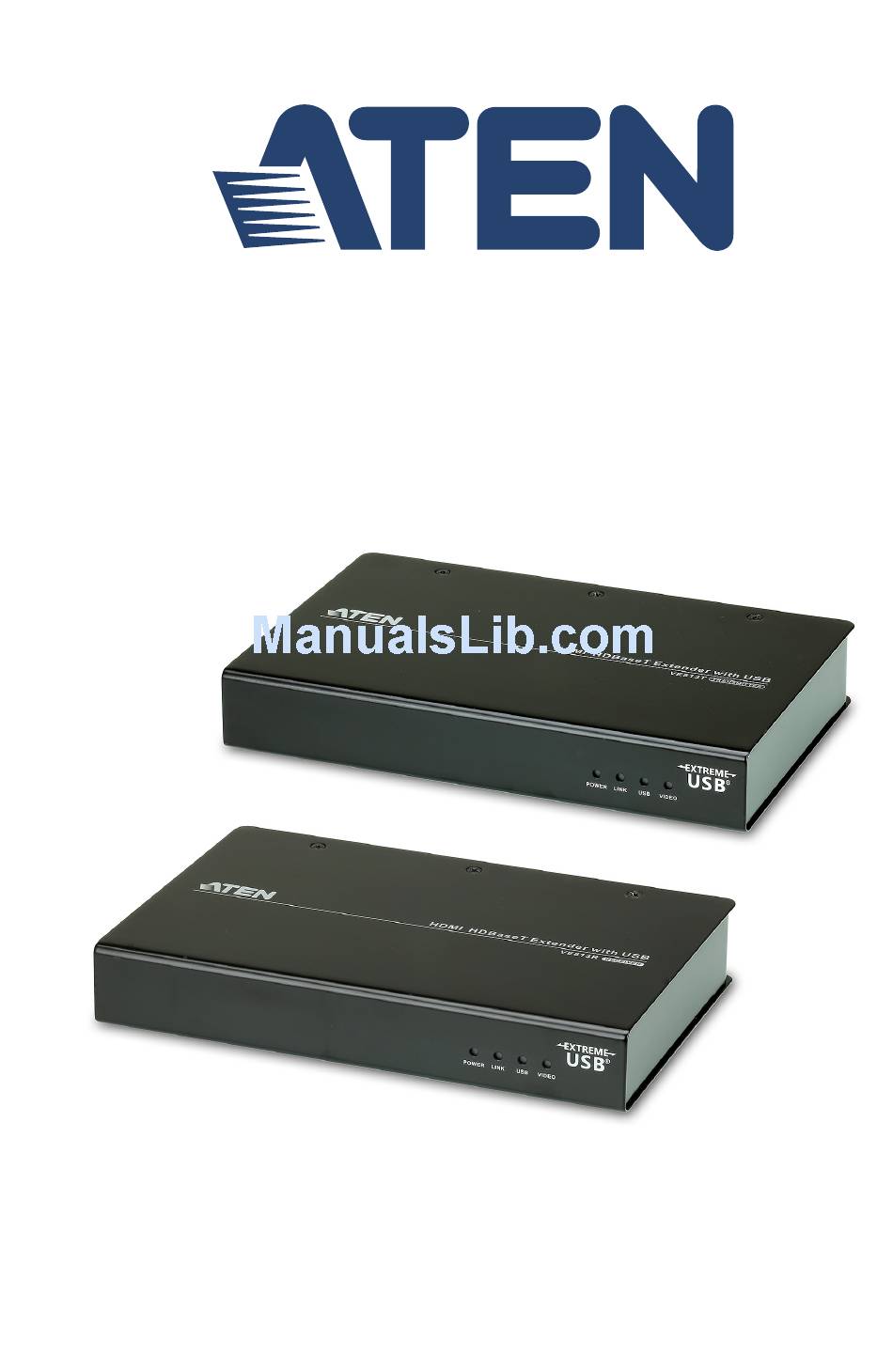

  • Page 1 HDMI HDBaseT Extender with USB VE813 User Manual www.aten.com...
  • Page 2: Rohs

    VE813 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: User Information

    VE813 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    © Copyright 2014 ATEN® International Co., Ltd. Manual Date: 2014-07-03 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
  • Page 5: Table Of Contents

    VE813 User Manual Contents FCC Information ..........ii RoHS.
  • Page 6: About This Manual

    An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE813 system. Its purpose, features and benefits are presented, and its front and back panel components are described.
  • Page 7: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8: Introduction

    HDMI signal up to 100 meters from the HDMI source using a single Cat 5e/6 cable. The VE813 supports HDMI features such as 3D, Deep Color, 4k2k, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality.
  • Page 9: Features

    USB 2.0 Support* – connects devices such as keyboard, mouse, flash drive, printer, microphone, speakers, USB 1.1 web cameras and other USB devices which require moderate amounts of bandwidth *Note: The VE813 supports USB transfer rates of up to 30 Mbps.
  • Page 10: Requirements

    VE813 User Manual Requirements Display An HDMI display capable of the highest resolution you will be using Source Device The following equipment is required: A source device with an HDMI port A computer or device that is USB compatible USB 1.1 or 2.0 compatible device...
  • Page 11: Operating Systems

    10 / 11.1 and higher Debian 3.1 / 4.0 Ubuntu 7.04 / 7.10 UNIX FreeBSD 5.5 / 6.1 / 6.2 Novell Netware 6.0 and higher OS 10.1 and higher Note: The VE813 does not support an OS that do not support USB.
  • Page 12: Components

    Firmware Upgrade The Firmware Upgrade Port is reserved for technical Port support. If you would like to upgrade the unit’s firmware yourself, please contact your ATEN dealer. HDMI In Port Connect an HDMI cable from the source device into this port.
  • Page 13: Ve813R (Receiver) Front And Rear View

    The Firmware Upgrade Port is reserved for technical Port support. If you would like to upgrade the unit’s firmware yourself, please contact your ATEN dealer. USB Type A Ports Your USB 2.0 devices plug in here. (keyboard, mouse, web cam, flash drive, printers, scanners, cameras,...
  • Page 14: Hardware Setup

    Keyboard Power On function. Rack Mounting For convenience and flexibility, the VE813 can be mounted on system racks. To rack mount a unit do the following: 1. Remove the two screws on the bottom of the VE813:...
  • Page 15 Chapter 2. Hardware Setup 2. Using the screws provided in the Mounting Kit, screw the mounting bracket on to the bottom of the unit as show in the diagram, below: 3. Screw the bracket into any convenient location on the rack. Note: These screws are not provided.
  • Page 16: Installation

    VE813 User Manual Installation Grounding To prevent damage to your installation it is important that all devices are properly grounded. 1. Use a grounding wire to ground both units by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable grounded object.
  • Page 17 Chapter 2. Hardware Setup 3. For increased grounding protection, use STP (shielded twisted pair) cable to connect the Transmitter and Receiver units. There are two methods that can be used: a) In addition to the eight paired wires, STP cable also contains a grounding wire.
  • Page 18: Setting Up

    VE813 User Manual Setting Up Setting up the VE813 HDMI Extender system is simply a matter of plugging in the cables. Make sure that all the equipment to be connected are powered off. Refer to the installation diagram on the following page and do the following: 1.
  • Page 19: Installation Diagram

    Chapter 2. Hardware Setup Installation Diagram VE813T Rear View Local PC HDMI USB cable cable Cat 5e cable VE813R Rear View USB Device...
  • Page 20: Operation

    Chapter 3 Operation LED Display The VE813 Transmitter and Receiver units have front panel LEDs to indicate their operating status, as shown in the tables, following: VE813T (Transmitter) and VE813R (Receiver) Indication Power (Green) Lights to indicate that the system is receiving power.
  • Page 21: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. This product is for indoor use only. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 22 VE813 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
  • Page 23: Mounting

    Appendix Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
  • Page 24: Technical Support

    VE813 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support...
  • Page 25: Specifications

    Appendix Specifications Function VE813T VE813R Connectors HDMI In 1 x HDMI Type A Female (Black) HDMI Out 1 x HDMI Type A Female (Black) 1 x USB Type B Female 3 x USB Type A Female (White) (White) Power 1 x DC Jack (Black) F/W Upgrade 1 x RJ-11 Female (Black) Unit to Unit...
