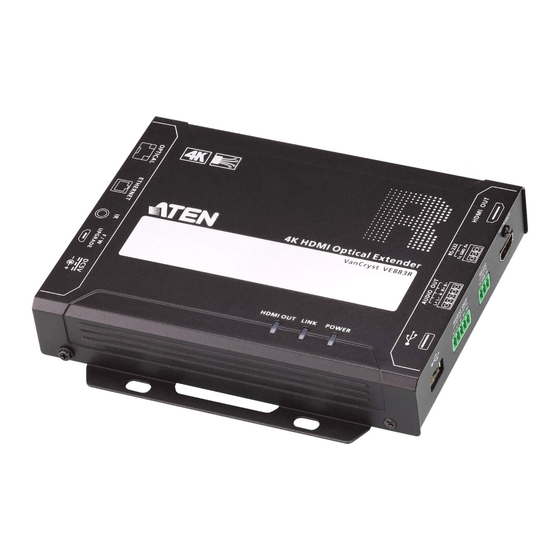

- Page 1 ATEN VanCryst™ VE883 4K HDMI Op cal Extender User Manual...
-
Page 2: Compliance Statements
VE883 User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 3 VE883 User Manual HDMI Trademark Statement The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. RoHS This product is RoHS compliant.
-
Page 4: About This Manual
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit or any connected devices. ATEN regularly updates its product documentation for new features and fixes. For an up-to-date VE883 documentation, visit http://www.aten.com/global/en/... -
Page 5: Conventions
VE883 User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 6: Package Contents
VE883K2 2X-C32-2G SFP+ Duplex SM Transceiver (10 Gbps/10km, blue) If you would like to replace the SFP+ modules, please contact the ATEN Technical Support for assistance. The VE883 supports full frequency IR signals from 30 kHz to 56 kHz. -
Page 7: Product Information
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 8: User Notice
VE883 User Manual User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 9: Table Of Contents
Accessories..........5 Compatible ATEN Products ....... . . 5 Supported Video Resolutions . - Page 10 VE883 User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
The VE883 meets HDMI Specifications, including 3D, Deep Color (up to 12 bit), and signaling rates (up to 10.2 Gb) to ensure superior video quality. With ATEN’s exclusive FarSmooth technology, the VE883 prevents lagging and freezing by matching the output rates to the input rates, and ensures... -
Page 12: Features
Supports lossless 4K video up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) FarSmooth – ATEN’s exclusive FarSmooth technology prevents lagging and freezing by matching the output rates to the input rates and ensures the... - Page 13 VE883K1: 10 Gbps/300m SFP+ Duplex Multi Mode Transceiver VE883K2: 10 Gbps/10 km SFP+ Duplex Single Mode Transceiver ATEN recommends using single-mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and using multi-mode fibers that conform to IEC 11801 (OM3, OM4).
-
Page 14: Planning The Installation
Chapter 1. Introduction Planning the Installation Required Equipment Prepare the following before installing the VE883 unit: 1 source device (e.g. a Blu-ray disc or a PC) 1 display device equipped with an HDMI connector 2 HDMI cables ... -
Page 15: Optional Equipment
High-speed HDMI cable with Ethernet (20m) Compatible ATEN Products The VE883 is compatible with a range of ATEN HDMI Switches, HDMI Splitters, Modular Matrix Switches, and Video Matrix Switches, and HDMI Converters. For more details, visit the VE883 product page at... -
Page 16: Supported Video Resolutions
Chapter 1. Introduction Supported Video Resolutions The VE883 supports the following video resolutions at 60 Hz: Width (Pixels) Height (Pixels) 1024 1280 1280 1280 1280 1280 1280 1024 1360 1366 1400 1050 1440 1600 1600 1200 1680 1050 1792 1344 1856 1392 1920... -
Page 17: Hardware Setup
Chapter 2 Hardware Setup 1. Please review the safety information regarding the placement of this device in Safety Instructions, page 19. 2. Do not power on the VE883 until all the necessary hardware is connected. Components VE883T Front View Component Description USB 2.0 Type-B Connects to a USB port on the source device to transmit data to or receive data from the USB peripherals installed to the... -
Page 18: Ve883T Rear View
Installation, page 13. IR port Receives an IR emitter or receiver. firmware upgrade port This port is reserved for ATEN Technical Support. If you would like to do a firmware upgrade yourself, please contact your dealer. power jack... -
Page 19: Ve883R Front View
VE883 User Manual VE883R Front View Component Description USB 2.0 Type-A Connects to a USB peripheral via a USB cable. audio out Connects to the audio in port on a speaker via an audio cable. RS-232 serial port Connects to an RS-232 serial controller, such as a barcode scanner or a touch pad. -
Page 20: Ve883R Rear View
Connects to a hub via an Ethernet cable. IR port Connects to an IR emitter or receiver. firmware upgrade port This port is reserved for ATEN Technical Support. If you would like to do a firmware upgrade yourself, please contact your dealer. power jack... -
Page 21: Led Display
VE883 User Manual LED Display You can find the unit’s LEDs on the top panels and side panel of the VE883R as illustrated below. See the table below for details on LED indication. VE883T Top View VE883R Top View 3 1 2 VE883R Rear View Indication Description... - Page 22 Chapter 2. Hardware Setup Indication Description Ethernet speed Lights orange The data is being transmitted/received at 100 Mbps. Lights green The data is being transmitted/received at 1 Gbps. The data is being transmitted/received at 10 Mbps or not transmitted/received. Ethernet link Lights green The VE883R’s connection to Ethernet is active.
-
Page 23: Mounting
Mounting Use the VE-RMK1U Rack Mount Kit to rack-mount the VE883. For more information about this accessory, go to www.aten.com/products Installation Follow the steps below to safely install the VE883 to a source, a display device, SFP+ modules, and other devices as required. - Page 24 Chapter 2. Hardware Setup 1. Connect your source device to the VE883T. To transmit HDMI video/ stereo audio/USB/serial/Ethernet signals, connect the source device’s HDMI out / audio out / USB / RS-232 serial / Ethernet port to the VE883T. 2. Plug the SFP+ modules to the optical ports on your VE883T and VE883R, and then connect the two SFP+ modules using a duplex fiber optic cable.
-
Page 25: Rs-232 Channel Transmission
VE883 User Manual RS-232 Channel Transmission You can utilize the VE883 to extend RS-232 serial control signals between two serial devices, for example, such as a computer and a bar code scanner. The flow of the RS-232 signal transmission can be illustrated as follows: Fiber Serial Device... - Page 26 Chapter 2. Hardware Setup This Page Intentionally Left Blank...
-
Page 27: Operation
Chapter 3 Operation Firmware Upgrades You can upgrade one or two VE883 units in your setup using Firmware Upgrade Utility from PCs installed at the VE883T or the VE883R’s side. Note: To upgrade both the VE883T and VE883R in your environment, make sure they are powered on and connected via a duplex fiber optic cable. - Page 28 Chapter 3. Operation 4. Read and agree to the License Agreement, and then click Next. The utility automatically browses and lists the VE883 devices in Device List. 5. Click Next to start the upgrade. When the upgrade is complete, a confirmation message, “Firmware Upgrade: OK”...
-
Page 29: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 30 Appendix Do not attempt to service the device yourself. Refer all servicing to qualified service personnel. If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. ...
-
Page 31: Rack Mounting
VE883 User Manual Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack. -
Page 32: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 33: Specifications
VE883 User Manual Specifications Function VE883R VE883T Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Up to 5 m Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Up to 10 m Video Max. - Page 34 2. ATEN recommends using single-mode fibers that conform to IEC 11801 (OS1, OS1a, OS2), and using multi-mode fibers that conform to IEC 11801 (OM3, OM4).
-
Page 35: Limited Warranty
© Copyright 2021 ATEN® International Co., Ltd. Released: 2021-04-28 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
