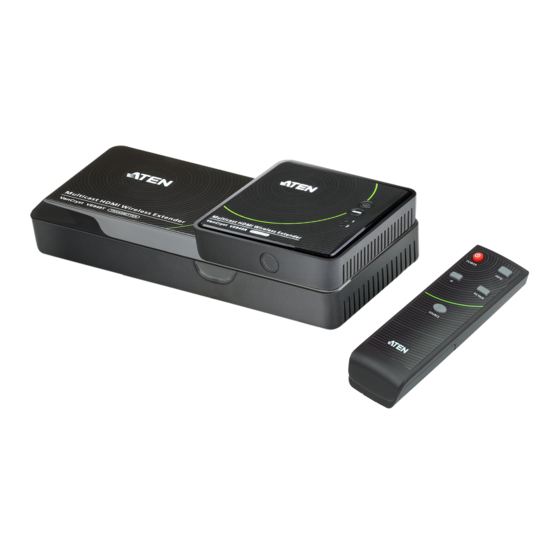

- Page 1 Multicast HDMI Wireless Extender VE849 User Manual www.aten.com...
-
Page 2: Rohs
VE849 User Manual RoHS This product is RoHS compliant. SJ/T 11364-2006 The following contains information that relates to China. -
Page 3: User Information
VE849 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
© Copyright 2015 ATEN® International Co., Ltd. Manual Date: 2015-11-06 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VE849 User Manual Contents RoHS............ii SJ/T 11364-2006. - Page 6 VE849 User Manual Appendix Safety Instructions ......... . 18 General .
-
Page 7: About This Manual
An overview of the information found in the manual is provided below. Chapter 1, Introduction, introduces you to the VE849 system. Its purpose, features and benefits are presented, its front and back panel components and remote control are described. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Chapter 1 Introduction
Full 1080p with 5.1 channel Dolby digital audio and 3D technology. Supporting Dynamic Frequency Selection (DFS), the VE849 is able to operate within the U-NII Worldwide radio band (operating within this regulated and less commonly used range greatly reduces Wi-Fi signal interference and improves transmission quality and stability). -
Page 10: Features
VE849 User Manual Features Wirelessly extend four HDMI displays up to 30m from the HDMI source* Setup five HDTVs and view HD content on five HDTVs simultaneously* Connect and transmit wireless video content from your Blu-ray DVD player, HD Cable box or other HDMI device wirelessly Multicast signal –... -
Page 11: Requirements
1. Introduction Requirements Source Device A source player with an HDMI Type A output connector Display Device A display device or receiver with an HDMI Type A input connector... -
Page 12: Components
Pushbutton the two connected HDMI media sources. Power Press this button to turn the VE849 on / off. The blue LED Pushbutton / LED indicates the VE849 is powered on,. The red LED indicates the VE849 is in power saving mode. -
Page 13: Ve849T Transmitter Rear View
Plug the IR Blaster cable that came with your unit into this port. Service Port This port is used by the manufacturer to service the VE849. USB Mini Power The Mini USB Power Adapter that came with your unit plugs Adapter Port in here. -
Page 14: Ir Remote Control
VE849 User Manual IR Remote Control Component Description Power Press to turn transmitter and receiver on or off. Info Press to show on-screen display (OSD) information on the HDTV connected to the receiver. Press to switch the IR Blaster frequency to meet the media source devices requirements. -
Page 15: Chapter 2. Hardware Setup
2. Make sure that the power to all devices connected to the installation are turned off. To install the VE849 Multicast HDMI Wireless Extender, refer to the installation diagrams below as you preform the following steps: VE849T - Transmitter Installation 1. -
Page 16: Ve849R - Receiver Installation
VE849 User Manual VE849R - Receiver Installation 1. Place the VE849R receiver up to 30m from the VE849T transmitter. 2. Use the HDMI cable included with this package to connect the HDMI video display (HDTV) to the HDMI output port on the rear of the VE849R receiver. - Page 17 2. Hardware Setup 3. Place the IR Blaster’s sensors on or near the source device(s) front panel IR sensor port(s) (refer to the devices user manual for the exact location), so that it can communicate with the IR signal, as shown in red below. 4.
- Page 18 VE849 User Manual Pairing To connect the transmitter to a receiver, power off all units and follow the instructions below to put both units in pairing mode. Only one receiver can be powered on when its being paired with the transmitter.
- Page 19 2. Hardware Setup 5. On the receiver, press and hold down the power button. Note: You can also use the IR remote control to put the receiver into pairing mode. See RX PAIR, page 16, for details. 6. With the receiver’s power button pressed, plug in the power adapter. 7.
- Page 20 VE849 User Manual 9. When the receiver is searching for the transmitter, the OSD will show: Searching... 10. When the receiver and transmitter have found each others signal, the OSD will show: Adding... 11. After the pairing is finished, both the transmitter and receiver will re-boot and establish a link to each other automatically.
-
Page 21: Power
2. Hardware Setup Power To establish the best resolution for connected displays*, the VE849 will cause a normal short signal disruption to occur: If both HDMI TVs and VE849T/VE849R units are on: Powering off and then on the local HDMI TV will cause the remote HDMI display signal to turn off for 5-10 seconds. -
Page 22: Chapter 3. Operation
HDTV connected to the Receiver. Note: If you don’t get a display on the TV connected to the Receiver, press INFO on the VE849’s remote control, then refer to the on-screen display (OSD) information, and see Troubleshooting, page 22 to resolve the issue. -
Page 23: Ir Remote Control
Use this button to change the RF frequency for an HDMI source device’s remote control, so that it can be used from the VE849R Receiver. Refer to your source devices user manual for the correct frequency, then change the VE849’s setting to match it. -
Page 24: Rx Pair
In order to provide the best “common” output resolution, for all displays, the VE849 reads the EDID whenever a TV is plugged in, unplugged, or turned on/ off. It is normal to see the TVs flash for a couple seconds when they are powered on, or when switching source devices, this allows the EDID to adjust to the best “common”... - Page 25 3. Operation...
-
Page 26: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, etc.). If the device falls, serious damage will result. - Page 27 Appendix If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 28: Technical Support
VE849 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii: North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support... -
Page 29: Specifications
Appendix Specifications Function VE849T VE849R Video Interface 2 x HDMI Type A Female Input (Black) Impedance 100 Ώ Max. Distance 1.8 m Video Interface 1 x HDMI Type A Female 1 x HDMI Type A Female Output (Black) (Black) Impedance 100 Ώ... -
Page 30: Troubleshooting
VE849 User Manual Troubleshooting Power Source Status OSD Display Solution Description (Receiver TV) (Receiver) (Receiver) Power Turn the transmitter and saving mode receiver On using the Solid Red Power button or Remote Transmitter Control. and Receiver are plugged in but the power is off. - Page 31 Please adjust (Slow) related video settings or try connecting the HDMI source device directly to the TV for further troubleshooting. The VE849 Signal Quality, Source, is working Channel, and resolution Solid Blue Solid Blue properly and are displayed.
-
Page 32: Limited Warranty
VE849 User Manual Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
