Service guide | Disassembling and assembling MAH 6.3 - 12.5
1.5 - 2.5 mm

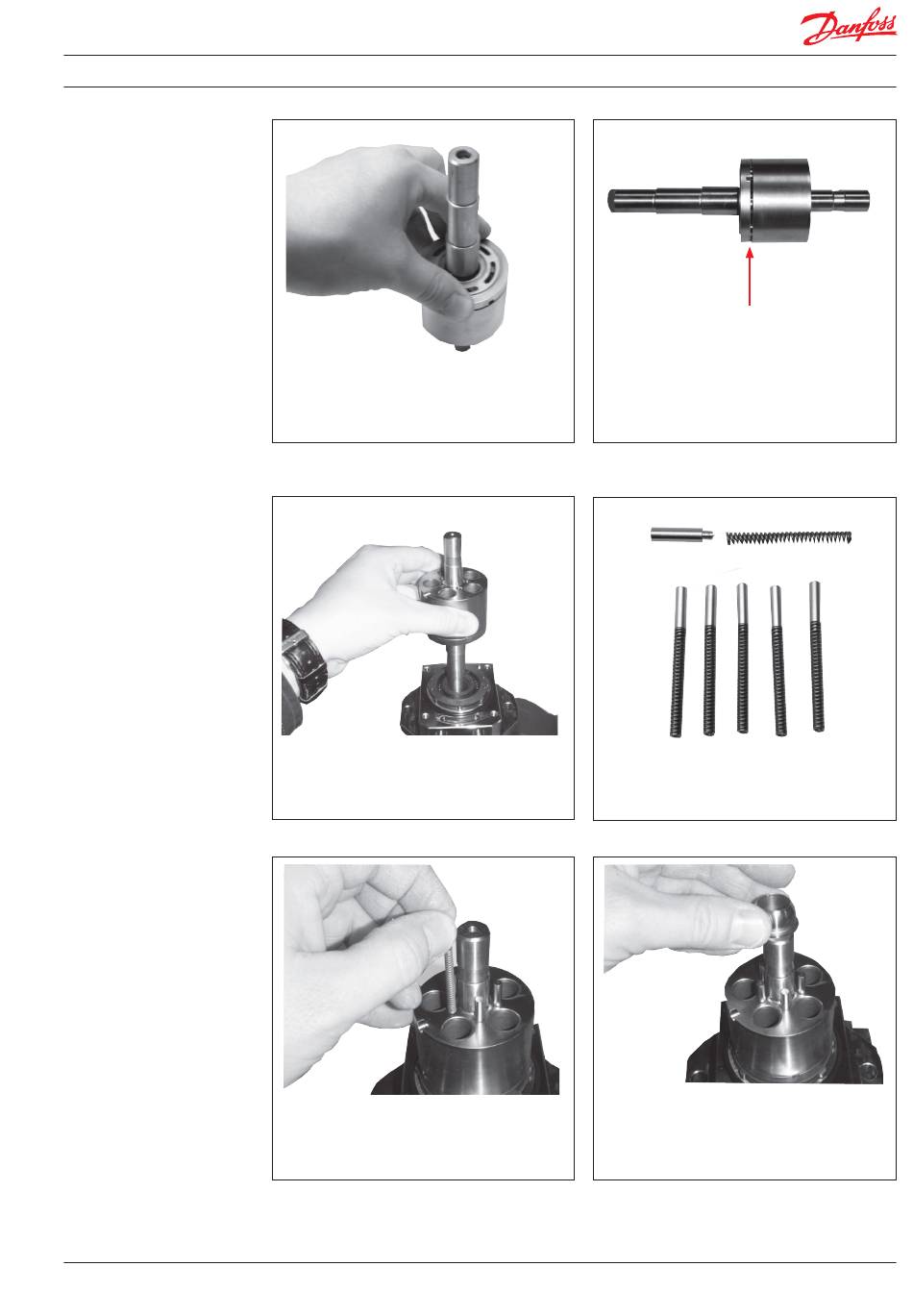

5. Mount thrust plate with seals on cylinder
6. Check that the gap between the cylinder
barrel.
barrel and the thrust plate is 1.5-2.5 mm.
7. Mount the cylinder barrel in the flange.
8. Assemble pins and springs.
9. Mount pin/spring assemblies.
10. Mount the retainer guide.
180R9152 | AX357937856579en-000402 | 07.2021
9
