Service guide | Disassembling and assembling MAH 6.3 - 12.5
4

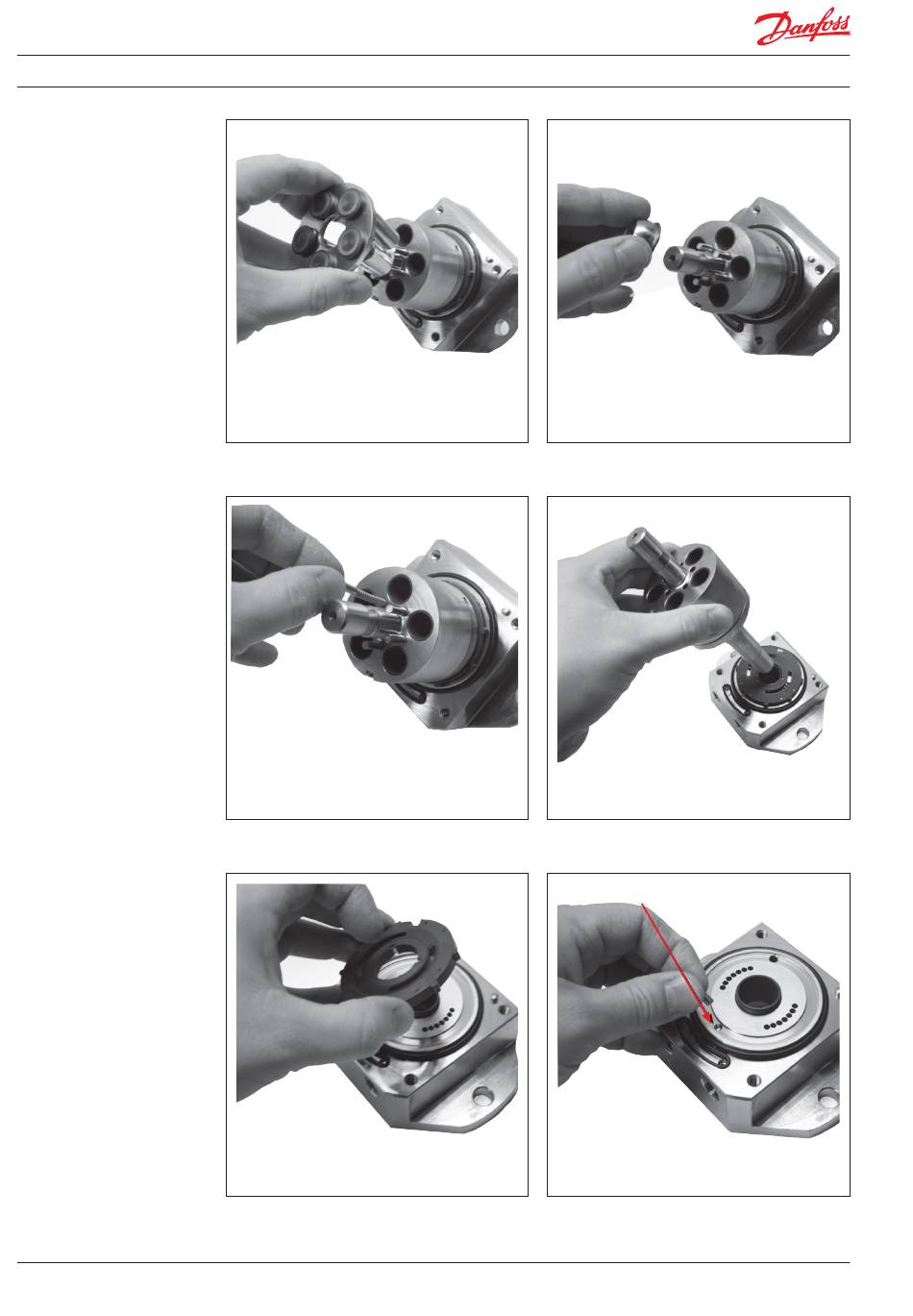

7. Remove pistons and retaining plate from
cylinder barrel.
9. Remove pins and springs.
11. Remove port plate from fl ange.
180R9152 | AX357937856579en-000402 | 07.2021
8. Remove retaining guide.
10. Remove cylinder barrel.
12. Remove guide pin.
