Service guide | Disassembling and assembling MAH 6.3 - 12.5
3. Assembling
8
WARNING:
Do not use silicone when assembling the
motor. Do not reuse disassembled O-rings;
they might be damaged. Always use new
O-rings.

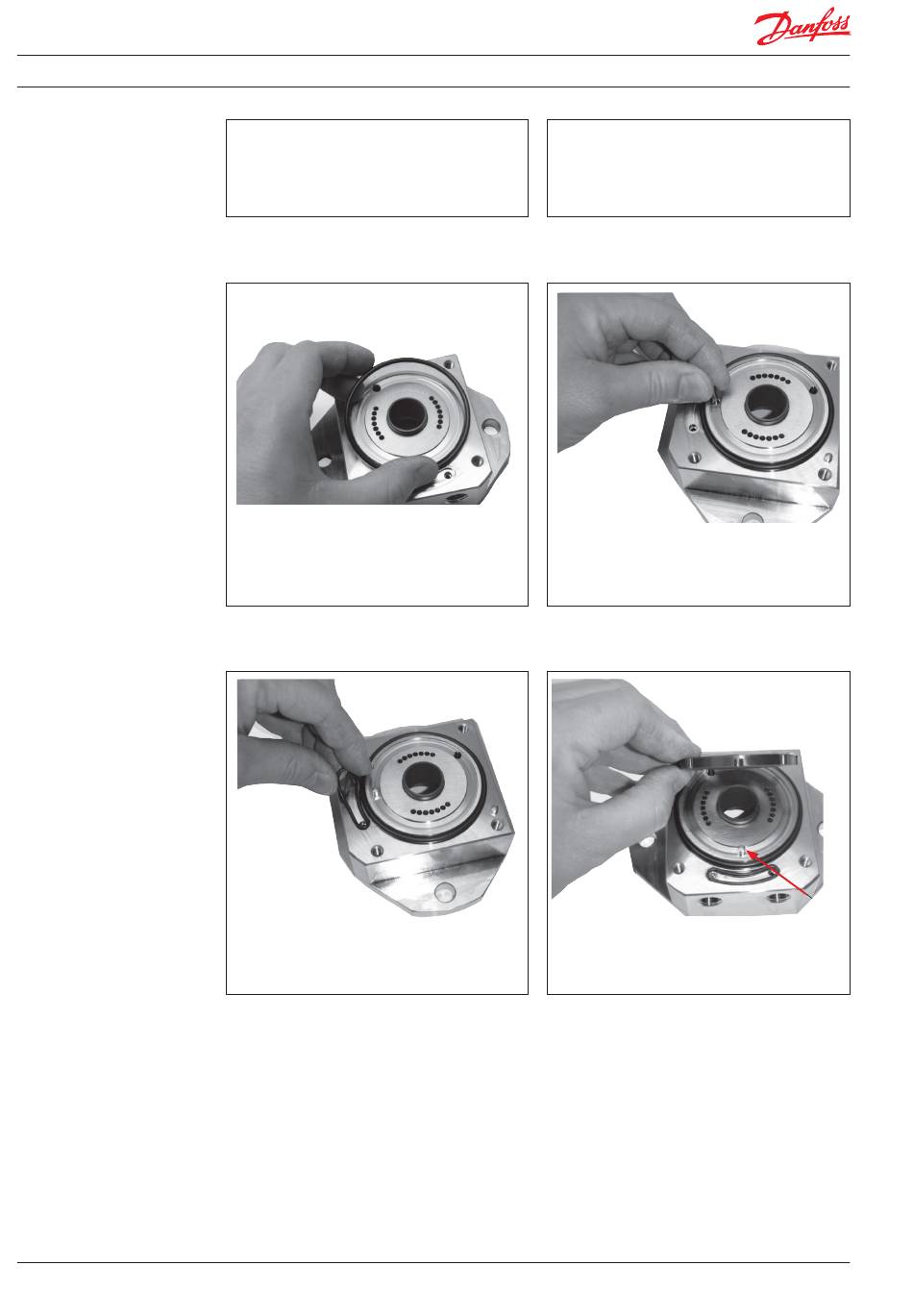

1. Mount O-ring on flange.
3. Mount the O-ring in port.
180R9152 | AX357937856579en-000402 | 07.2021
Important:
It is essential that the motoris serviced in
conditions of absolute cleanliness. All parts
must be absolute clean before mounting.
2. Mount guide pin.
4. Mount port plate in its right position using
pin as guide.
Guide pin
