Service guide | Disassembling and assembling MAH 6.3 - 12.5
10

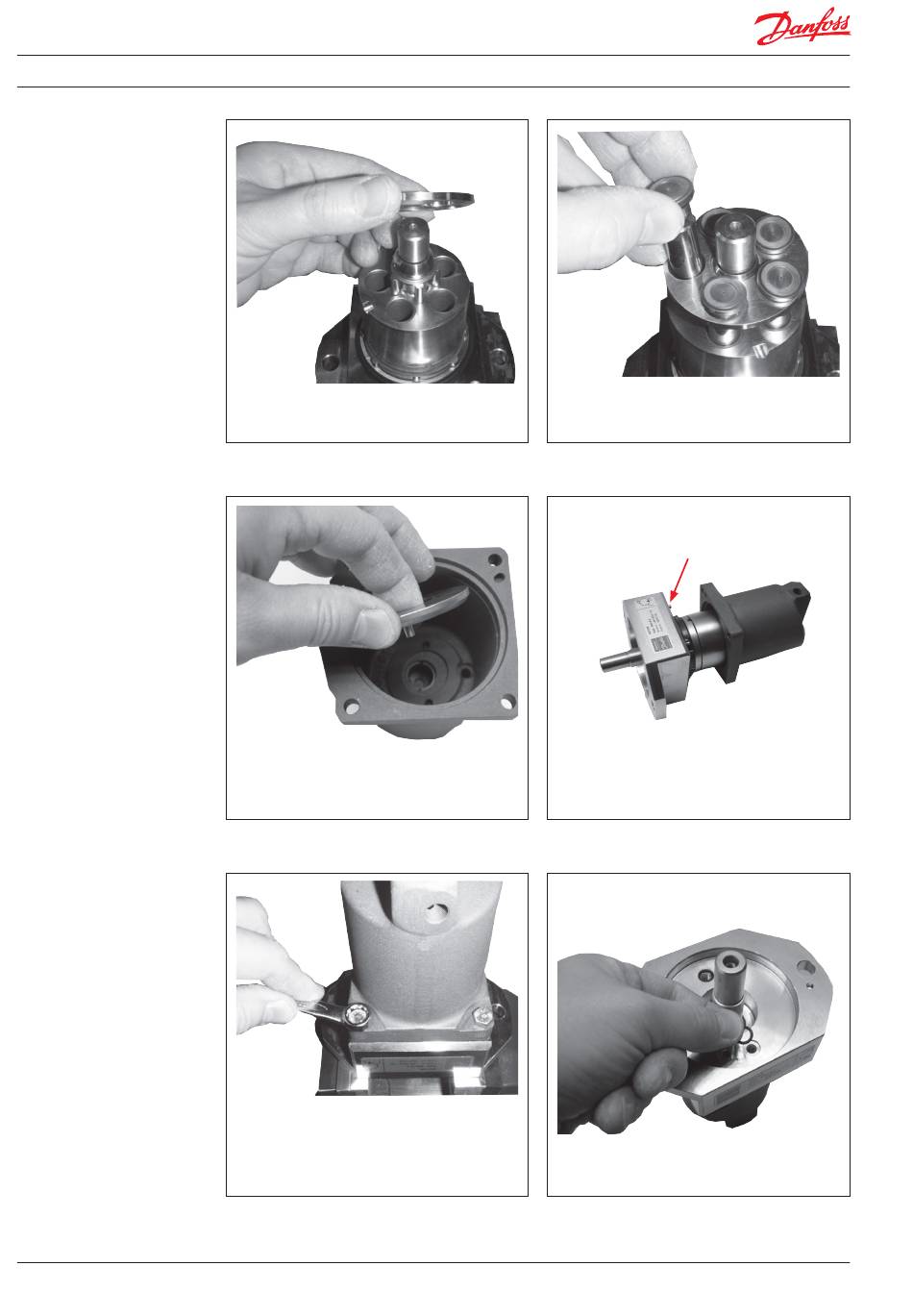

11. Mount the retaining plate on the retainer
guide with plain surface pointing upwards.
13. Mount swash plate.
15. Tighten screws to a torque of 13 Nm.
180R9152 | AX357937856579en-000402 | 07.2021
12. Insert the pistons.
14. Mount housing using pin as guide.
16. Mount the two O-rings in the flange.
