Service guide | Disassembling and assembling MAH 6.3 - 12.5
1.
Disassembling the
motor

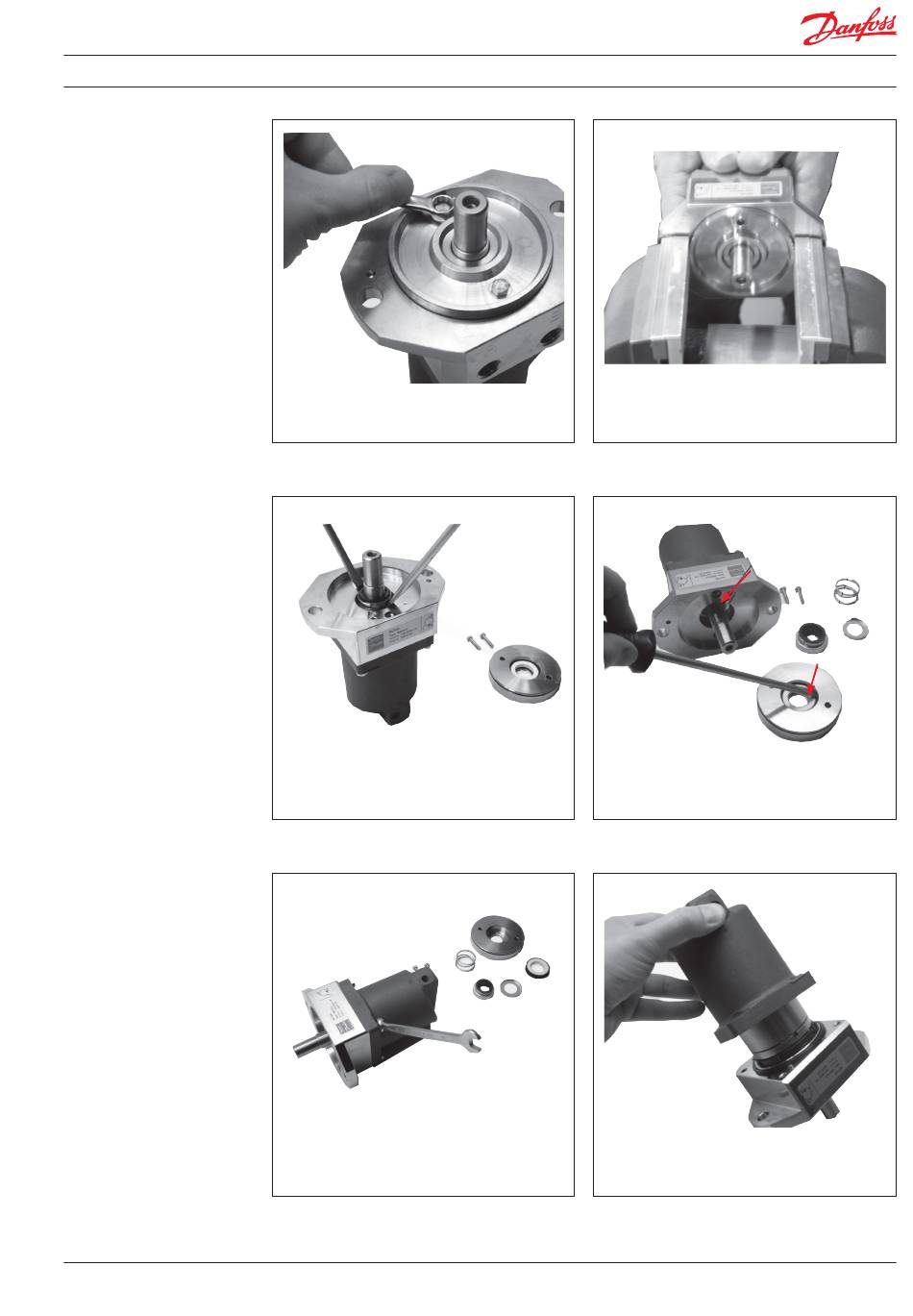

1. Remove parallel key and unscrew front
cover.
3. Remove shaft seal using two screwdrivers.
5. Unscrew the four screws for housing.
180R9152 | AX357937856579en-000402 | 07.2021
2. Dismantle front cover using a vice.
4. Remove the two small O-rings from
flange. Remove seal from front cover using
a screwdriver.
6. Remove housing.
