7 Board Topology

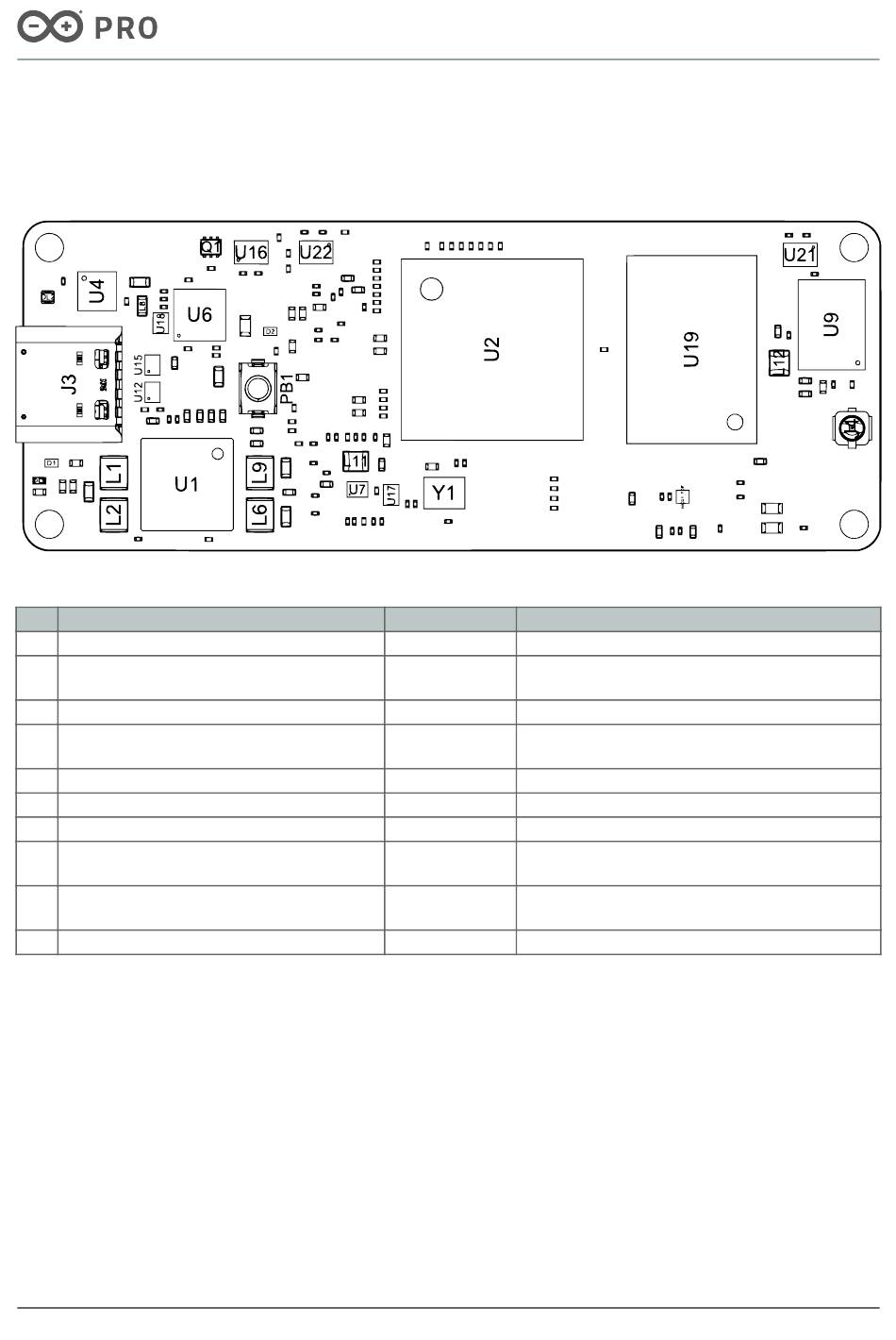

7.1 Front View

Ref. Description
U1 BD71847AMWV i.MX 8M Mini PMIC
NCP383LMUAJAATXG Current-Limiting Power
U4
Switch
U7 MP28210 Step Down IC
PCMF2USB3B/CZ Bidirectional EMI Protection
U12
IC
U17 DSC6151HI2B 25MHz MEMS Oscillator
U19 NT6AN512T32AV 2GB LP-DDR4 DRAM
PB1 PTS820J25KSMTRLFS Reset Push Button
SMLP34RGB2W3 RGB Common Anode SMD
DL2
LED
DSC2311KI2-R0012 Dual-Output MEMS
Y3
Oscillator
J4 U.FL-R-SMT-1(60) UFL Connector
9 / 20
8
F r o n t v i e w o f P o r t e n t a X T o p o l o g y
Ref. Description
U2 MIMX8MM6CVTKZAA i.MX 8M Mini Quad IC
U6 ANX7625 MIPI-DSI/DPI to USB Type-C® Bridge IC
U9 LBEE5KL1DX-883 WLAN+Bluetooth® Combo IC
FXL4TD245UMX 4-Bit Bidirectional Voltage-level
U16,U21,U22,U23
Translator IC
U18 DSC6151HI2B 27MHz MEMS Oscillator
IC1,IC2,IC3,IC4 SN74LVC1G125DCKR 3-state 1.65-V to 5.5-V buffer IC
Dl1 KPHHS-1005SURCK Power On SMD LED
Y1 CX3225GB24000P0HPQCC 24MHz crystal
J3 CX90B1-24P USB Type-C® connector
Arduino® Portenta X8
Arduino® Portenta X8
