Arduino® Portenta C33
Product Reference Manual
SKU: ABX00074
Description

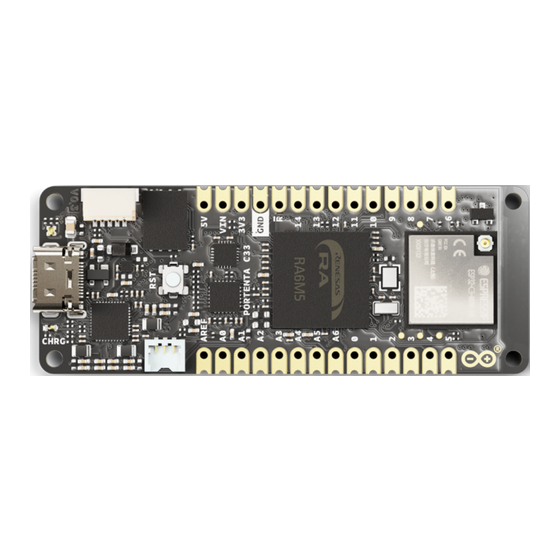

The Portenta C33 is a powerful System-on-Module designed for low-cost Internet of Things (IoT) applications. Based
on the R7FA6M5BH2CBG microcontroller from Renesas®, this board shares the same form factor as the Portenta
H7 and it is backward compatible with it, making it fully compatible with all Portenta family shields and carriers
through its high-density connectors. As a low-cost device, the Portenta C33 is an excellent choice for developers
looking to create IoT devices and applications on a budget. Whether you're building a smart home device or a
connected industrial sensor, the Portenta C33 provides the processing power and connectivity options you need to
get the job done.
Target Areas
IoT, building automation, smart cities, and agriculture
1 / 15
Arduino® Portenta C33
Modified: 14/03/2023
Advertisement
Table of Contents
Related Manuals for Arduino Portenta C33
Summary of Contents for Arduino Portenta C33

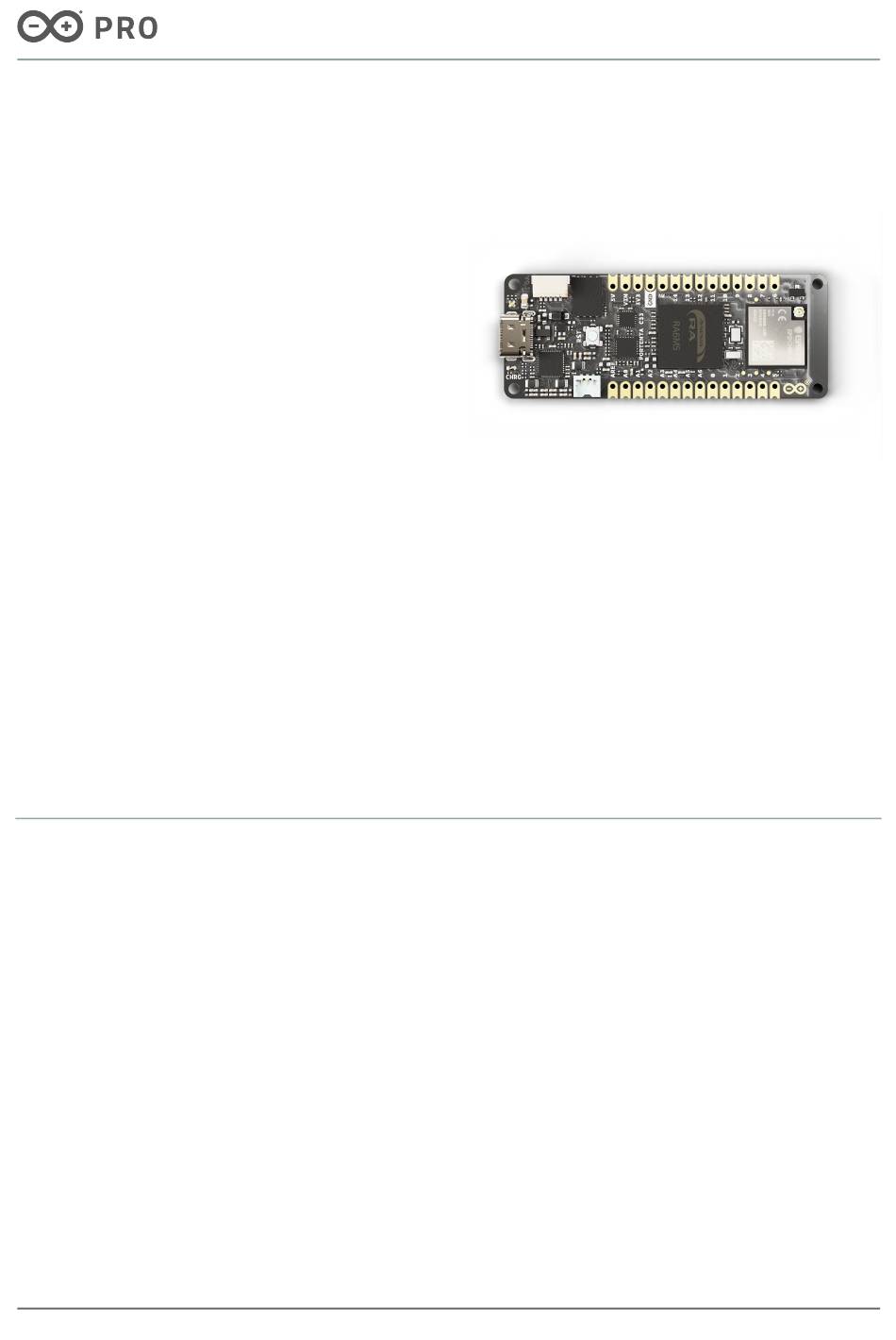

- Page 1 H7 and it is backward compatible with it, making it fully compatible with all Portenta family shields and carriers through its high-density connectors. As a low-cost device, the Portenta C33 is an excellent choice for developers looking to create IoT devices and applications on a budget. Whether you're building a smart home device or a connected industrial sensor, the Portenta C33 provides the processing power and connectivity options you need to get the job done.
-
Page 2: Table Of Contents
4 Hardware 4.1 Block Diagram 4.2 Power Supply 5 Device Operation 5.1 Getting Started - IDE 5.2 Getting Started - Arduino Web Editor 5.3 Getting Started - Arduino IoT Cloud 5.4 Sample Sketches 5.5 Online Resources 6 Mechanical Information 6.1 Board Dimensions 6.2 Board Connectors... -
Page 3: Application Examples
Machine monitoring to track OEE/OPE: Track Overall Equipment Efficiency (OEE) and Overall Process Effectiveness (OPE) with the Portenta C33 as an IoT node. Collect data and get alerted on machine uptime and unplanned downtime to provide reactive maintenance and improve production rate. -
Page 4: Features
2 Features 2.1 General Specifications Overview The Portenta C33 is a powerful microcontroller board designed for low-cost IoT applications. Based on the high- performance R7FA6M5BH2CBG microcontroller from Renesas®, it offers a range of key features and a low-power design that make it well-suited for a variety of applications. The board has been designed with the same form factor as the Portenta H7 and is backward compatible, making it fully compatible with all Portenta family shields and carriers through its MKR-styled and high-density connectors. -
Page 5: Microcontroller
2.4 GHz Wi- Fi® (802.11 b/g/n) support ESP32 -C3- MINI- 1U Bluetooth® 5.0 Low Energy support Table 3: Portenta C33 Wireless Communication Features 2.4 Ethernet Connectivity Component Details Single-port 10/100 Ethernet transceiver designed for use in industrial and automotive applications... -
Page 6: Security
100,000 program/erase cycles Designed to operate over a wide temperature range, from -40°C to 105°C, making it suitable for use in harsh industrial and automotive environments Table 6: Portenta C33 External Memory Features 6 / 15 Arduino® Portenta C33... -
Page 7: Included Accessories
3.1 Recommended Operating Conditions Table 7 provides a comprehensive guideline for the optimal use of the Portenta C33, outlining typical operating conditions and design limits. The operating conditions of the Portenta C33 are largely a function based on its component's specifications. -
Page 8: Block Diagram
Arduino® Portenta C33 4.1 Block Diagram An overview of the Portenta C33 high-level architecture is illustrated in Figure 1. Figure 1. High-level architecture of the Portenta C33 4.2 Power Supply The Portenta C33 can be powered through one of these interfaces: USB-C®... -
Page 9: Device Operation
5 Device Operation 5.1 Getting Started - IDE If you want to program your Portenta C33 while offline you need to install the Arduino® Desktop IDE [1]. To connect the Portenta C33 to your computer, you will need a USB-C® cable. -
Page 10: Mechanical Information
The Portenta C33 is designed to be usable as a surface-mount module as well as presenting a dual inline package (DIP) format with the MKR-styled connectors on a 2.54 mm pitch grid with 1 mm holes. The Portenta C33 also has four 1.12 mm drilled mounting holes to provide for mechanical fixing. -
Page 11: Board Connectors
Arduino® Portenta C33 6.2 Board Connectors Connectors of the Portenta C33 are placed on the top and bottom side of the board, their placement can be seen in Figures 4 and 5. Figure 4. Portenta C33 connectors placement (top view) Figure 5. -
Page 12: Certifications
7.3 Declaration of Conformity to EU RoHS & REACH 211 01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 13: Conflict Minerals Declaration
ECHA (European Chemical Agency) 1907 /2006/EC. 7.4 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. -
Page 14: Company Information
Important: The operating temperature of the EUT can’t exceed 85 °C and shouldn’t be lower than -40 °C. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states. -
Page 15: Document Revision History
Arduino® Portenta C33 11 Document Revision History Date Revision Changes 14/03/2023 First release 15 / 15 Arduino® Portenta C33 Modified: 14/03/2023...
