2 Functional Overview

2.1 Board Topology

2.1.1 Top View

Ref. Description
U1 LSM6DSOXTR 6-axis IMU IC
U4 Bosch BME688 Environmental Sensor IC
J6 FH26W-45S-0.3SHW(60) Display Connector
7 / 18

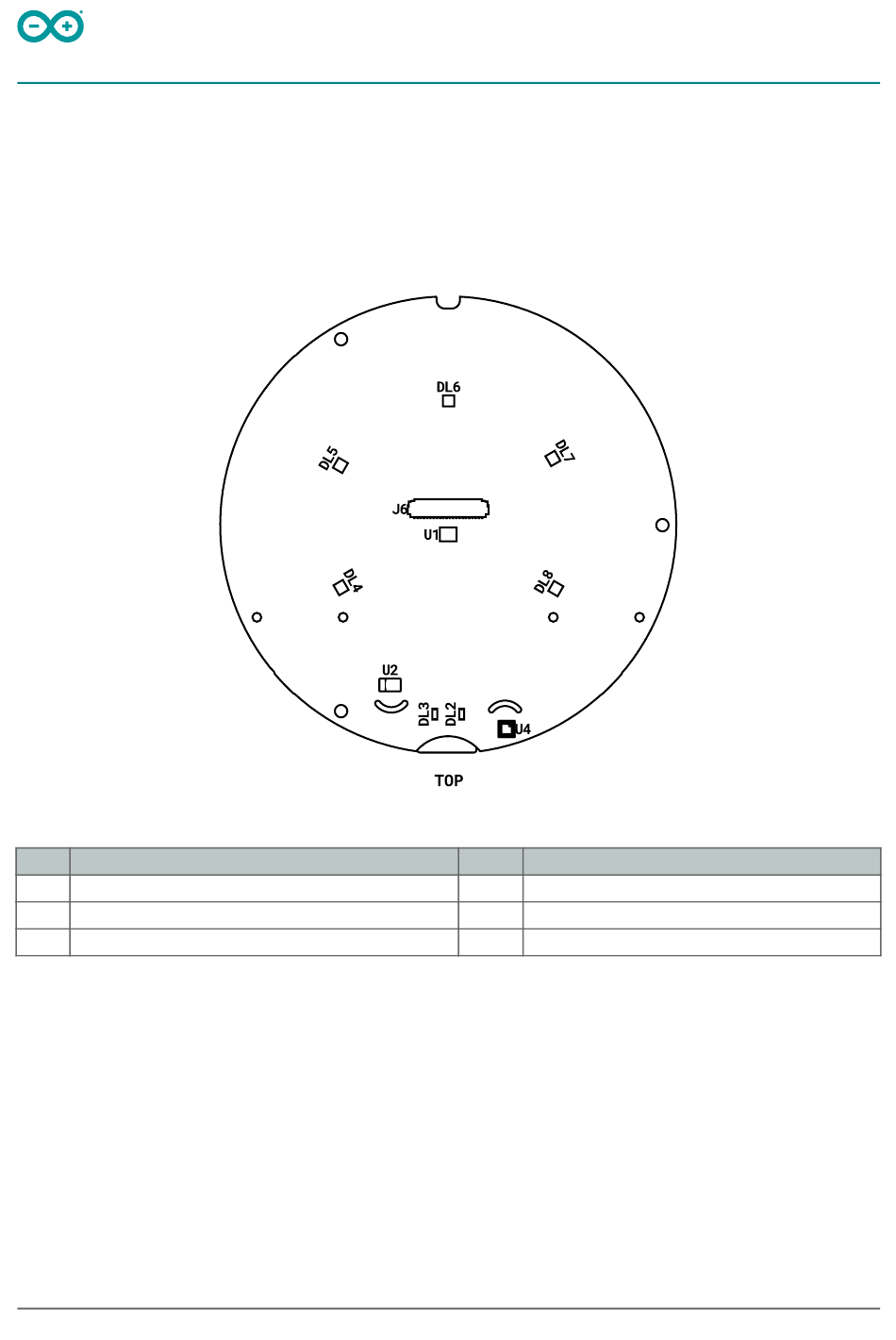

Top view - components
Ref.
U2
L0-L4
PB1
Arduino® MKR IoT Carrier Rev2
Arduino® MKR IoT Carrier
Description
APDS-9660 RGB and Gesture Sensor IC
APA1022020-2018 RGB LED IC
Reset push-button
Rev2
