4.2 Board Topology

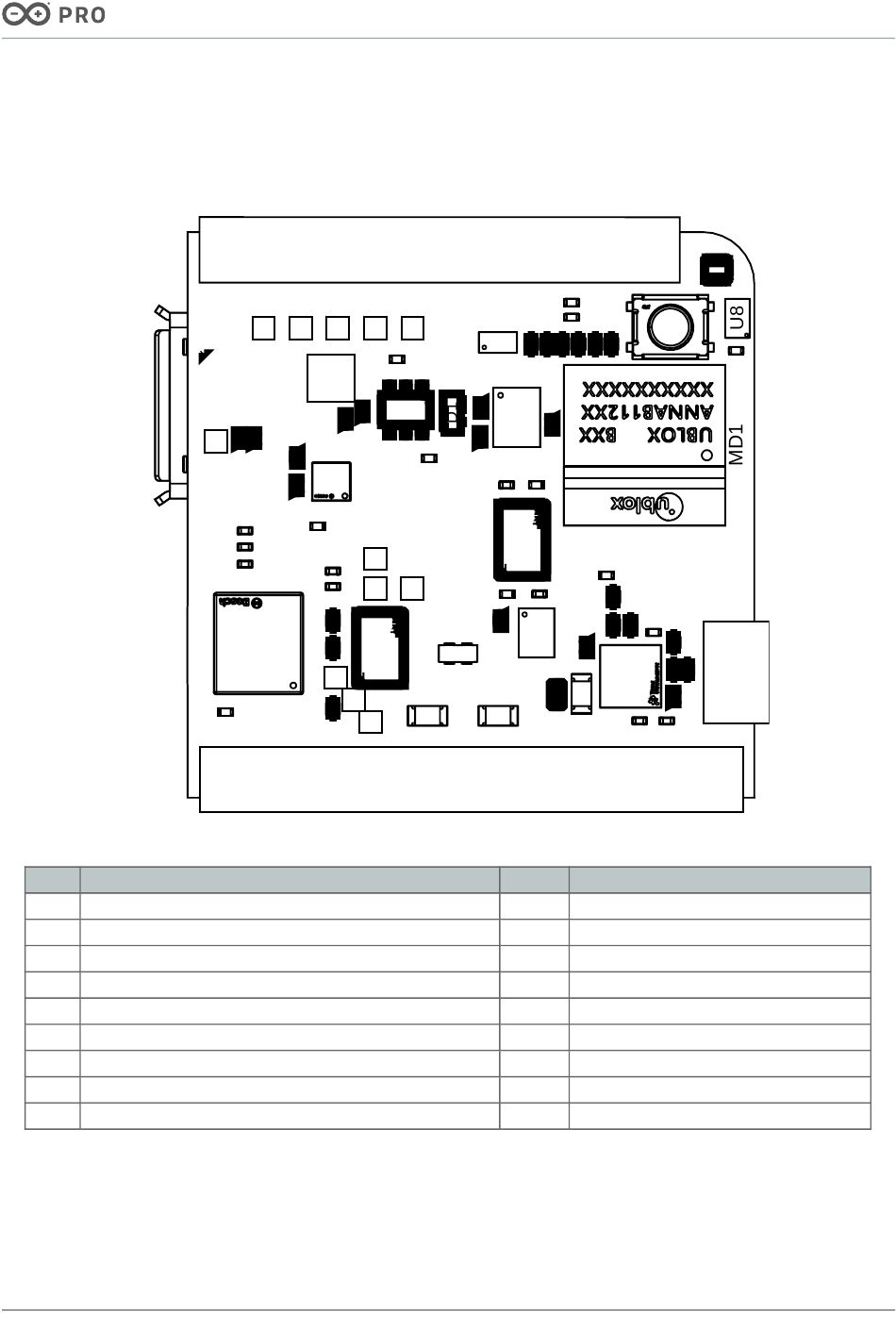

Top View
Ref. Description
MD1 ANNA B112 Bluetooth® Module
U3 BMP390 Pressure Sensor IC
U5 BHI260AP 6 axis IMU and AI core IC
U8 IS31FL3194-CLS2-TR 3-channel LED IC
U10 SN74LVC1T45 1Channel voltage level translator IC
U12 NTS0304EUKZ 4-bit translating transceiver
J2 I2C, JTAG, Power and LPIO pin headers
Y1 SIT1532AI-J4-DCC MEMS 32.7680 kHz Oscillator
PB1 Reset button
9 / 24
U6
U3
U4
U5
U2
Nicla Sense ME Top View
Arduino® Nicla Sense ME
J1
Y1
U10
U11
U7
D4
J2
Ref.
U2, U7
U4
U6
U9
U11
J1
J3
DL1
Arduino® Nicla Sense ME
DL1
PB1
J3
U9
Description
MX25R1635FZUIH0 2 MB FLASH IC
BMM150 3-axis Magnetic Sensor IC
BME688 Environmental Sensor IC
BQ25120AYFPR Battery Charger IC
TXB0108YZPR Bidirectional IC
ADC, SPI and LPIO Pin headers
Battery pin headers
SMLP34RGB2W3 RGB SMD LED
