Arduino® Portenta X8
Product Reference Manual
SKU: ABX00049

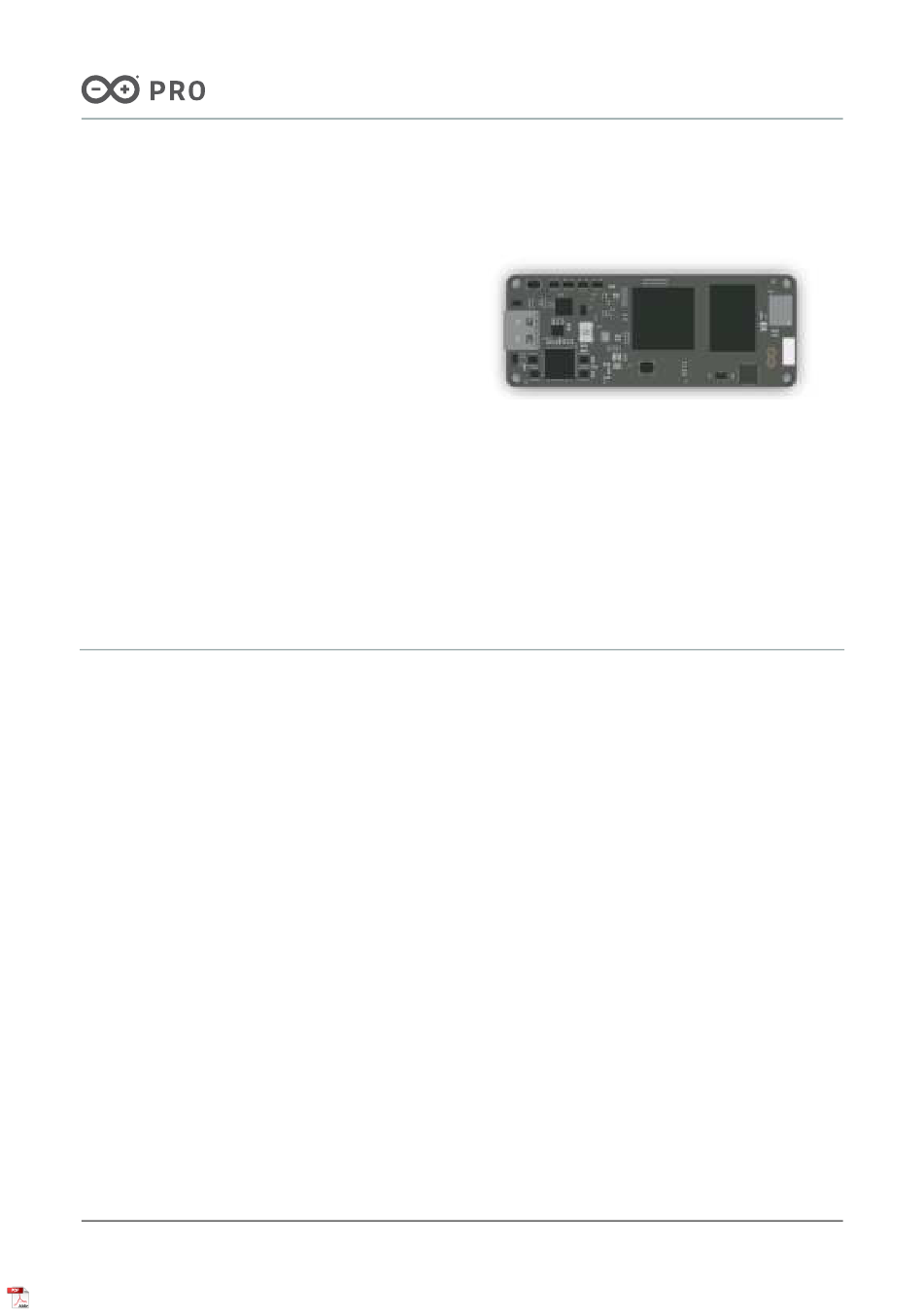

Description
The Arduino® Portenta X8 is a high performance system on module designed to power the upcoming generation of Industrial
Internet of Things. This board combines the NXP® i.MX 8M Mini hosting an embedded Linux OS with the STM32H7 to leverage
Arduino libraries/skills. Shield and carrier boards are available to extend the functionality of the Portenta X8 or alternatively can
be used as a reference design to develop your own custom solutions.
Target Areas
Edge computing, industrial internet of things, system on module, artificial intelligence
1 / 20
Arduino® Portenta X8
Modified: 07/12/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arduino PRO Portenta X8
Summary of Contents for Arduino PRO Portenta X8
- Page 1 Description The Arduino® Portenta X8 is a high performance system on module designed to power the upcoming generation of Industrial Internet of Things. This board combines the NXP® i.MX 8M Mini hosting an embedded Linux OS with the STM32H7 to leverage Arduino libraries/skills.
- Page 2 Arduino® Portenta X8 Features Component Details 32KB L1-I Cache 4x Arm® Cortex®-A53 core platforms up to 1.8 GHz per core 32 kB L1-D Cache 512 kB L2 Cache 16 kB L1-I Cache Arm® Cortex®-M4 core up to 400 MHz 16 kB L2-D Cache 3D GPU (1x shader, OpenGL®...
- Page 3 Arduino® Portenta X8 Component Details 2x SPI (1 shared with UART) 1x I2S 1x PDM input 4 lane MIPI DSI output 4 lane MIPI CSI input 4x PWM outputs 7x GPIO 8x ADC inputs with separate VREF Murata® 1DX Wi- Wi-Fi®...
-
Page 4: Table Of Contents
13 USB-C® Connector 14 Real Time Clock 15 Power Tree 16 Board Operation 16.1 Getting Started - IDE 16.2 Getting Started - Arduino Web Editor 16.3 Getting Started - Arduino IoT Cloud 16.4 Sample Sketches 16.5 Online Resources 16.6 Board Recovery... - Page 5 Arduino® Portenta X8 25 Change Log 5 / 20 Arduino® Portenta X8 Modified: 07/12/2022...
-
Page 6: Application Examples
Embedded Linux: Kickstart the deployment of Industry 4.0 with Linux Board Support Packages running on the feature packed and energy efficient Arduino® Portenta X8. Make use of the GNU toolchain to develop your solutions free from technological lock in. -
Page 7: Recommended Operating Conditions
Arduino® Portenta X8 Rating 4 Recommended Operating Conditions Symbol Description Unit Input voltage from VIN pad Input voltage from USB connector 3.3 V output to user application 3.3 V output current available for user application 1000 Input high-level voltage 2.31 Input low-level voltage 0.99... -
Page 8: Block Diagram
Arduino® Portenta X8 Functional Overview 6 Block Diagram B l o c k D i a g r a m o f P o r t e n t a X 8 / 20 Arduino® Portenta X8 Modified: 07/12/2022... -
Page 9: Board Topology
Arduino® Portenta X8 7 Board Topology 7.1 Front View F r o n t v i e w o f P o r t e n t a X T o p o l o g y Ref. Description Ref. -
Page 10: Back View
STM32H747AII6 Dual ARM® Cortex® M7/M4 IC SIT1532AI-J4-DCC-32.768E 32.768KHz MEMS J1, J2 High density connectors Oscillator IC 2N7002T-7-F N-Channel 60V 115mA MOSFET 8 Processor The Arduino Portenta X8 makes use of two ARM®-based physical processing units. 10 / 20 Arduino® Portenta X8 Modified: 07/12/2022... -
Page 11: Nxp® I.mx 8M Mini Quad Core Microprocessor
Wi-Fi® conforming to the IEEE802.11b/g/n standard. 10 Onboard Memories The Arduino® Portenta X8 includes two onboard memory modules. A NT6AN512T32AV 2GB LP-DDR4 DRAM (U19) and 16GB Forsee eMMC Flash module (FEMDRW016G) (U5) are accessible to the i.MX 8M Mini (U2). -
Page 12: Crypto Capabilities
11 Crypto Capabilities The Arduino® Portenta X8 enables IC level edge-to-cloud security capability through the NXP® SE050C2 Crypto chip (U11). This provides Common Criteria EAL 6+ security certification up to OS level, as well as RSA/ECC cryptographic algorithm support and credential storage. -
Page 13: Real Time Clock
Arduino® Portenta X8 14 Real Time Clock The Real Time clock allows keeping time of day with a very low power consumption. 15 Power Tree Power management is mainly performed by the BD71847AMWV IC (U1). 13 / 20 Arduino® Portenta X8... -
Page 14: Board Operation
16.1 Getting Started - IDE If you want to program your Arduino® Portenta X8 while offline you need to install the Arduino® Desktop IDE [1] To connect the Arduino® Portenta X8 control to your computer, you’ll need a Type-C® USB cable. This also provides power to the board, as indicated by the LED. -
Page 15: Pinout
Arduino® Portenta X8 Mechanical Information 17 Pinout 15 / 20 Arduino® Portenta X8 Modified: 07/12/2022... -
Page 16: Mounting Holes And Board Outline
Arduino® Portenta X8 18 Mounting Holes and Board Outline Certifications Certification Details EN 301489-1 EN 301489-1 CE (EU) EN 300328 EN 62368-1 EN 62311 WEEE (EU) 2011/65/(EU) RoHS (EU) 2015/863/(EU) REACH (EU) UKCA (UK) RCM (RCM) FCC (US) Radio: Part 15.247 MPE: Part 2.1091... -
Page 17: Declaration Of Conformity Ce Doc (Eu)
01/19/2021 Arduino boards are in compliance with RoHS 2 Directive 2011/65/EU of the European Parliament and RoHS 3 Directive 2015/863/EU of the Council of 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. -
Page 18: Conflict Minerals Declaration
Arduino® Portenta X8 21 Conflict Minerals Declaration As a global supplier of electronic and electrical components, Arduino is aware of our obligations with regards to laws and regulations regarding Conflict Minerals, specifically the Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502. - Page 19 Important: The operating temperature of the EUT can’t exceed 85℃ and shouldn’t be lower than -45℃. Hereby, Arduino S.r.l. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 201453/EU. This product is allowed to be used in all EU member states.
-
Page 20: Company Information
Arduino® Portenta X8 23 Company Information Company name Arduino SRL Company Address Via Andrea Appiani, 25 - 20900 MONZA（Italy) 24 Reference Documentation Link Arduino IDE (Desktop) https://www.arduino.cc/en/Main/So ware Arduino IDE (Cloud) https://create.arduino.cc/editor Cloud IDE Getting https://create.arduino.cc/projecthub/Arduino_Genuino/getting-started-with-arduino-web-editor- Started 4b3e4a Arduino Pro Website https://www.arduino.cc/pro...
