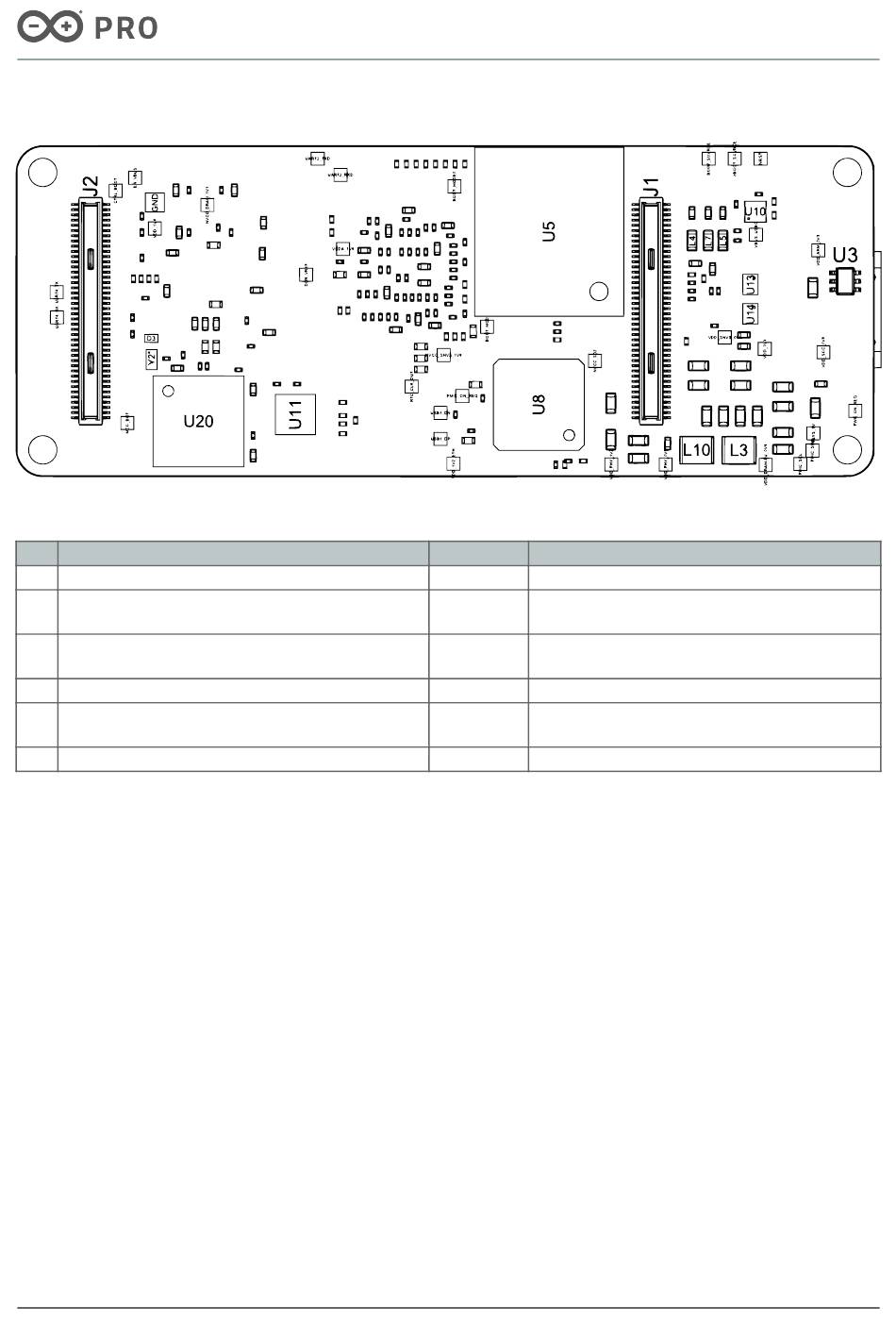

7.2 Back View
Ref. Description
U3
LM66100DCKR Ideal Diode
U8
KSZ9031RNXIA Gigabit Ethernet Transceiver IC
U11 SE050C2HQ1/Z01SDZ IoT Secure Element
U15 NX18P3001UKZ Bidirectional power switch IC
SIT1532AI-J4-DCC-32.768E 32.768KHz MEMS
Y2
Oscillator IC
Q1
2N7002T-7-F N-Channel 60V 115mA MOSFET
8 Processor
The Arduino Portenta X8 makes use of two ARM®-based physical processing units.
10 / 20
8
B a c k v i e w o f P o r t e n t a X
T o p o l o g y
Ref.
U5
U10
U12,
U13,U14
U20
J1, J2
Arduino® Portenta X8
Arduino® Portenta X8
Description
FEMDRW016G 16GB eMMC Flash IC
FXMA2102L8X Dual Supply, 2-Bit Voltage
Translator IC
PCMF2USB3B/CZ Bidirectional EMI Protection IC
STM32H747AII6 Dual ARM® Cortex® M7/M4 IC
High density connectors
Modified: 07/12/2022
