4.2 Board Topology

4.2.1 Connectors Topology

Ref. Description
J1 Nicla Header A
J3 Battery Pads
J5 ESLOV Connector (SM05B-SRSS)
J7 Micro USB-AB (ZX62-AB)
10 / 25
J3
J6
TOP

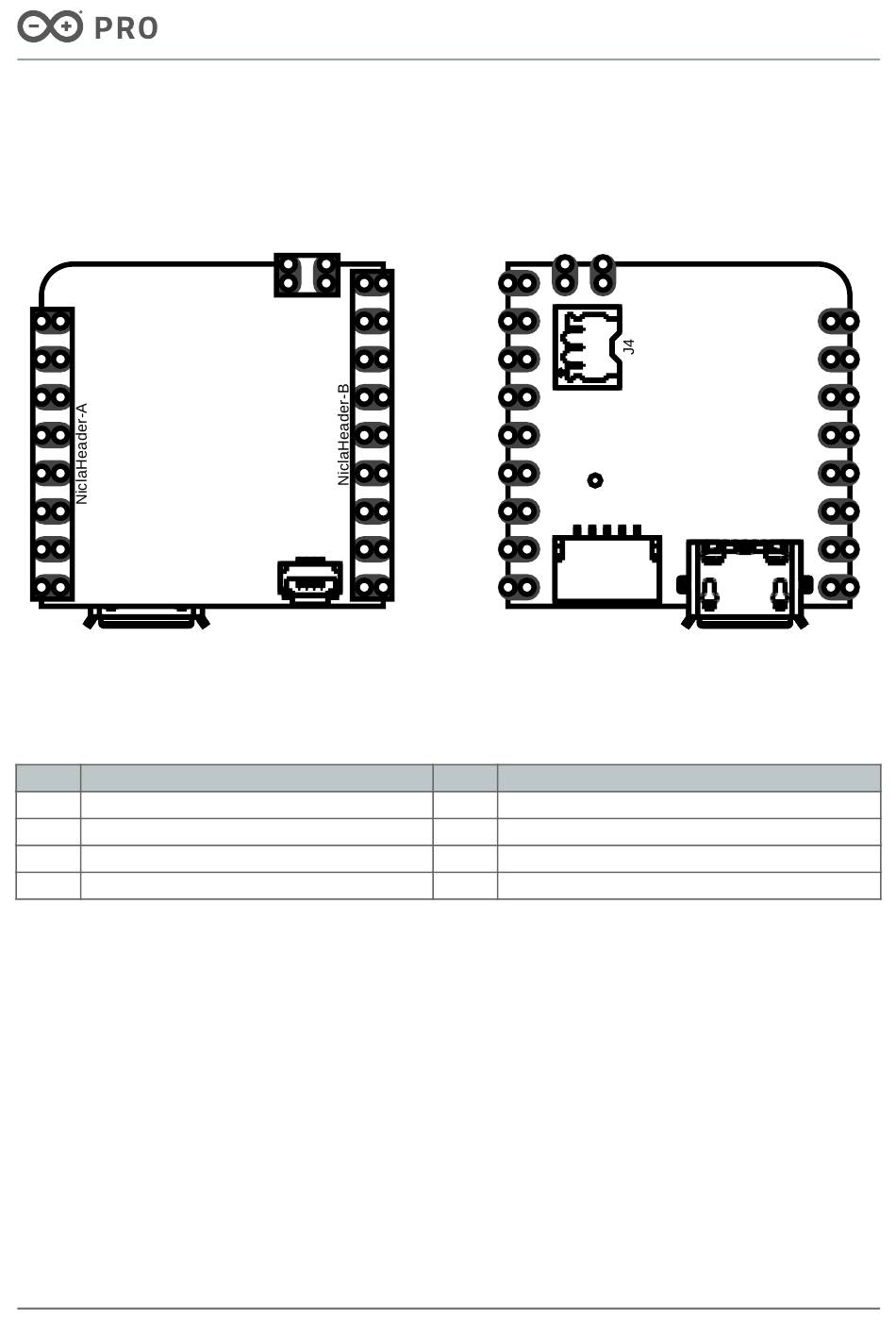

Nicla Voice Topology- Components
Arduino® Nicla Voice
Arduino® Nicla Voice
J5
Ref. Description
J2 Nicla Header B
J4 Battery Connector (BM03B-ACHSS)
J6 External Microphone (FH33J-4S)
J7 J7
BOTTOM
