- Page 1 Impact Drill 600W TTB877DRH EAN:5059340251905 WARNING: Read the instructions before using the product!
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... - Page 3 Safety information TTB877DRH by TITAN Safety warnings General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
-
Page 4: Safety Information
Safety information TTB877DRH by TITAN Safety warnings >Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. - Page 5 Safety information TTB877DRH by TITAN >Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. >Do not overreach. Keep proper footing and balance at all times.
- Page 6 Safety information TTB877DRH by TITAN Safety warnings >Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 7 Safety information TTB877DRH by TITAN likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury. b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
- Page 8 Safety information TTB877DRH by TITAN Safety warnings >Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. >Switch off and disconnect from the power supply if there are malfunctions.
- Page 9 Safety information TTB877DRH by TITAN The following information applies to professional users only but is good practice for all users: ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST > The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts.
- Page 10 Safety information TTB877DRH by TITAN Safety warnings This limit is the legal maximum; the most you can breathe after the right controls have been used. How to reduce the amount of dust? Reduce the amount of cutting by using the best sizes of building products.
- Page 11 Safety information TTB877DRH by TITAN Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: • Work in a well-ventilated area • Work with approved safety equipment, such as those dus masks that are specially designed to filter microscopic particles.
- Page 12 Safety information TTB877DRH by TITAN Safety warnings Warning: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used and the materials being cut or drilled.
- Page 13 Safety information TTB877DRH by TITAN Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days.
- Page 14 Safety information TTB877DRH by TITAN Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property.
-
Page 15: Your Product

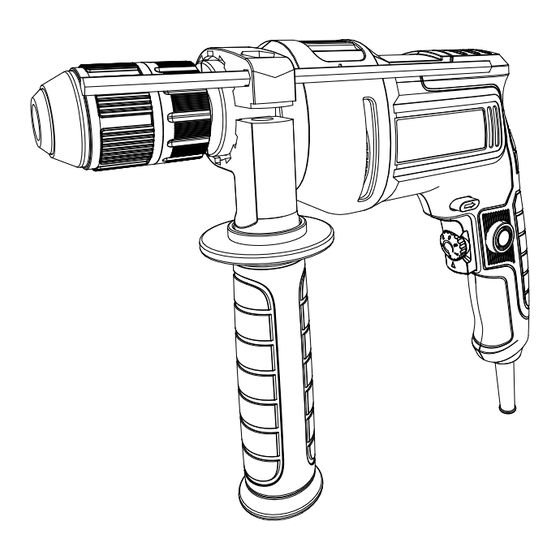

Your product TTB877DRH by TITAN Your product 1. Chuck jaws 9. Lock-on button 2. Chuck sleeve 10. Main handle 3. Keyless chuck 11. Power cord with plug 4. Collar 12. On/off switch 5. Mode selector 13. Speed dial 6. Depth stop 14. - Page 16 Your product TTB877DRH by TITAN Technical specification General > Rated voltage, frequency : 220 – 240 V~ ,50 Hz > Rated power input : 600 W > Rated no load speed n : 0 - 3000 min > Impact rate : 0 - 48000 min >...
- Page 17 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION TTB877DRH = Model Number TT = TITAN B = 220-240V~ 877 - Sequential Code...
-
Page 18: Before You Start
Before you start TTB877DRH by TITAN Setup WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures... - Page 19 Before you start TTB877DRH by TITAN WARNING! After a short operation, switch the product off and check once again that the bit is properly fastened! Caution, the bit could be hot! Replacing/Removing > Hold the keyless chuck (3) in position and turn the chuck sleeve (2) anticlockwise until the chuck jaws (1) have opened wide enough to remove the bit.
-
Page 20: In More Detail
TTB877DRH by TITAN more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee EC declaration of conformity... - Page 21 Product functions TTB877DRH by TITAN Intended use This product is intended for drilling in wood, and similar materials, e.g. MDF, plywood etc, plastic and metal as well as for impact drilling in masonry. It should not be used for screw driving and working on materials that are dangerous to health.
- Page 22 Product functions TTB877DRH by TITAN Mode selector Select the mode before operation. This product can be operated either in hammer drilling or drilling. WARNING! Only change the mode settings when the product is switched off and has come to a complete stop! Always ensure that...
- Page 23 Product functions TTB877DRH by TITAN WARNING! Only change the rotational direction when the product is switched off and has come to a complete stop! Always ensure that the forward / reverse rotation control is adjusted to the correct position depending on the intended operation!
- Page 24 Product functions TTB877DRH by TITAN Switching on/off Continuous mode > c t i switch (12) and hold it in position (Fig. 8). > Press the lock-on button (9) to lock the on/off switch (12) (Fig. 8). > Release both switches. The on/off switch (12) is now locked-on for continuous use.
- Page 25 Operation TTB877DRH by TITAN General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > Double check that the accessories and attachments are properly fixed >...
- Page 26 Operation TTB877DRH by TITAN Drilling General drilling WARNING! During operation fine dust will be generated Some dusts are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear a dust mask to protect yourself against hazards resulting from fine dust >...
- Page 27 Operation / Care and maintenance TTB877DRH by TITAN Drilling mode Use this function to drill holes into wood, wood similar materials, plastic or metal. > Set the mode selector to the correct position. > Insert a suitable drill bit. Punch the drilling point before operation in order to avoid slipping of the drill bit.
- Page 28 Care and maintenance TTB877DRH by TITAN General cleaning > Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again. Maintenance Before and after each use, check the product and accessories (or attachments) for wear and damage.
- Page 29 Care and maintenance TTB877DRH by TITAN WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
-
Page 30: Troubleshooting
Troubleshooting/Recycling and disposal TTB877DRH by TITAN Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! -
Page 31: Guarantee
We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN 600W Impact Drill) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. -
Page 32: Ec Declaration Of Conformity
EC declaration of conformity TTB877DRH by TITAN EC declaration of conformity (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARA IA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto •... - Page 33 EC declaration of conformity TTB877DRH by TITAN Directive 2006/42/CE relative aux machines 2014/30/UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à la limitation de l’utilisation de certaines substances dangereuses dans les équipements électriques et électroniques 2006/42/WE w zmienionej dyrektywie maszynowej 2014/30/UE ze zmianami Dyrektywa Kompatybilność...
- Page 34 EC declaration of conformity TTB877DRH by TITAN EC declaration of conformity (UK) DECLARATION OF CONFORMITY Product • 600W Impact Drill • TTB877DRH • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited...
