Summary of Contents for Titan TTD129COM

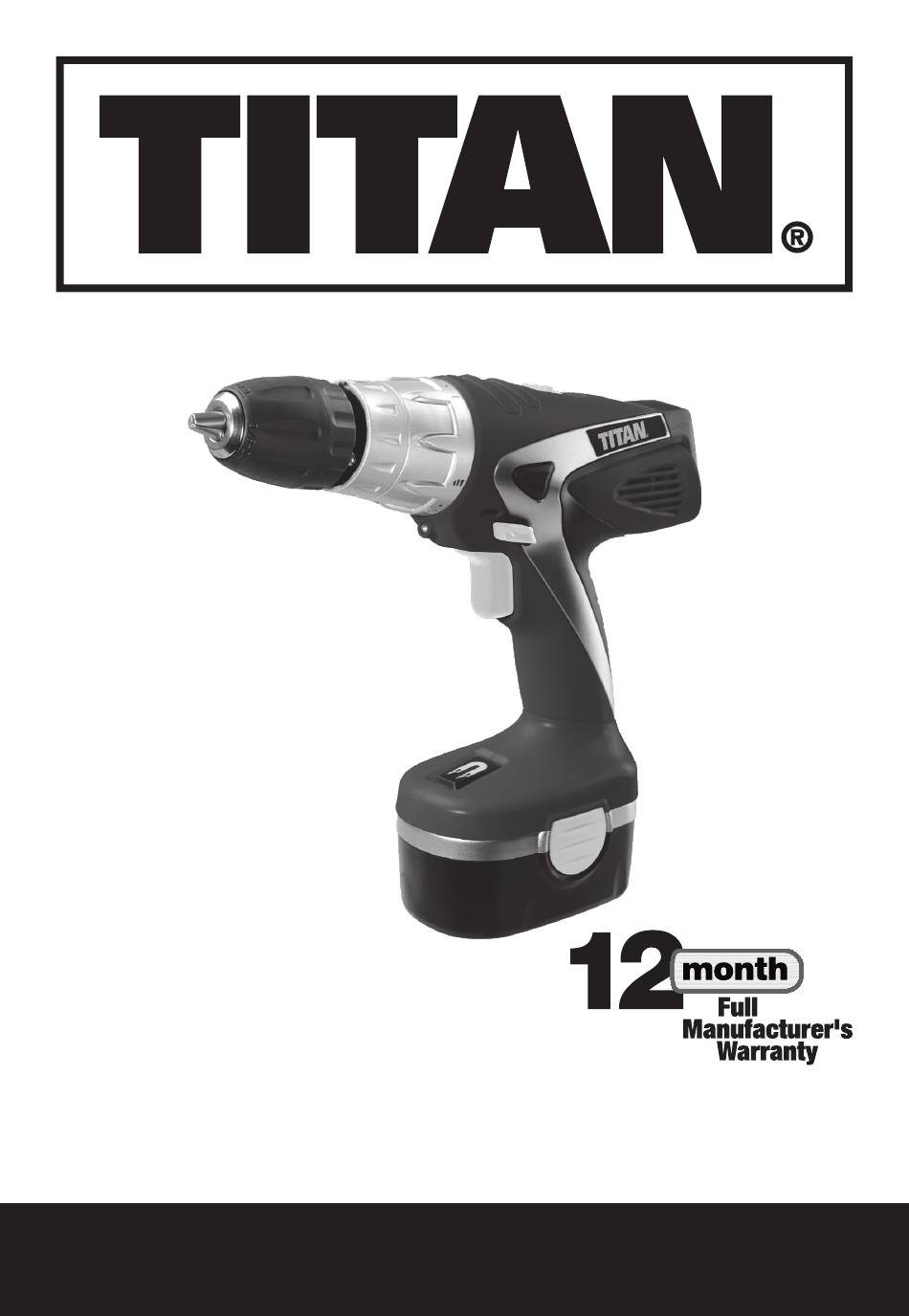

- Page 1 SAFETY AND OPERATING MANUAL COMBI DRILL TTD129COM & TTE130COM...
- Page 3 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the COMBI DRILL TTD129COM & TTE130COM...
-
Page 6: Health Advice
battery terminals together may cause burns or a fire. d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. - Page 7 , and move to a well vented area to allow the fumes to vent to atmosphere. Caution is there is leaking liquid from the battery wear protective clothing, glasses and clothes as this can be acidic. Always disconnect battery charger and remove battery from charger when the charging is complete. COMBI DRILL TTD129COM & TTE130COM...
- Page 8 FOR BATTERY Always remove the battery pack from the charger immediately after re-charging is completed. When not in use, remove a charged battery pack from the charger. Do not charge a damaged battery pack. Do not charge non-rechargeable batteries. Lithium-ion and lithium polymer cells and battery packs may get hot, explode or ignite and cause serious injury if exposed to abuse conditions.
- Page 9 The use of other tools will reduce the users’ total working period on this tool. COMBI DRILL TTD129COM & TTE130COM...
- Page 10 Helping to minimise your vibration exposure risk. ALWAYS use sharp chisels, drills and blades Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) Avoid using tools in temperatures of 10°C or less Plan your work schedule to spread any high vibration tool use across a number of days.
- Page 11 Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point Always charge the battery pack between temperatures 0°C to 30°C Indoor use only Do not expose to rain or water Do not burn COMBI DRILL TTD129COM & TTE130COM...
- Page 12 1. KEYLESS CHUCK 2. HAMMER OR DRILL CONTROL 3. VARIABLE CLUTCH 4. GEAR CONTROL 5. BATTERY CAPACITY INDICATOR 6. BATTERY CAPACITY INDICATOR SWITCH 7. FORWARD AND REVERSE ROTATION SELECTOR 8. SOFT GRIP HANDLE 9. BATTERY PACK LATCH 10. BATTERY PACK 11.
-
Page 13: Technical Data
Sound pressure level 92.5dB(A) KwA=3dB(A) Wear ear protection when sound pressure is over 85dB(A) ACCESSORIES For TTD129COM 1.5Ah Ni-Cd Battery (TTD163BAT) 2pcs 1h Charger (TTB170CHR) For TTE130COM 1.5Ah Ni-Cd Battery (TTE162BAT) 2pcs 1h Charger (TTB165CHR) COMBI DRILL TTD129COM & TTE130COM... -
Page 14: Charging Procedure
CHARGING PROCEdURE NOTE: Before using the tool, read the instruction book carefully. 1. BEFORE USING YOUR CORDLESS DRILL Your battery pack is UNCHARGED and you must charge once before use. When you charge the new battery or one which has not been used for long periods of time, it may not reach full charge until after you have discharged it fully in use and recharge it several times. - Page 15 LO (mark is 1) or HI (mark is 2) speeds. A slide switch is located on top of the drill to select either LO or HI speed. When using the drill in the LO speed range, Fig F COMBI DRILL TTD129COM & TTE130COM...
- Page 16 the speed will decrease and the drill will have greater power and torque. When using the drill in the HI speed range, the speed will increase and the drill will have less power and torque. WARNING: To prevent gear damage, always allow the chuck to come to a complete stop before changing the direction of rotation or the two-speed gear train.
-
Page 17: Battery Capacity Indicator
The indicator (5) is located on top back of the drill. Press the button (6) to show the current battery capacity. Better to charge the battery when the capacity is less than 20%. Fig L COMBI DRILL TTD129COM & TTE130COM... -
Page 18: Problem Solution
12. DISPOSAL OF AN EXHAUSTED BATTERY PACK To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains NI-CD batteries. Consult your local waste authority for information regarding available recycling and/ or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy duty adhesive tape... -
Page 19: Maintenance
Always store your tool in a dry place. Keep the motor ventilation slots clean. Occasionally you may see sparks through the ventilation slots. This is normal and will not damage your power tool. COMBI DRILL TTD129COM & TTE130COM... -
Page 20: Environmental Protection
ENVIRONMENTAl PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. For further information visit www.recycle-more.co.uk PlUG REPlACEMENT(UK and Ireland only) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are coloured in accordance with the following code:... - Page 21 Declaration of Conformity We, Importer Titan Power Tools (UK) Ltd BA22 8RT Declare that the product COMBI DRILL TTD129COM & TTE130COM Complies with the following Directives, 98/37/EC until December 28th 2009 and then with 2006/42/EC from 29th December 2009 Machinery Directive...
- Page 23 COMBI DRILL TTD129COM & TTE130COM...
