- Page 1 SAFETY AND OPERATING MANUAL Original Instructions 18V LI-ION COMBI DRILL TTI526COM...
- Page 3 - Failure to follow manufacturer’s guidelines - Loss of use of the goods This guarantee does not affect your statutory rights. This guarantee is only valid in the For any enquiries relating to the guarantee please refer to your retailer. 18V LI-ION COMBI DRILL TTI526COM...
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 18V LI-ION COMBI DRILL TTI526COM...
- Page 6 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR DRILL DRIVER FOR DRILL 1. Wear ear protection with cordless drill. Exposure to noise can cause hearing loss. 2. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. 3. Hold tool by insulated gripping surfaces when performing an operation where the drill bit tool may contact hidden wiring.
- Page 7 To reduce your exposure to these chemicals: Work in a well ventilated area. Work with approved safety equipment, such as those dust masks that specially designed to filter out microscopic particles and use the dust extraction facility at all time. 18V LI-ION COMBI DRILL TTI526COM...
- Page 8 ADDITIONAL SAFETY WARNING FOR CONSTRUCTION DUST The updated Control of Substances Hazardous to Health Regulations 1st October 2012 now also targets to reduce the risks associated with silica, wood and gypsum dusts. Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance;...
-
Page 9: Double Insulation
Be sure the supply is the same as the voltage given on the rating plate for the charger. The charger is fitted with a two-core cable and plug. Remove the mains plug from socket and battery from the drill before carrying out any adjustment or servicing. 18V LI-ION COMBI DRILL TTI526COM... - Page 10 SYMBOLS To reduce the risk of injury, user must read instruction manual Read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Wear gloves Double insulation 1hour charging time Fuse T 2A time lag fuse with rated current of 2A Indoor use only Do not expose to rain or water Do not burn...

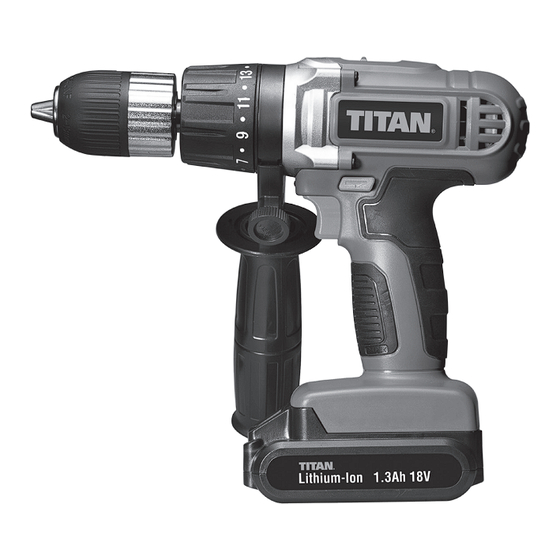

- Page 11 2. Torque ring with drill/hammer selector 3. Two-speed gear control 4. Forward/Reverse rotation control 5. On/off switch with variable speed control 6. Battery pack 7. Battery pack release button 8. Auxiliary handle 9. Charger+charger base 10. Depth gauge 18V LI-ION COMBI DRILL TTI526COM...
-
Page 12: Technical Data
TECHNICAL DATA Voltage: 0-350/0-1250/min Speed: 0-4550/0-16250/min Impact rate: 13mm Maximum capacity of the chuck: Drilling Capacity: 25mm Wood: 10mm Steel: 13mm Masonry: 1.67kg Machine weight: Charger: TTB528CHR Charger model: 100-240V~ 50-60Hz 40W Input: 1200mA Output: Charging time: 0.4kg Weight: Battery: TTI527BAT Battery model: 18V/1.3Ah 23.4Wh... -
Page 13: Noise Information
A weighted sound pressure : 77.7dB(A) A weighted sound power : 88.7dB(A) & K =3.0dB(A) Wear ear protection when sound pressure is over 80dB(A) ACCESSOIRES 1.3Ah Li-ion battery pack 2pcs 1hr Charger Auxiliary handle Depth Gauge Charging base 18V LI-ION COMBI DRILL TTI526COM... -
Page 14: Charging Procedure
CHARGING PROCEDURE NOTE: Before using the tool, read the instruction book carefully. INTENDED USE This cordless combi drill shall be used for drilling metal or wood or similar materials, and occasionally for impact drilling on masonry or similar materials. Other uses for the tool will lead to the damage of the tool and a series of dangers to the operator. - Page 15 (lever is moved to the right) to remove screws or release a jammed drill bit. WARNING: Never change the direction of rotation when the chuck is rotating. Wait until Fig. 4 it has topped. 18V LI-ION COMBI DRILL TTI526COM...
- Page 16 3. TWO-SPEED GEAR CONTROL (Fig. 5 & 6) The drill has a two-speed gear control designed for drilling or driving at low (mark is 1) or high (mark is 2) speeds. A slide switch (3) is located on top of the drill to select either low or high speed.
-
Page 17: Troubleshooting
The forward and reverse switch, which is on top of the trigger, is positioned in the lock function. Unlock the forward and reverse switch putting it into the required rotation position. Push the trigger and the drill will start to rotate. 18V LI-ION COMBI DRILL TTI526COM... - Page 18 2. THE DRILL STOPS BEFORE THE SCREW IS COMPLETELY TIGHTENED. WHY? Verify the torque position of the variable clutch, you can find the variable clutch between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position is the highest torque (screw driving force).
-
Page 19: Maintenance
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recyclemore.co.uk 18V LI-ION COMBI DRILL TTI526COM... -
Page 20: Declaration Of Conformity
EN 60335-2-29 EN 62233 EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 Authorised signatory and technical file holder Date: 01/07/2013 Signature: Name / title: Peter Harries / Quality Manager Titan Power Tools (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
