SAFETY AND OPERATING MANUAL
1050W PERCUSSION DRILL
TTB085DRL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTB085DRL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Titan TTB085DRL

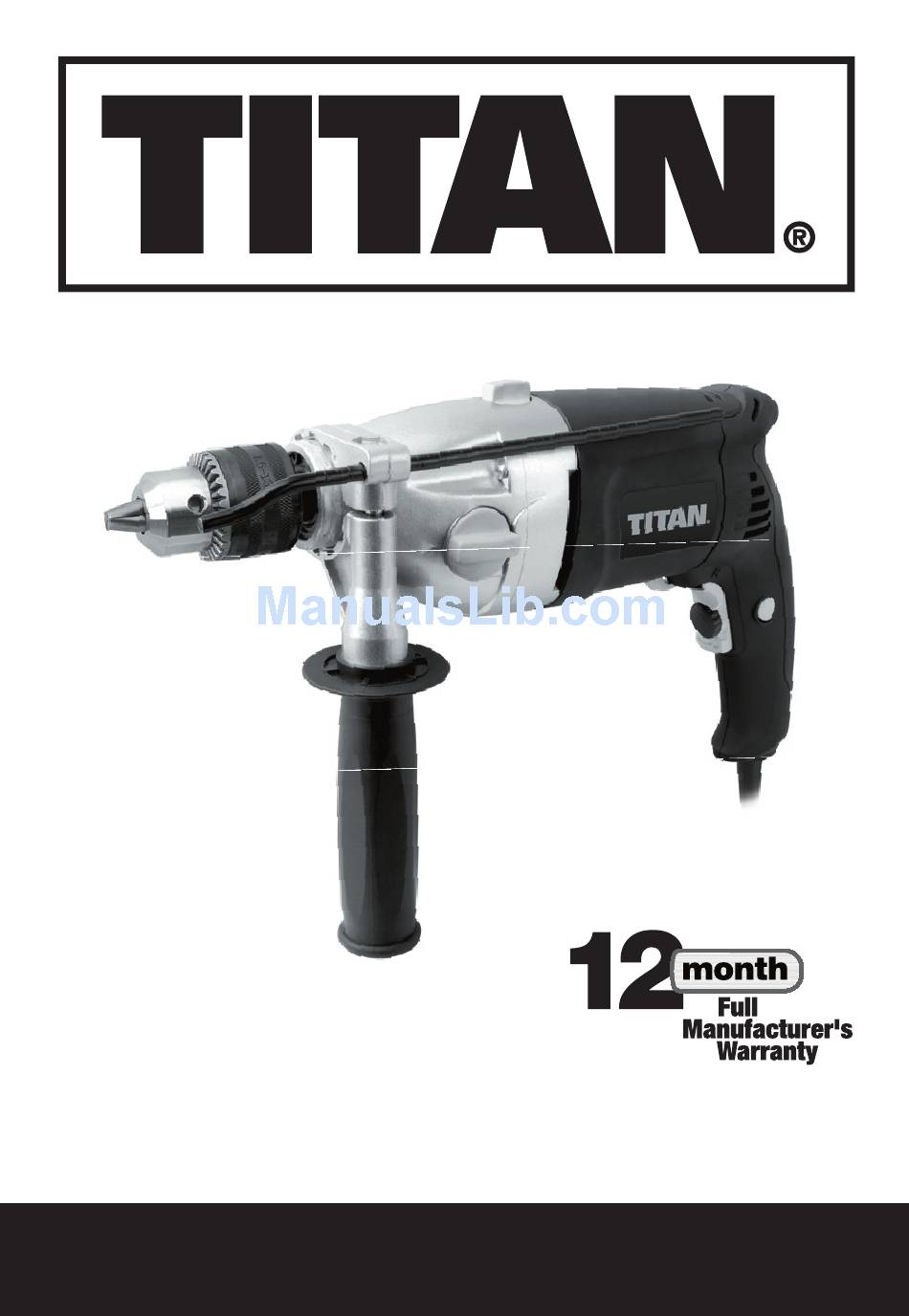

  • Page 1 SAFETY AND OPERATING MANUAL 1050W PERCUSSION DRILL TTB085DRL...
  • Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
  • Page 3: Safety Instructions

    -Work with approved safety equipment, such as those dust masks that are specially d. Remove any adjusting key or wrench before turning the power tool designed to filter microscopic particles. on. A wrench or a key left attached to a rotating part of the power tool may result 1050W PERCUSSION DRILL TTB085DRL...
  • Page 4 1050W PERCUSSION DRILL TTB085DRL...
  • Page 5 1. DEPTH GAUGE 2. CHUCK 3. TWO SPEED GEARBOX SELECTOR 4. DRILL/IMPACT ACTION SELECTOR SWITCH 5. SWITCH LOCK-ON BUTTON 6. ON/OFF SWITCH 7. VARIABLE SPEED CONTROL 8. FORWARD/REVERSE SELECTOR SWITCH 9. CHUCK KEY 10. AUXILIARY HANDLE 1050W PERCUSSION DRILL TTB085DRL...
  • Page 6: Technical Data

    Depress on/off switch then lock-on button, release on/off switch first and lock-on button second.Your switch is now locked on for continuous use. To switch off your tool just depress and release the on/off switch. Fig D 1050W PERCUSSION DRILL TTB085DRL...
  • Page 7: Working Hints For Your Drill

    If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Fig H 1050W PERCUSSION DRILL TTB085DRL...
  • Page 8: Troubleshooting

    If a 13AMP (BS1363 or BS1363/A) plug is used, a 13 AMP fuse must be fitted, or if any other type of plug is used a 13 AMP fuse must be fitted. 13 AMP FUSE BLUE N (NEUTRAL) BROWN L (LIVE) OUTER SLEEVE CABLE GRIP 1050W PERCUSSION DRILL TTB085DRL...
  • Page 9: Declaration Of Conformity

    Declaration of Conformity We, Importer Titan Power Tools (UK) Ltd BA22 8RT Declare that the product PERCUSSION DRILL TTB085DRL Complies with the following Directives, Machinery Directive 98/37/EC Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment 2002/95/EC Standards and technical specifications referred to:...
  • Page 10 1050W PERCUSSION DRILL TTB085DRL...
