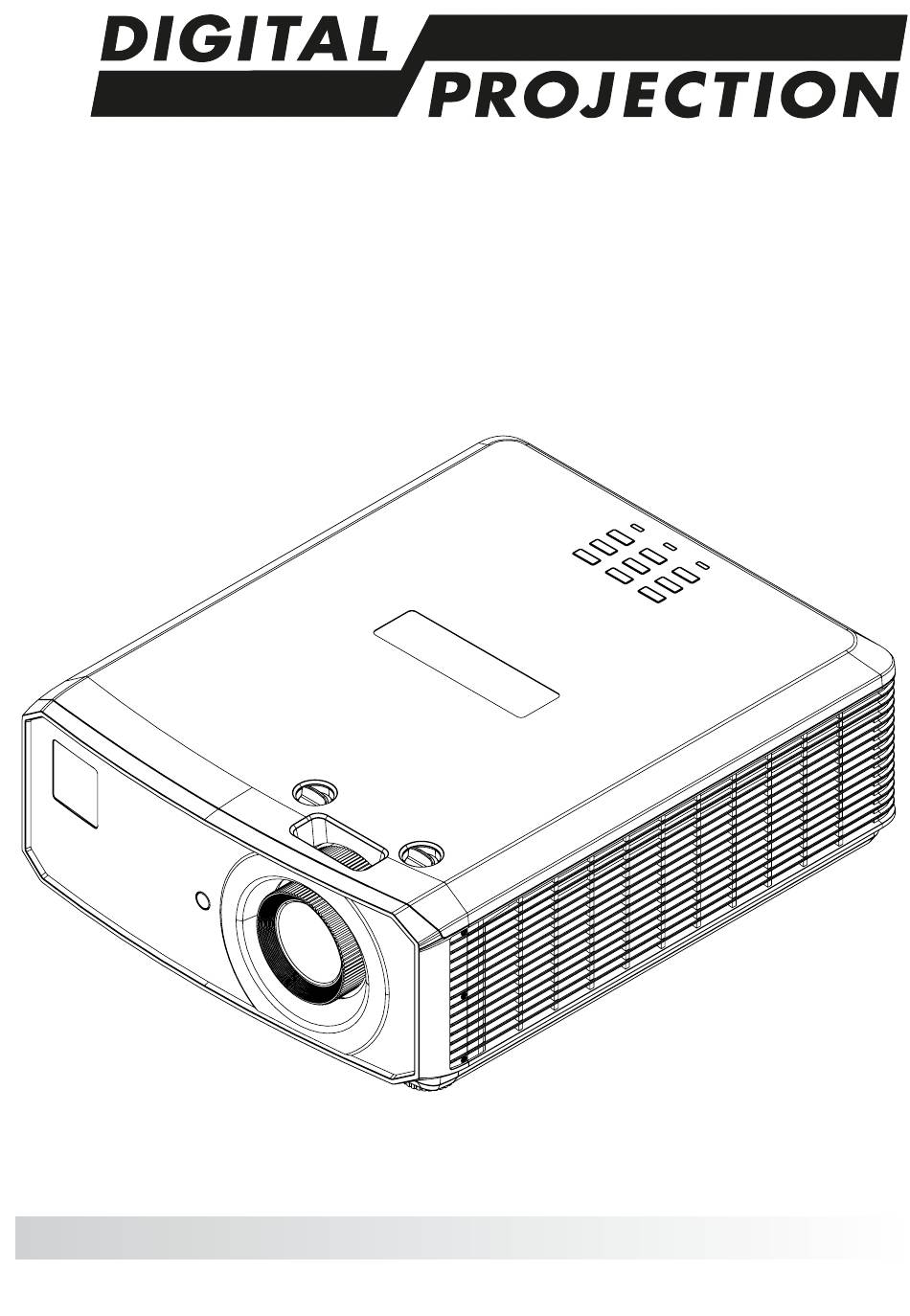

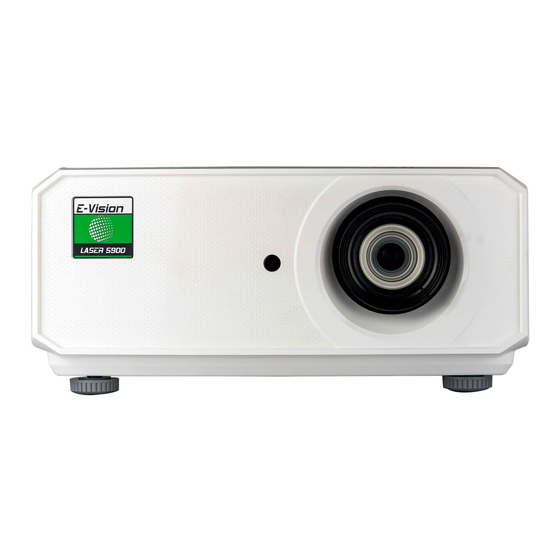

- Page 1 E-Vision Laser 5900 Series IMPORTANT INFORMATION Rev B September 2020 121-182B...
- Page 2 Digital Projection E-Vision Laser 5900 Series This page is intentionally left blank Important Information Rev B September 2020 page 2...
-
Page 3: Contact Information
Contact Information Digital Projection E-Vision Laser 5900 Series Contact Information China North America Europe Digital Projection China Digital Projection Inc. Digital Projection Limited 中 国 北 京 市 朝 阳 区 芍 药 居 北 55 Chastain Road, Suite 115, Greenside Way, Middleton, 里... -
Page 4: Table Of Contents
Digital Projection E-Vision Laser 5900 Series Contents Contents Contact Information Contents Symbols used in this document Additional Documentation Electrical and Physical Specifications Laser Precautions Projector Laser Parameters Remote Control - Laser Pointer Laser Pointer Parameters Location of Laser Aperture Interlock Switches... -
Page 5: Symbols Used In This Document
Please use the QR code (also located on the projector) to access the latest E- Vision projector user guides and other documentation via the Digital Projection website. Or visit the products specification page on the Digital Projection website to download the latest user guide and other documentation. Important Information... -
Page 6: Electrical And Physical Specifications
Digital Projection E-Vision Laser 5900 Series Electrical and Physical Specifications Electrical and Physical Specifications Mains Voltage 100-240VAC 50/60Hz 5.3A Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Operating Humidity 10% to 85% non-condensing... -
Page 7: Laser Precautions
Laser Precautions Digital Projection E-Vision Laser 5900 Series Laser Precautions Projector CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects. -
Page 8: Remote Control - Laser Pointer
Digital Projection E-Vision Laser 5900 Series Laser Precautions Remote Control - Laser Pointer CLASS 2 LASER PRODUCT This Laser Product is designated as Class 2 during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not stare into the beam. -
Page 9: Location Of Laser Aperture
Location of Laser Aperture Digital Projection E-Vision Laser 5900 Series Location of Laser Aperture 1. The laser aperture is located as indicated below. Be careful not to expose the eye to direct laser light. Important Information Rev B September 2020... -
Page 10: Interlock Switches
Digital Projection E-Vision Laser 5900 Series InterlockSwitches Interlock Switches Interlock switches are installed at the main frame, inside the cover. These will power-off the system individually when activated. 1. Will be activated when the top cover is removed. Important Information... -
Page 11: General Precautions
General Precautions Digital Projection E-Vision Laser 5900 Series General Precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 12: Installation Precautions
Digital Projection E-Vision Laser 5900 Series Installation Precautions Installation Precautions The projector must be installed only by suitably qualified personnel, in accordance with local building codes. The projector is heavy. Use safe handling techniques when lifting the projector. Do not drop or knock the projector. - Page 13 Installation Precautions Digital Projection E-Vision Laser 5900 Series Before installation, make sure that the surface, ceiling or rigging that is to support the projector is capable of supporting the combined weight of the projector and lens. Backup safety chains or wires should always be used with ceiling mount installations.
- Page 14 Digital Projection E-Vision Laser 5900 Series Installation Precautions Minimum 500mm Minimum 500mm Minimum 500mm (19.69in) (19.69in) (19.69in) Minimum 100mm (3.94in) Minimum 500mm Minimum 300mm (19.69in) (11.81in) Example Positioning Make sure the lens cap is removed from the lens before operating the projector.
- Page 15 Installation Precautions Digital Projection E-Vision Laser 5900 Series The projector generates heat during use. The internal fans dissipate the heat of the projector when shutting down, which could continue for a certain period. After the projector enters STANDBY MODE, remove the power cord. DO NOT remove the power cord during shutdown as it may cause damage to the projector and may affect the service life of the projector.
-
Page 16: Product Labels
Digital Projection E-Vision Laser 5900 Series Product Labels Product Labels Projector E-Vision Laser 5900 WUXGA Manufacturers ID Label Explanatory Label Laser Aperture Label E-Vision User Guides Follow link for Projector Documentation Suivre le lien pour accéder à la documentation du projecteur Produktdokumentation nden Sie unter dem Link この二次元バーコードをスキャンしてプロジェクターのデータを取得してください... -
Page 17: Remote Control
Product Labels Digital Projection E-Vision Laser 5900 Series Remote Control LASER RADIATION DO NOT STARE INTO BEAM WAVE LENGTH: 640-660nm MAX OUTPUT: <1mW CLASS II LASER PRODUCT Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50 dated June 24.2007. -
Page 18: Label Locations
Digital Projection E-Vision Laser 5900 Series Product Labels Label Locations 1. Location of Hazard Warning Symbol and Laser Aperture Label on the body of the projector. 2. Location of Manufacturer’s ID Label and Explanatory Label with Certification Statement and Risk Statement on the body of the projector. - Page 19 Product Labels Digital Projection E-Vision Laser 5900 Series 3. Location of Remote Control Label on the back of the remote. Important Information Rev B September 2020 page 19...
-
Page 20: Operation And Configuration Precautions
Digital Projection E-Vision Laser 5900 Series Operation and Configuration Precautions Operation and Configuration Precautions Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector. -
Page 21: Compliance With International Standards
RF Interference The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment. -
Page 22: What's In The Box
Digital Projection E-Vision Laser 5900 Series What's in the box? What's in the box? Projector Remote Control Batteries (2xAAA) Important Information Book VGA Cable Power Cable, Power Cable, North Power Cable, Power Cable, UK Europe America China Important Information Rev B September 2020... -
Page 23: Basic Operating Instructions
Basic Operating Instructions Digital Projection E-Vision Laser 5900 Series Basic Operating Instructions Positioning the screen and projector 1. Install the screen, ensuring that it is in the best position for viewing by your audience. 2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 24: Switching The Projector On
Digital Projection E-Vision Laser 5900 Series Basic Operating Instructions Switching the projector on 1. Connect the power cable between the mains supply and the projector. The POWER indicator lights green to indicate that the projector is in STANDBY mode. 2. Press one of the following buttons: On the remote control, the ON button On the projector control panel, the POWER button. -
Page 25: Selecting A Test Pattern
Basic Operating Instructions Digital Projection E-Vision Laser 5900 Series Selecting a test pattern The following test patterns are available: RGB Ramps, Color Bars, Step Bars, Check Board, Grid, Horizontal Lines, Vertical Lines, Diagonal Lines, Horizontal Ramp, Vertical Ramp, White, Red, Green, Blue, Black, None. -
Page 26: Adjusting The Lens
Digital Projection E-Vision Laser 5900 Series Basic Operating Instructions Adjusting the lens The lens can be adjusted using the controls on the lens and the controls on the body of the projector: Use the horizontal shift control the vertical shift control... -
Page 27: Control Panel
Control panel Digital Projection E-Vision Laser 5900 Series Control panel 1. AUTO Optimizes the image size, position and resolution 2. Arrow buttons & ENTER Navigation buttons used to highlight menu entries in the OSD. Press POWER ENTER to open or execute the highlighted menu entry. -
Page 28: Projector Indicators
Digital Projection E-Vision Laser 5900 Series Control panel Projector indicators 1. Power On = projector is switched on Flashing = starting up or cooling down 2. Light On = error 3. Temp. On = error Indicators Important Information Rev B September 2020... -
Page 29: Remote Control
Remote control Digital Projection E-Vision Laser 5900 Series Remote control 1. Power ON / OFF Turns power on and off. 2. PC Select the Computer In input. 3. HDMI Select and toggle the HDMI 1, HDMI 2 or DVI-D input. - Page 30 Digital Projection E-Vision Laser 5900 Series Remote control 13. Laser Enables the laser pointer. 14. MHL Play controls Play, pause, stop, rewind and fast forward MHL content. 15. Auto / ID input 0 Automatically adjust frequency, phase and position. Use with Source / ID to set the remote ID to 0.
- Page 31 Remote control Digital Projection E-Vision Laser 5900 Series 24. Blank / ID input 6 Shows and hides the projected image. When blanking is enabled, the light source is completely switched off and the screen is blank. Use with Source / ID to set the remote ID to 6.
