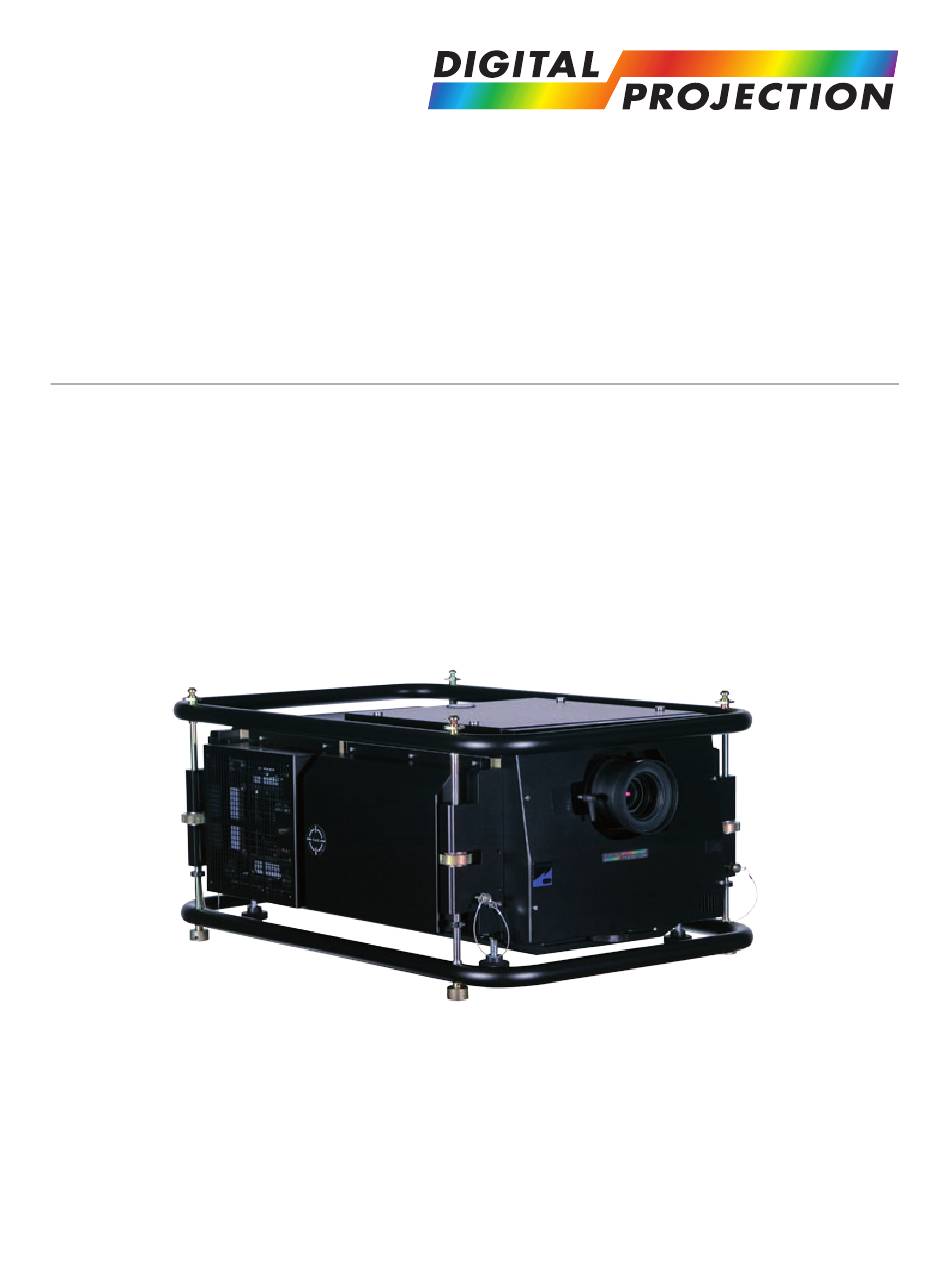

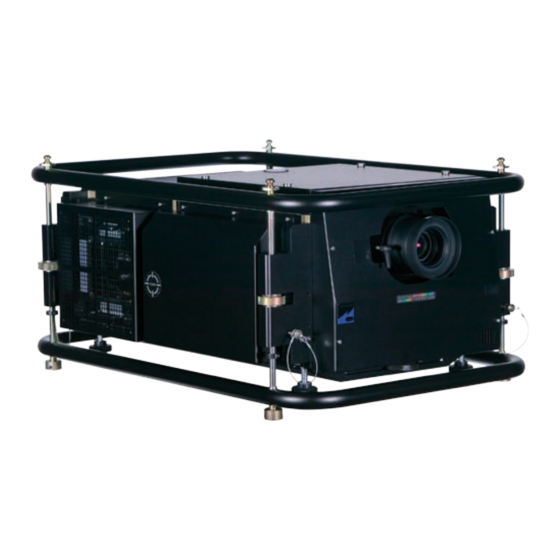

LIGHTNING 30/40/45-1080p
LIGHTNING 40/45-1080p Ultra Contrast
LIGHTNING 40/45-1080p 3D
LIGHTNING 40/45-1080p 3D-Ultra Contrast
Super High Brightness Digital Video Projector
16:9 widescreen display
User Manual
108-721B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIGHTING 30-1080p and is the answer not in the manual?

Questions and answers

Related Manuals for Digital Projection LIGHTING 30-1080p

Summary of Contents for Digital Projection LIGHTING 30-1080p

  • Page 1 All manuals and user guides at all-guides.com LIGHTNING 30/40/45-1080p LIGHTNING 40/45-1080p Ultra Contrast LIGHTNING 40/45-1080p 3D LIGHTNING 40/45-1080p 3D-Ultra Contrast Super High Brightness Digital Video Projector 16:9 widescreen display User Manual 108-721B...
  • Page 2 All manuals and user guides at all-guides.com Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Declaration of Conformity Directives covered by this Declaration 2004/108/EC Electromagnetic Compatibility Directive. 2006/95/EC Low Voltage Equipment Directive. Products covered by this Declaration Large screen video projector type...
  • Page 3 All manuals and user guides at all-guides.com Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Declaration of Conformity Directives covered by this Declaration 2004/108/EC Electromagnetic Compatibility Directive. 2006/95/EC Low Voltage Equipment Directive. Products covered by this Declaration Large screen video projector type...
  • Page 4 All manuals and user guides at all-guides.com Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...
  • Page 5 Product revision • Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.
  • Page 6 Handle the power cable carefully and avoid sharp bends. Do not use a damaged power cable. There are no user-serviceable parts inside the lamp module. The whole module should be replaced and returned to Digital Projection for re- furbishment. Take care when removing the lamp module, as it is heavy (>10kg).
  • Page 7 All manuals and user guides at all-guides.com Digital Projection User Manual Important Information LIGHTNING 1080p, 1080p 3D/UC Installation precautions Notes Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source.
  • Page 8 Electronic Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised.
  • Page 9 All manuals and user guides at all-guides.com Digital Projection User Manual Important Information LIGHTNING 1080p, 1080p 3D/UC Digital Projection Contact details Notes Digital Projection Limited, Greenside Way, Middleton, Manchester M24 1XX, UK. Registered in England No. 2207264, Registered Office: as above...
  • Page 10 All manuals and user guides at all-guides.com Important Information Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Page x Rev B. January 2010...
  • Page 11 ..................viii ..............................viii Noise ..........................viii RF Interference ..........viii European Waste Electrical and Electronic Equipment (WEEE) Directive Digital Projection Contact details ......................ix 1. Introduction What’s in the box? ..........................1.2 Key features of the projector ......................1.3 Getting to know the projector ......................

  • Page 12: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Fitting the lens ........................... 2.14 Shifting the image ..........................2.15 Mounting the projector ........................2.16 ......................2.16 Adjustment for table mounting ......................2.16...
  • Page 13 All manuals and user guides at all-guides.com Digital Projection User Manual Table of Contents LIGHTNING 1080p, 1080p 3D/UC The remote control ........................... 4.10 ............................4.10 Layout ............................4.10 Timeout Using the control keys ........................4.11 .............................4.11 Power ............................4.11 Shutter ...........................4.11 On-Screen-Display .............................4.11...
  • Page 14 ..........................4.54 ........................4.54 Projector Information .......................... 4.54 Source Information ......................4.55 Digital Projection Information Controlling the projector when Input 8 is being used ............. 4.56 ..................4.56 Differences between Input 8 and Inputs 1-7 ..................... 4.56 Input and processing architecture ....................
  • Page 15 All manuals and user guides at all-guides.com Digital Projection User Manual Table of Contents LIGHTNING 1080p, 1080p 3D/UC 5. Userware Introduction ............................5.3 ........................... 5.3 Applet version ........................... 5.4 Standalone version Show page ............................5.5 ............................5.5 On / Off ........................
  • Page 16 All manuals and user guides at all-guides.com Table of Contents Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC 3D page ............................... 5.18 ............................5.18 3D Enable .......................... 5.18 Frame Dominance ..........................5.18 3D Sync Source ............................5.18 Dark Time ............................. 5.18...
  • Page 17 All manuals and user guides at all-guides.com Digital Projection User Manual Table of Contents LIGHTNING 1080p, 1080p 3D/UC 7. Appendix Troubleshooting ..........................7.2 Specifications ............................7.4 ............................ 7.4 Part numbers ............................. 7.4 Optical ............................7.5 Electrical ............................7.5 Physical ............................7.6...
  • Page 18 All manuals and user guides at all-guides.com Table of Contents Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Page xviii Rev B. January 2010...
  • Page 19 All manuals and user guides at all-guides.com 1. Introduction Contents What’s in the box? ..........................1.2 Key features of the projector ......................1.3 Getting to know the projector ......................1.4 ......................1.4 Chassis – lamp, lens and filter ..........................1.5 Lamp-hours meter ....................

  • Page 20: What's In The Box

    All manuals and user guides at all-guides.com 1. Introduction Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC What’s in the box? Notes • Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Lenses are optional. Order lenses from your Digital •...

  • Page 21: Key Features Of The Projector

    LIGHTNING 1080p, 1080p 3D/UC Key features of the projector Notes Congratulations on your purchase of the Digital Projection LIGHTNING 1080p projector. Digital Projection International, Texas Instruments’ first DLP™ partner and the original innovator of the 3-chip DLP™ projector, proudly introduces our third- generation LIGHTNING series —...

  • Page 22: Getting To Know The Projector

    All manuals and user guides at all-guides.com 1. Introduction Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Getting to know the projector Notes Chassis – lamp, lens and filter For information about how to change the lamp or the filter, see section 5.

  • Page 23: Lamp-Hours Meter

    All manuals and user guides at all-guides.com Digital Projection User Manual 1. Introduction LIGHTNING 1080p, 1080p 3D/UC Lamp-hours meter Notes There are two types of Lamp-hours meter, depending on the lamp module that has been fitted, as shown below. Mercury meter...

  • Page 24: Rear Panel - Connection And Control

    All manuals and user guides at all-guides.com 1. Introduction Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Rear panel – connection and control Notes Control Rigging connections frame For information about how to connect the projector, see Control panel Connecting the projector in section 2.
  • Page 25 All manuals and user guides at all-guides.com 2. Installation Contents Screen requirements ......................... 2.3 ............................2.3 Aspect ratio ......................2.3 Fitting the image to the DMD ....................... 2.3 Images displayed full width ......................2.3 Images displayed full height ........................2.4 Diagonal screen sizes ......................
  • Page 26 All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC ......................2.23 Control connection examples ..........................2.23 LAN connection ......................... 2.23 RS232 connection ........................... 2.24 Power connection ........................... 2.24 USA power input ....................... 2.24 Rest of World power input Page 2.2...

  • Page 27: Installation

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Screen requirements Notes Aspect ratio The images are shown here scaled automatically by the Fitting the image to the DMD projector. If the source image supplied to the projector is smaller than 1920 x 1080 pixels, then the image will not fill the DMD.

  • Page 28: Diagonal Screen Sizes

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D) in inches. When dealing with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).

  • Page 29: Fitting The Image To The Screen

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use.

  • Page 30: Positioning The Screen And Projector

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should be 1.2m (4 feet) above the floor and the front row The projector should be of the audience should not have to look up more than 30°...

  • Page 31: Choosing A Lens

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Choosing a lens Notes A number of lenses are available for use with the projector. Which lens you choose will depend on the screen size, image aspect ratio, projection distance and light The High Brightness lenses are output.

  • Page 32: Choosing A Lens Using The Lens Charts

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Choosing a lens using the lens charts Notes Use the charts on this page and on the following pages to choose which lens best suits your application.

  • Page 33: Full Height Image 1.66:1 (Vista)

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Lens charts continued Notes Full height image 1.66:1 (Vista) This chart has a TRF of 1.07, Use the chart below to choose which lens best suits your application.
  • Page 34 All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Lens charts continued Notes Full height image 1.6:1 This chart has a TRF of 1.11, for Use the chart below to choose which lens best suits your application.
  • Page 35 All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Lens charts continued Notes Full height image 4:3 This chart has a TRF of 1.33, Use the chart below to choose which lens best suits your application.

  • Page 36: Choosing A Lens By Calculation

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Notes Choosing a lens by calculation For any screen size not listed above, or if you need to be more precise, then use the calculations below.

  • Page 37: Useful Lens Calculations

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Useful lens calculations Notes The Throw ratio for a particular The following lens calculations may be useful: lens is fixed, but assumes that the image fills the width of the DMD.

  • Page 38: Fitting The Lens

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Fitting the lens Notes • Turn the lens release lever anti-clockwise so that it is pointing upwards, to open Each time a new lens is the lock.

  • Page 39: Shifting The Image

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Shifting the image Notes For more information on using The normal position for the projector is at the centre of the screen. However, you...

  • Page 40: Mounting The Projector

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Mounting the projector Notes The projector is designed to be suspended from a lighting truss by its rigging BEFORE INSTALLING THE frame. However, the four adjustable feet under the chassis allow the projector to be...

  • Page 41: Yaw Adjustment

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Yaw adjustment Notes The yaw handle uses a ratchet to move the front of the projector from left to right. To change the direction of movement, push the direction lever on the handle up or down.

  • Page 42: Stacking Projectors

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Stacking projectors Notes The rigging frame is capable of supporting the weight of up to three other projectors, using the built-in frame couplings. The projectors can be stacked on top of each other, or suspended below each other.

  • Page 43: Connecting The Projector

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Connecting the projector Notes Side input connection panel Control Rear input connection panel connection panel Signal Inputs The following inputs are available: 3. DVI For more information on 4.

  • Page 44: Input Format, Dvi Input 3

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Input format, DVI input 3 Notes Single DVI-D Sources upto 1920x1080 resolution; 24- 60Hz; 8bits per colour. For important information about Input formats, DVI input 8...

  • Page 45: Dvi Input Connection Examples

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC DVI Input connection examples Notes Projector Input 3 Single DVI video source Input 8 MAIN Single or Dual DVI video source Dual DVI:...

  • Page 46: 3D Connection Examples

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC 3D connection examples Notes 3D sources up to 60Hz, requiring frame doubling and left/right interleaving Projector Video Inputs 1-7 Sync in Sync 3D server...

  • Page 47: Control Connection Examples

    All manuals and user guides at all-guides.com Digital Projection User Manual 2. Installation LIGHTNING 1080p, 1080p 3D/UC Control connection examples Notes LAN connection All of the projector’s features can be controlled via a LAN connection, using a For more information about pin standard internet browser package such as Internet Explorer.

  • Page 48: Power Connection

    All manuals and user guides at all-guides.com 2. Installation Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Power connection Notes USA power input Make sure the main power switch is off before connecting the power cable. Firmly push in the Hubbell connector, then turn clockwise to lock.

  • Page 49: Getting Started

    All manuals and user guides at all-guides.com 3. Getting started Contents Switching the projector on ....................... 3.2 Selecting an input or test pattern ....................3.2 ..............................3.2 Input ............................3.2 Test pattern Adjusting the lens ..........................3.3 .............................. 3.3 Focus ...............................

  • Page 50: Switching The Projector On

    All manuals and user guides at all-guides.com 3. Getting started Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Switching the projector on Notes • Connect the power cable between the mains supply and the projector. For more information about •...

  • Page 51: Adjusting The Lens

    All manuals and user guides at all-guides.com Digital Projection User Manual 3. Getting started LIGHTNING 1080p, 1080p 3D/UC Adjusting the lens Notes Focus Each time a new lens is fitted to the projector, • Press followed by to adjust the focus.

  • Page 52: Adjusting The Projected Image

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 3. Getting started Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...
  • Page 53 All manuals and user guides at all-guides.com 4. Controlling the projector Contents Overview ............................... 4.5 ........................4.5 Controlling the projector ........................4.6 Input modes and settings ........................4.6 Input mode detection ......................4.6 Mode library and mode history ..........................4.7 Input presets Indicators ..............................

  • Page 54: Controlling The Projector

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Using the menus ..........................
  • Page 55 All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC Setup menu ............................
  • Page 56 ..........................4.54 ........................4.54 Projector Information .......................... 4.54 Source Information ......................4.55 Digital Projection Information Controlling the projector when Input 8 is being used ............. 4.56 ..................4.56 Differences between Input 8 and Inputs 1-7 ..................... 4.56 Input and processing architecture ....................
  • Page 57 All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 58: Input Modes And Settings

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 59: Input Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 60: Indicators

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 61: The Control Panel

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 62: The Remote Control

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 63: Using The Control Keys

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 64: Auto-Detect Input Mode

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 65: Input Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 66: Red, Green And Blue

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 67: Magnify And Pan

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 68: Using The Menus

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...
  • Page 69 All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC Notes •...

  • Page 70: Menu Controls

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 71: Input Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 72: Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 73: Save Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 74: Delete Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 75: Picture Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 76: Gamma Correction

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 77: Aspect Ratio

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 78: Geometry Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 79: User Horizontal Aspect Ratio

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 80: Resolution

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 81: Blanking

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 82: Colour Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 83: Colour Mode

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 84: Trim

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 85: Setup Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 86: Projector

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 87: Keystone

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 88: Test Pattern

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 89: Fastframe

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 90: Global Colourimetry

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 91: Colour Mode

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 92: Lamp

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 93: Lamp Power

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 94: On Screen Display

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 95: Password

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 96: Communication

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 97: Network

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 98: Dhcp

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 99: Subnet Mask

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 100: Gateway Mask

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 101: Wifi Channel

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 102: 3D Enable

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 103: Frame Dominance

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 104: Sync Source

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 105: Restore Defaults

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC...

  • Page 106: Information Menu

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

  • Page 107: Digital Projection Information

    4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC Information menu continued Notes Digital Projection Information • Press to select Digital Projection. When using the menus, press to hide or Press to see the DP Information screen. reveal the On-Screen-Display. Information Menu DP Contact Information Rev B.

  • Page 108: Controlling The Projector When Input 8 Is Being Used

    All manuals and user guides at all-guides.com 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Controlling the projector when Input 8 is being Notes used Input 8 and 3D may not be Differences between Input 8 and Inputs 1-7...

  • Page 109: Setting Up Input 8 Using The Userware

    All manuals and user guides at all-guides.com Digital Projection User Manual 4. Controlling the projector LIGHTNING 1080p, 1080p 3D/UC Notes Setting up Input 8 using the Userware It is recommended that when Input 8 is being used, the projector is controlled from a personal computer via a LAN connection, using the Userware Applet as described in the next section.
  • Page 110 All manuals and user guides at all-guides.com 4. Controlling the projector Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Page 4.58 Rev B. January 2010...

  • Page 111: Userware

    All manuals and user guides at all-guides.com 5. Userware Contents Introduction ............................5.3 ........................... 5.3 Applet version ............................ 5.3 Disconnect ............................. 5.3 Reconnect ........................... 5.4 Standalone version ............................ 5.4 Disconnect ............................. 5.4 Reconnect Show page ............................5.5 ............................5.5 On / Off ........................
  • Page 112 All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC MCGD page ............................

  • Page 113: Applet Version

    There are two versions of the Userware: the Applet version, stored on the projector software must be installed on and the Standalone version, supplied on disk or from the Digital Projection website. your browser. This software can be downloaded, free of charge Applet version from www.java.com.

  • Page 114: Standalone Version

    Notes • To install the Userware, simply copy the file (from the CD, or downloaded from the Digital Projection website), to a folder on the computer. To use the Titan Userware the • Double click on the filename to start the software.

  • Page 115: Show Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Show page Notes The Show page is the first to display when the browser connects to the projector.

  • Page 116: Input Presets

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Show page continued...

  • Page 117: Orientation

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Show page continued...

  • Page 118: Test Pattern

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Show page continued...

  • Page 119: Lens Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Lens page Notes To see the Lens page, click on Lens.

  • Page 120: Image Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Image page Notes •...

  • Page 121: Colour Space

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Image page continued...

  • Page 122: Gamma

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Image page continued...

  • Page 123: Screen Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Screen page Notes •...

  • Page 124: Mcgd Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC MCGD page...

  • Page 125: Mcgd Values

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC MCGD page continued Notes •...

  • Page 126: Tcgd Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC TCGD page...

  • Page 127: Update Graph

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC TCGD page continued...

  • Page 128: 3D Enable

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC 3D page Notes •...

  • Page 129: Global Colour Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Global Colour page Notes •...

  • Page 130: Modal Colour Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Modal Colour page Notes •...

  • Page 131: Lift And Gain Sliders

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Modal Colour page continued...

  • Page 132: Information Page

    To see the Information page, click on Info. Projector Information • Click on Projector Information to see the following information about the projector and the Userware: Digital Projection • Click on Digital Projection to see the following contact information: Page 5.22 Rev B. January 2010...

  • Page 133: Fastframe Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC FastFrame page Notes •...

  • Page 134: System Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC System page Notes •...

  • Page 135: Discover Page

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. Digital Projection User Manual 5. Userware LIGHTNING 1080p, 1080p 3D/UC Discover page Notes •...

  • Page 136: Refresh

    All manuals and user guides at all-guides.com For important information about how to control the projector when Input 8 is being used, see the final pages of Section 4. 5. Userware Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Refresh Notes •...

  • Page 137: Maintenance

    All manuals and user guides at all-guides.com 6. Maintenance Contents Changing the lamp ..........................6.2 ......................6.3 Reading the lamp-hours meter ....................... 6.4 Removing the lamp module ......................6.4 Fitting the new lamp module Changing the filter ..........................6.5 Cleaning ..............................

  • Page 138: Changing The Lamp

    Give the catch half a turn anti-clockwise with a flat bladed tool, to release the catch. There are no user-serviceable parts inside the lamp module. The whole module should be replaced and returned to Digital Projection for re- furbishment. Door catch A tool is required to release the door catch.

  • Page 139: Reading The Lamp-Hours Meter

    All manuals and user guides at all-guides.com Digital Projection User Manual 6. Maintenance LIGHTNING 1080p, 1080p 3D/UC Reading the lamp-hours meter Notes There are two types of Lamp-hours meter, depending on the lamp module that has been fitted, as shown below.

  • Page 140: Removing The Lamp Module

    All manuals and user guides at all-guides.com 6. Maintenance Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Removing the lamp module Notes • Press POWER on the remote control or keypad, and hold for about 3 seconds, until the power indicator on the control panel shows amber.

  • Page 141: Changing The Filter

    All manuals and user guides at all-guides.com Digital Projection User Manual 6. Maintenance LIGHTNING 1080p, 1080p 3D/UC Changing the filter Notes • Press POWER on the remote control or keypad, and hold for about 3 seconds, until the power indicator on the control panel shows amber.

  • Page 142: Cleaning

    All manuals and user guides at all-guides.com 6. Maintenance Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Cleaning Notes Turn the projector off before cleaning. Always allow the lamp to cool for 5 minutes before: Projector - disconnecting the power - moving the projector Clean the cabinet periodically with a damp cloth.

  • Page 143: Appendix

    All manuals and user guides at all-guides.com 7. Appendix Contents Troubleshooting ..........................7.2 Specifications ............................7.4 ............................ 7.4 Part numbers ............................. 7.4 Optical ............................7.5 Electrical ............................7.5 Physical ............................7.6 Lens Data Dimensions ............................7.8 Input modes supported ........................7.9 Input connections ..........................

  • Page 144: Troubleshooting

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Troubleshooting Problem Possible solutions The projector will not power up. Check that the mains plug is plugged in and that the mains supply is switched on.
  • Page 145 Check that the address setting on the remote control is set either to zero, or to the same as the projector. See section 4. Controlling the projector, Communication menu In the event that this troubleshooting guide has not solved the problem, then contact your Digital Projection dealer or service centre. Rev B. January 2010 Page 7.3...

  • Page 146: Specifications

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Specifications Part numbers Projector China Rest of World 30-1080p 108-659 108-661 108-660 40-1080p 108-662 108-664 108-663 40-1080p 3D 109-350 109-352 109-351 40-1080p Ultra Contrast...

  • Page 147: Electrical

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Lamp power 30-1080p: 3.0kW 40-1080p, 45-1080p: 3.6kW Lamp life (typical) 30-1080p: 750 hours per lamp 40-1080p, 45-1080p: 500 hours per lamp Brightness 30-1080p: 15,000 ANSI lumens (±10%)

  • Page 148: Lens Data

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Lens Data Optical 105-607 ~ 107-195 105-608 105-609 109-236 ~ 109-359 105-610 ~ 107-196 0.67 : 1 fixed 1.12 : 1 fixed 1.12 : 1 fixed 1.16 - 1.49 :1 zoom...
  • Page 149 All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Optical 105-611 ~ 107-197 105-612 ~ 107-198 105-613 ~ 107-199 109-235 ~ 109-358 throw ratio 1.87 - 2.56 : 1 zoom 2.56 - 4.16 : 1 zoom 4.16 - 6.96 : 1 zoom 6.92 - 10.36 : 1 zoom full DMD image width 1.87 : 1...

  • Page 150: Dimensions

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Dimensions All dimensions in mm Page 7.8 Rev B. January 2010...

  • Page 151: Input Modes Supported

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Input modes supported RGB colourspace only Signal Resolution Refresh Total Horizontal Rate number Frequency ( Hz ) of lines (kHz) SDTV 480i 720 x 480 15.73...

  • Page 152: Input Connections

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Input connections Notes 1. RGB1 input 5 x 75 ohm BNC Used for computer, progressive video and analog HD video. RGsB RGBS RGBHV...

  • Page 153: Dvi-D Single Input

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC 3. DVI-D Single input Notes 24 way D-type connector TMDS Data 2- pin view of female connector TMDS Data 2+ TMDS Data 2 Shield...

  • Page 154: Sdi Input

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC 4. SDI input Notes 1 x 75 ohm BNC SMPTE 292 / HD-SDI signals are very high speed digital signals which require better quality coaxial cable than conventional analogue video. The data rate is 1.5 Gigabits per second.

  • Page 155: Dvi-D Single/Dual/Twin Input

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC 8. DVI-D Single/Dual/Twin input Notes 24 way D-type connector TMDS Data 2- For important information about pin view of female connector how to control the projector...

  • Page 156: Control Connections

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Control connections Notes Wired Remote control connection Note that plugging in the remote 3.5mm mini jack Sleeve control cable will disable the infra-red.

  • Page 157: 3D Sync

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC 3D sync Notes unused Sync OUT 3D Sync OUT is switched pin view of female connector between 0V and 3.3V 3D may not be present on some...

  • Page 158: Remote Communications Protocol

    Operation commands and Enhanced commands, contact Message Structure Digital Projection at one of the addresses printed near the front The data type for all data is raw hexadecimal, and all data larger than 1 byte is of this manual, and ask for a formatted little endian i.e.

  • Page 159: Operation Messages

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Operation Messages Operation messages are constructed using the following format: Header Type Size Oper’n Operation Reserved type 2 bytes 1 byte 2 bytes...

  • Page 160: Enhanced Messages

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Enhanced Messages Enhanced messages are constructed using the following format: Header Type Size Data type Data length (n) 2 bytes 1 byte 2 bytes...

  • Page 161: Operation Command Examples

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Operation Command examples Notes All operation commands are located at bytes 9 &10. All values are located at bytes 17 & 18 unless otherwise indicated...

  • Page 162: Source (3702)

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Source (3702) Notes Projector source select Value Spaces in example messages are for visual clarity and should RGB1 not be sent as part of the message.

  • Page 163: Brightness (E502)

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Brightness (E502) Notes Adjusts Brightness -128 — +127 (00h - FFh) Range: Spaces in example messages are for visual clarity and should Centre (0):...

  • Page 164: Contrast (E602)

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Contrast (E602) Notes Adjusts Contrast -128 — +127 (00h - FFh) Range: Spaces in example messages are for visual clarity and should Centre (0):...

  • Page 165: Shutter (Cf02)

    All manuals and user guides at all-guides.com Digital Projection User Manual 7. Appendix LIGHTNING 1080p, 1080p 3D/UC Shutter (CF02) Notes Closes and opens shutter Target Value Spaces in example messages (Set) (Get) are for visual clarity and should not be sent as part of the Shutter Close message.

  • Page 166: Quick Reference Chart

    All manuals and user guides at all-guides.com 7. Appendix Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC Quick Reference chart Page 7.24 Rev B. January 2010...
  • Page 167 All manuals and user guides at all-guides.com Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...
  • Page 168 All manuals and user guides at all-guides.com Digital Projection User Manual LIGHTNING 1080p, 1080p 3D/UC...

This manual is also suitable for:

Lighting 45-1080pLighting 40-1080p ultra contrastLighting 45-1080p ultra contractLighting 40-1080p 3dLighting 45-1080p 3dLighting 40-1080p 3d-ultra contrast ... Show all

Table of Contents
