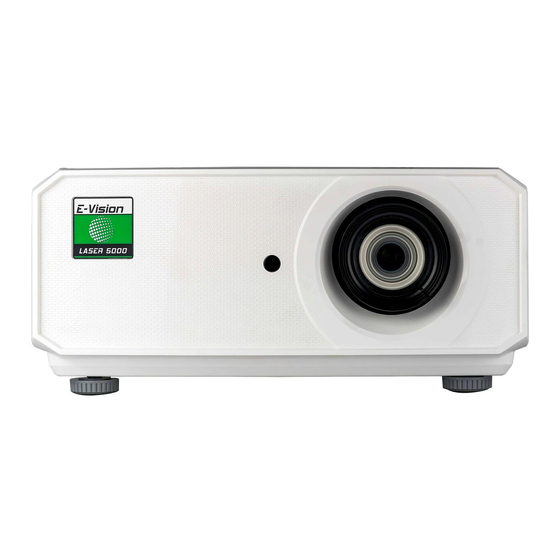

- Page 1 E-Vision Laser 5000 Series Important Information Super High Brightness Digital Video Projector Rev A January 2018 119-518A...
-
Page 2: Digital Projection
Important Information Digital Projection E-Vision Laser 5000 Series Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2011室(100029) Rm A2011 Registered in England No. 2207264 ShaoYaoJu 101 North Lane Registered Office: as above... -
Page 3: Table Of Contents
Digital Projection E-Vision Laser 5000 Series Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................5 Laser precautions ..........................5 Product labels ............................6 Location of laser aperture ......................7 Interlock switches ..........................7... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection E-Vision Laser 5000 Series Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed. -
Page 5: Electrical And Physical Specifications
Digital Projection E-Vision Laser 5000 Series Important Information Electrical and physical specifications Main Voltage 100-240 VAC 50/60Hz single phase Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Operating Humidity 10% to 85% non-condensing Weight 10.7 kg (23.6 lb) without lens... -
Page 6: Laser Precautions
Important Information Digital Projection E-Vision Laser 5000 Series Laser precautions Projector CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects. - Page 7 Digital Projection E-Vision Laser 5000 Series Important Information Remote Control - Laser Pointer CLASS 2 LASER PRODUCT This Laser Product is designated as Class 2 during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.
-
Page 8: Product Labels
Important Information Digital Projection E-Vision Laser 5000 Series Product labels DLP Projector / Projecteur / 數字投影機) Moel Name / Modèle(型號 / 型號): E-Vision Laser 5000 WUXGA INPUT / Entrée(輸入 / 輸入): 100-240V 50/60Hz 5.0A This device complies with Part 15 of the FCC rules, Operation is subject to... -
Page 9: Location Of Laser Aperture
Digital Projection E-Vision Laser 5000 Series Important Information Location of laser aperture The laser aperture is located as indicated below. Be careful not to expose the eye to direct laser light. Laser aperture Interlock switches Three interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated. -
Page 10: General Precautions
Important Information Digital Projection E-Vision Laser 5000 Series General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 11: Installation Precautions
Digital Projection E-Vision Laser 5000 Series Important Information Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. - Page 12 Important Information Digital Projection E-Vision Laser 5000 Series Place the projector in a dry area away from sources of dust, moisture, steam, smoke, sunlight or heat. The projector is heavy. Use safe handling techniques when lifting the projector. Do not drop or knock the projector.
-
Page 13: Operation And Configuration Precautions
Digital Projection E-Vision Laser 5000 Series Important Information Operation and configuration precautions Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector. -
Page 14: Compliance With International Standards
Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised. -
Page 15: Basic Operation Instructions
Digital Projection E-Vision Laser 5000 Series Important Information Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 16: Connecting The Power Supply
Important Information Digital Projection E-Vision Laser 5000 Series Connecting the power supply Firmly push the mains connector into the AC IN socket as shown in the illustration. Use only the power cable provided. Ensure that the power outlet includes a ground... -
Page 17: Selecting An Input Signal
Digital Projection E-Vision Laser 5000 Series Important Information Selecting an input signal If more than one input source is connected, select the input you want to display. Press the Source button on the control panel and use the ▼ arrow buttons to scroll through the list of UP ▲... -
Page 18: Adjusting The Lens
Important Information Digital Projection E-Vision Laser 5000 Series Adjusting the lens Lens shift The lens shift function can be used to adjust the position of the projected image either horizontally or vertically. Use the vertical and horizontal lens shift knobs to move the image across the width or height of the screen. -
Page 19: Control Panel Reference
Digital Projection E-Vision Laser 5000 Series Important Information Control Panel Reference POWER MENU Opens and exits OSD menus. Keystone LEFT Navigates and changes settings in the OSD. Adjusts Horizontal Keystone. Keystone UP Navigates and changes settings in the OSD. Adjusts Vertical Keystone. -
Page 20: Projector Indicators
Important Information Digital Projection E-Vision Laser 5000 Series Projector indicators POWER Power LED Displays power on/off sequence status. Light source LED Displays light source status. Temp LED Displays thermal status. Page 20 Rev A January 2018... -
Page 21: Remote Control Reference
Digital Projection E-Vision Laser 5000 Series Important Information Remote Control Reference Power ON Displays the PC source selection. HDMI Displays the HDMI 1 / HDMI 2 / DVI source selection (toggle). This button is not used in this configuration. Power OFF Turns the projector off. - Page 22 Important Information Digital Projection E-Vision Laser 5000 Series Remote Control reference continued... Keystone UP Navigates and changes settings in the OSD. Adjusts Vertical Keystone. MENU Opens the OSD. Keystone LEFT Navigates and changes settings in the OSD. Adjusts Horizontal Keystone.
- Page 23 Digital Projection E-Vision Laser 5000 Series Important Information Remote Control reference continued... Auto / ID input 0 Automatically adjusts frequency, phase and position. Use with to set the remote ID to Source / ID Source / ID Selects the next input source.
