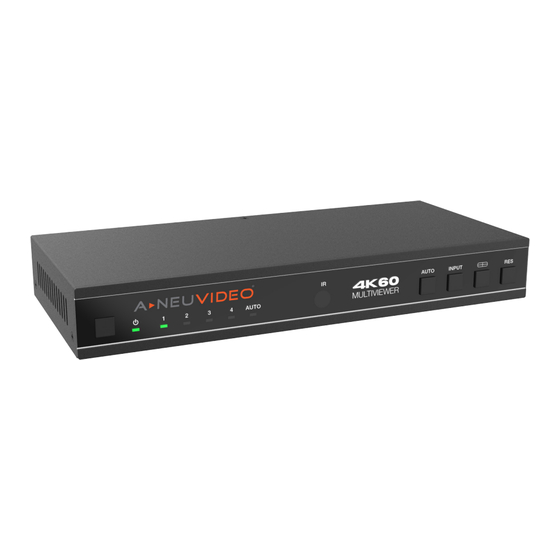

- Page 1 ANI-PiP-41UHD 4x1 4K60 UHD Quad/PiP/PoP Multiviewer Seamless Video Switcher AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
APPLICATION EXAMPLE ....................20 INTRODUCTION The ANI-PiP-41UHD 4x1 4K60 Multiviewer Seamless UHD Video Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. -
Page 5: Features
FEATURES This unit supports customized PiP image size and location (via RS-232). Changes are stored in non-volatile ram and will be retain during a power cycle. See Multiview section in the users guide for a description. • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant •... -
Page 6: Specifications
SPECIFICATIONS • Input Ports: (4) HDMI IN [Type A, 19-pin female] • Output Ports: HDMI OUT [Type A, 19-pin female] • L/R OUTPUT [RCA] • OPTICAL OUTPUT (TosLink) • Control Ports: • RS-232 [3pin-3.81mm phoenix connector] • IR EXT [3.5mm Stereo Mini-jack] •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Front Panel q POWER BUTTON: Press this button to power on the device. Hold down this button for 1 second to enter the standby mode. w POWER LED: The Power LED will light green when the product is powered on, and red when on standby. - Page 8 OPERATION CONTROLS & FUNCTIONS BACK PANEL q L/R PORT: PCM2.0 Analog audio output port. w OPTICAL PORT: Optical fiber digital audio output port. e HDMI OUTPUT PORT: HDMI output port, connected to a HDMI display device such as a TV or Monitor with a HDMI cable. r HD 1-4 INPUT PORTS: HDMI signal input ports, connected to HDMI source devices such as a DVD or Set-top box with a HDMI cable.
-
Page 9: Remote Control
Remote Control q POWER ON OR STANDBY: Press this button to power on the switcher or set it to standby mode. w HD 1/2/3/4: Press these buttons to select input source on single screen display mode, and the corresponding input LED on the front panel will light in green. -
Page 10: Edid Settings / Video & Audio
EDID Settings / Video & Audio EDID Settings User can select following EDID modes via RS-232 command or OSD menu navigation. EDID Mode EDID Mode 4K60-2.0CH 1920x1200-2.0CH 4K60-5.1CH 1680x1050-2.0CH 4K60-7.1CH 1600x1200-2.0CH 4K30-2.0CH 1440x900-2.0CH 4K30-5.1CH 1360x768-2.0CH 4K30-7.1CH 1280x1024-2.0CH 1080P-2.0CH 1024x768-2.0CH 1080P-5.1CH 720P-2.0CH 1080P-7.1CH AUTO... -
Page 11: Multiview
Multiview window distributions are as following: Users can select Multiview modes via RS-232 commands or OSD menu navigation. * The ANI-PIP-41UHD switcher supports customized PIP size and location via RS-232 commands. The command format is “s PIP Hstart Vstart Hsize Vsize!”... -
Page 12: Osd Menu Navigation
OSD Menu Na vigation (1) A total of seven buttons on the IR Remote are used for OSD menu navigation, including MENU, EXIT, UP, DOWN, LEFT, RIGHT, OK. Menu contents are as follows: 4096x2160p 60Hz 4096x2160p 50Hz 3840x2160p 60Hz 3840x2160p 50Hz 3840x2160p 30Hz 3840x2160p 25Hz 1920x1200p60Hz RB... - Page 13 OSD Menu Na vigation MODE 1, 2 3xWIN Aspect Full, 16:9 Win1 Select HDMI1, HDMI2, HDMI3, HDMI4 Multiview Win2 Select HDMI1, HDMI2, HDMI3, HDMI4 4xWIN Win3 Select HDMI1, HDMI2, HDMI3, HDMI4 MODE 1, 2 Aspect Full, 16:9 WIN1, HDMI1, HDMI2, HDMI3, Audio Select WIN1 HDMI4...
-
Page 14: Rs-232 Commands
RS-232 CommandS The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 15 RS-232 CommandS Command Function Example Feedback Default Setting Code Description Output Setting s output Set Output Resolution s output res 3! out resolution: 3840x2160p60 res x! (x=1~14) 3840x2160p60 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, 5. 3840x2160p30, 6. 3840x2160p25, 7.
- Page 16 RS-232 CommandS Command Function Example Feedback Default Setting Code Description EDID Setting s input Set HDMI input EDID s input EDID 1! input EDID: 4K2K60_444,Stereo EDID x! mode (x=18) 4K2K60_444, Stereo Audio 2.0 1. 4K2K60_444, Stereo Audio 2.0 Audio 2.0 2.
- Page 17 RS-232 CommandS Command Function Example Feedback Default Setting Code Description Audio Setting s output Set output audio s output audio output audio: follow output audio: follow audio x! source(x=0~4) window 1 window 1 selected 0. follow window 1 selected source source selected source 1.
- Page 18 RS-232 CommandS Command Function Example Feedback Default Setting Code Description Single Screen Mode Setting s auto Enable/disable auto s auto switch 0! auto switch off auto switch off switch x! switch feature(x=0~1) 0. Disable auto switch 1. Enable auto switch r auto Get auto switch r auto switch!
- Page 19 RS-232 CommandS Command Function Example Feedback Default Setting Code Description Multi-viewer Mode Setting s multiview Set multi-viewer s multiview 1! single screen single screen display mode(x=1~5) 1. single screen 2. PIP 3. PBP 4. triple screen 5. quad screen r multiview! Get multi-viewer r multiview! single screen...
- Page 20 RS-232 CommandS Command Function Example Feedback Default Setting Code Description r PIP Get PIP window r PIP position! PIP on right top position! positon s PIP size x! Get PIP window size s PIP size 3! PIP size: large PIP size: large (x=1~4) 1.
- Page 21 RS-232 CommandS Command Function Example Feedback Default Setting Code Description s quad Set quad windows s quad aspect quad aspect: full screen quad aspect: full aspect x! display aspect ratio screen (x=1~2) 1. Full screen 2. 16:9 r quad Get quad windows r quad aspect! quad aspect: full screen aspect!
-
Page 22: Application Example
Application Example... - Page 23 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 24 Product. The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein.
