ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench
Note: If a part is not in the hardware kit, check to see if it has been preattached.

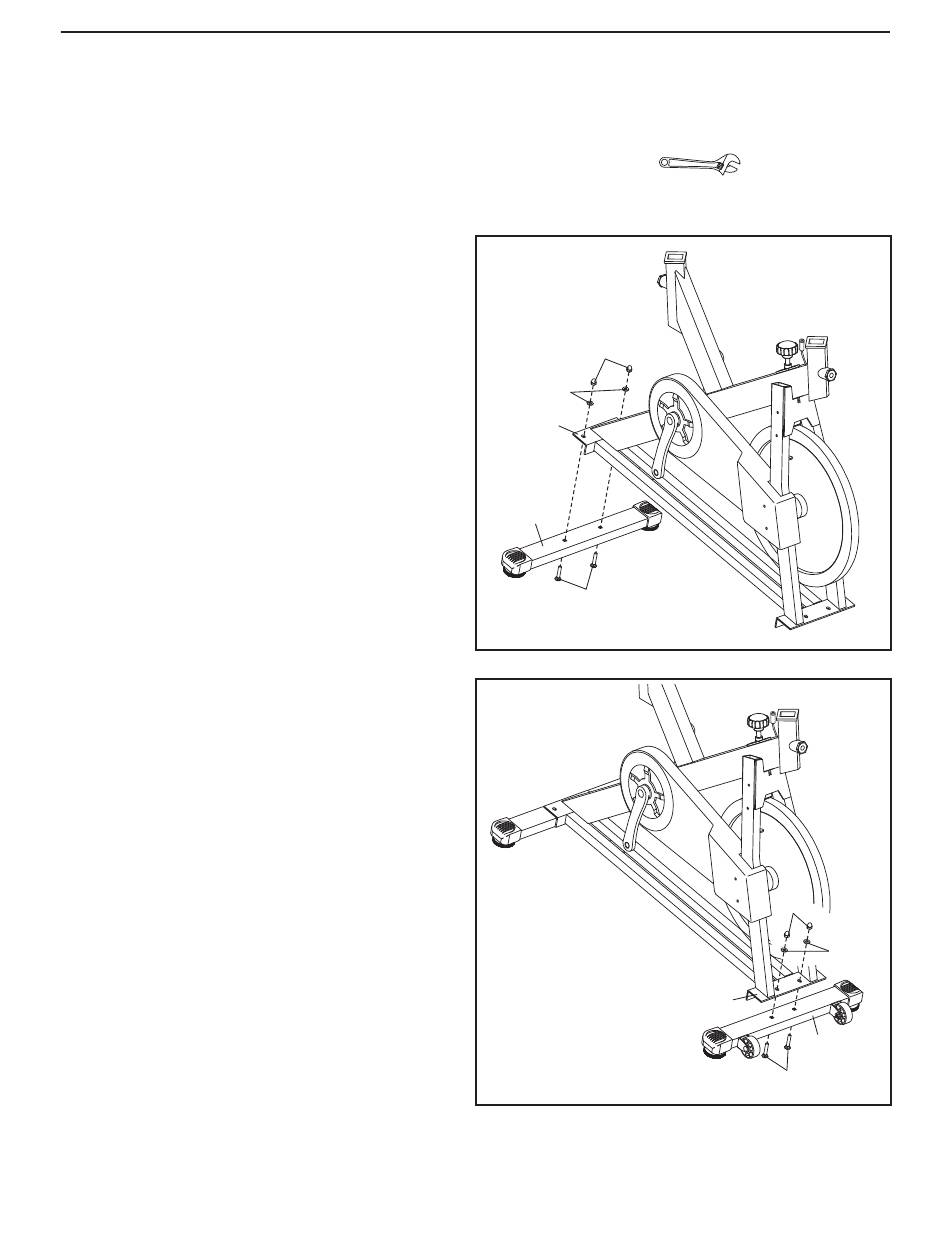

1. Attach the Rear Stabilizer (10) to the Frame (2)
with two M8 x 45mm Carriage Bolts (52), two
M8 Split Washers (60), and two M8 Acorn Nuts
(65).
2. Attach the Front Stabilizer (3) to the Frame (2)
with two M8 x 45mm Carriage Bolts (52), two
M8 Split Washers (60), and two M8 Acorn Nuts
(65).
1
65
60
2
10
52
2
5
.
65
60
2
3
52
